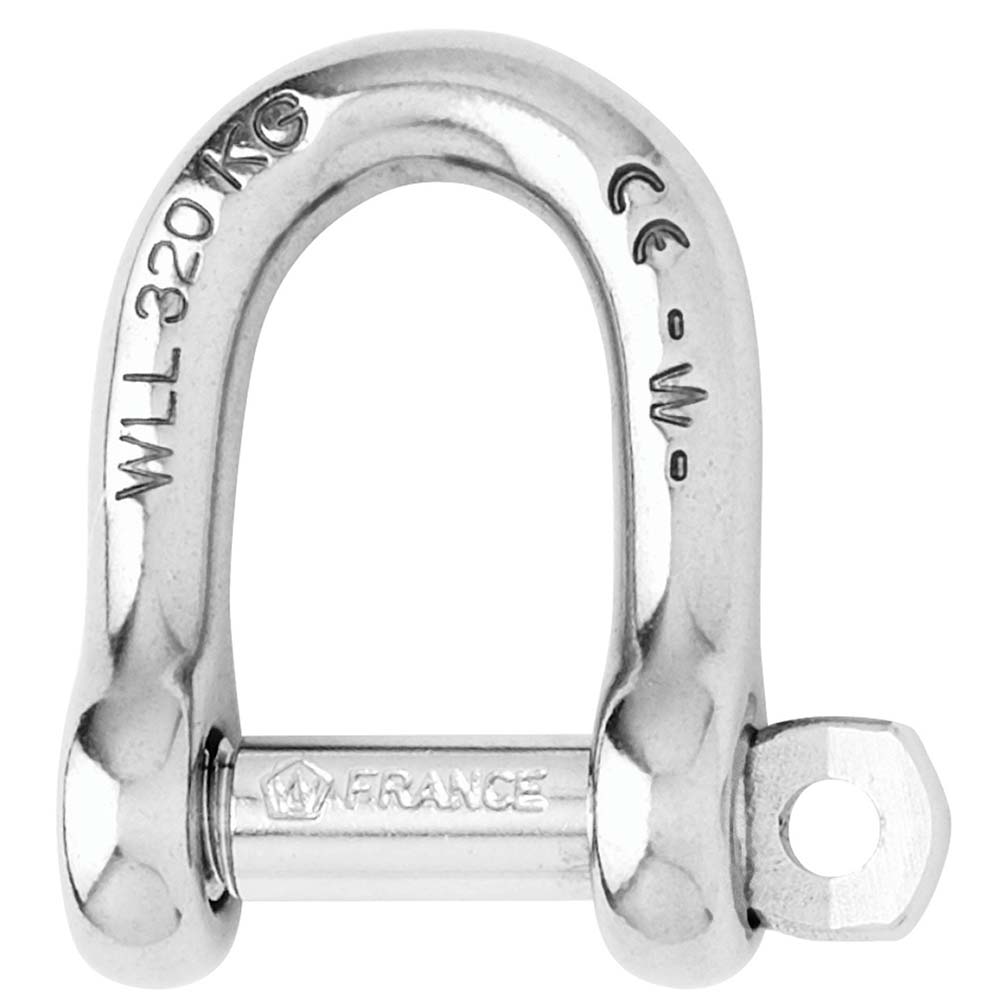

Self-Locking D Shackle - Diameter 10mm - 13/32"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 1890
  • Breaking load (lb) 9470
  • Weight (lb) 0.216

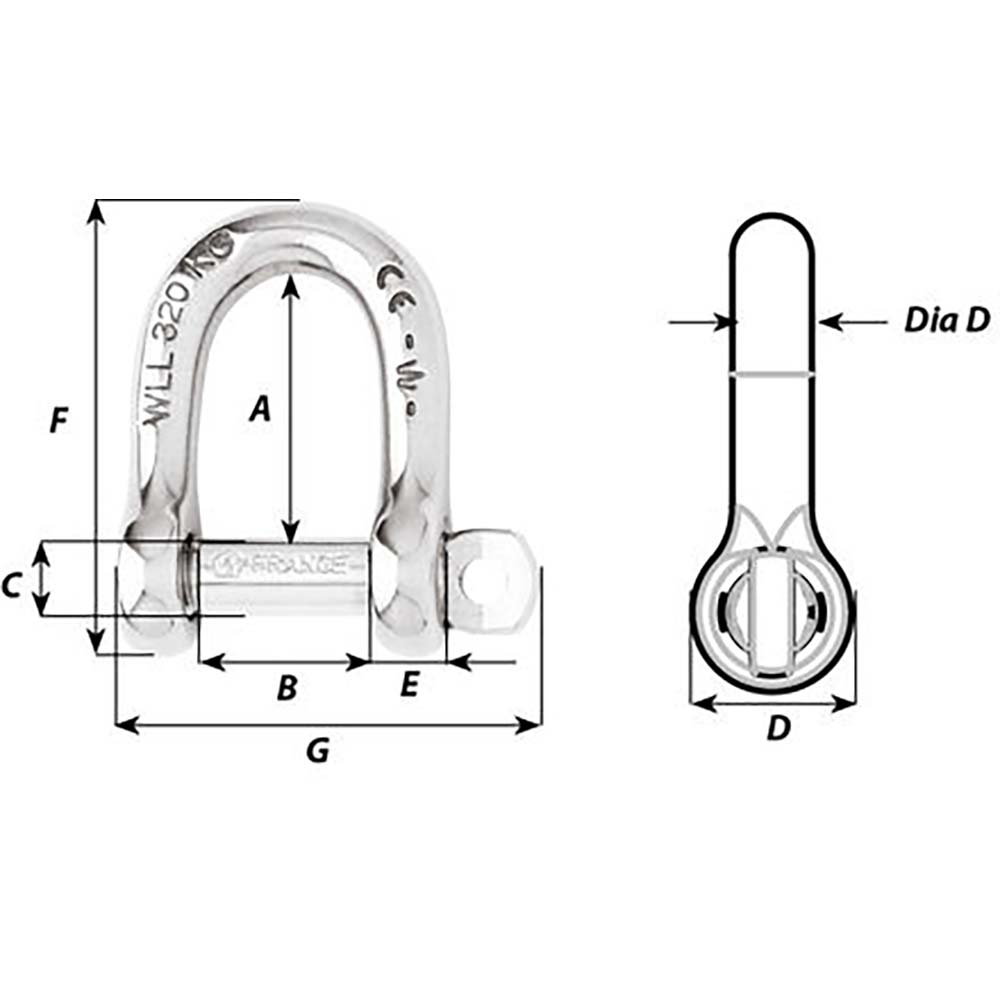

Dimensions (see 2nd image):

  • A (inch) 1-19/64"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 3/4"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • F (inch) 2-1/4"
  • G (inch) 2-3/64"
