Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]
Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]

Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]

Vendor: Wichard Marine
SKU: 93124
Availability: In stock
Product type: Shackles/Rings/Pins
$59.75
$70.31
$59.75
Subtotal: $59.75
Description
Description
x

Key Pin Shackle - Diameter 6mm - 1/4"

Features:

  • Key pin shackle forged in grade 316L stainless steel
  • Opening and closing is done simply by rotating the pin half a turn
  • No risk to lose the pin as it remains attached
  • Outstanding working and breaking loads

Applications:

  • Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1140
  • Breaking load (lb) 3300
  • Weight (lb) 0.106

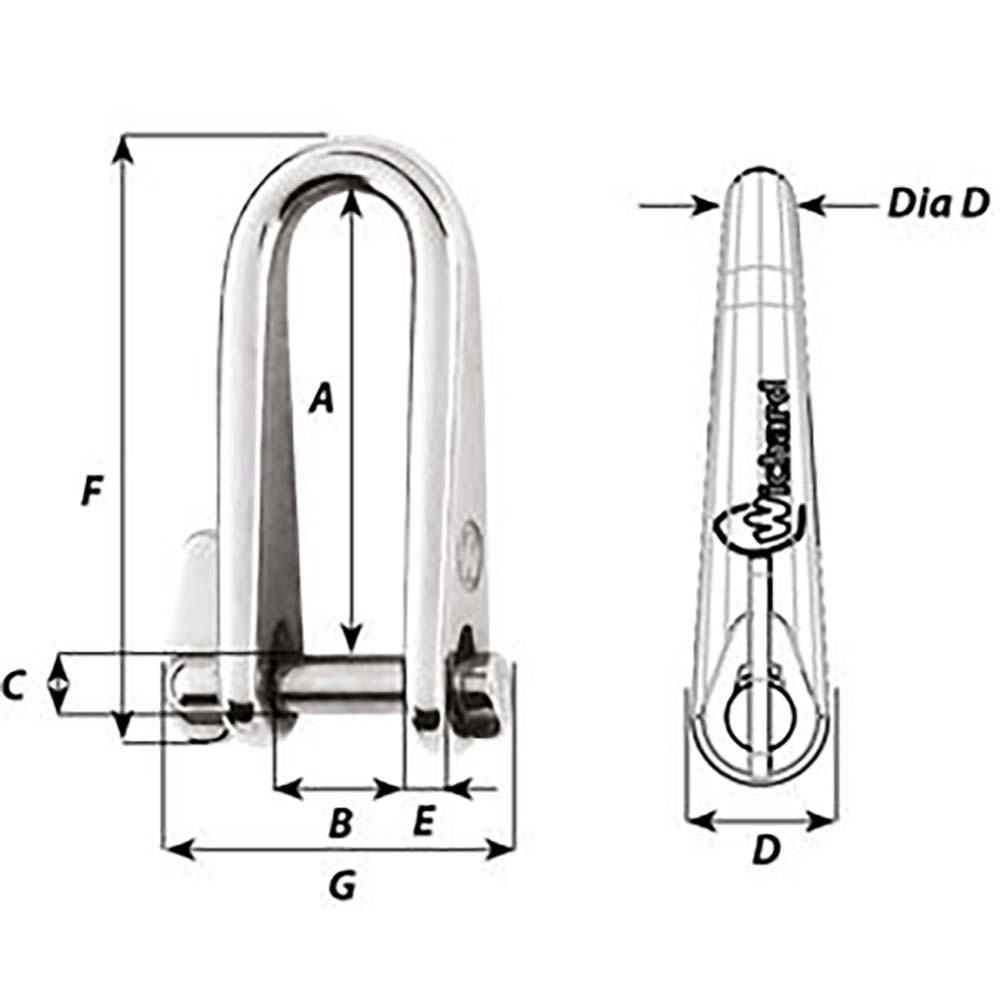

Dimensions (see 2nd image):

  • A (inch) 1-49/64"
  • B (inch) 5/8"
  • C (inch) 15/64"
  • D (inch) 33/64"
  • D diameter (inch) 15/64"
  • E (inch) 5/32"
  • F (inch) 2-23/64"
  • G (inch) 1-29/64"
Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]

Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]

$70.31 $59.75
Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]
Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]

Wichard Key Pin Shackle - Diameter 6mm - 1/4" [1433W]

$70.31 $59.75
