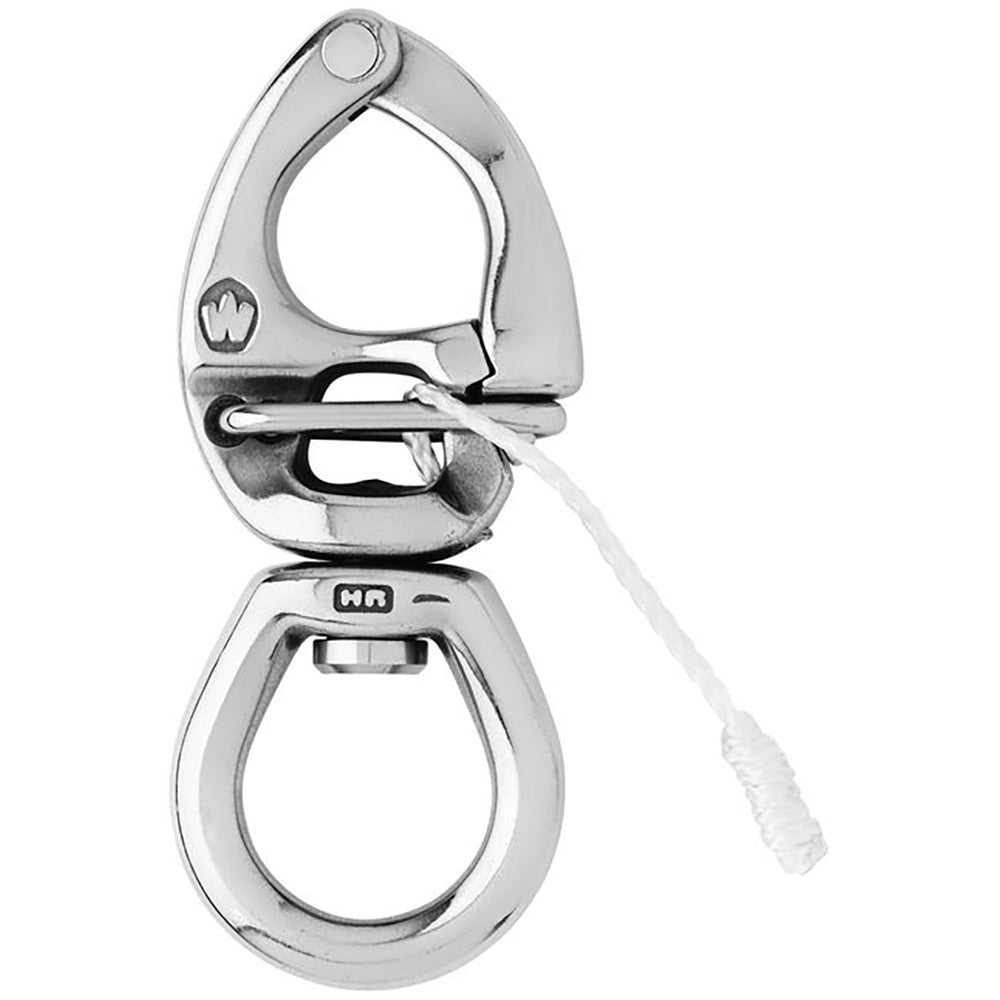

Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [2778W]
Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [2778W]

Wichard HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64" [2778W]

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"Features: HR forged (17.4 PH) quick-release...
Vendor: Wichard Marine
SKU: 97667
Availability: In stock
Product type: Shackles/Rings/Pins
$1,016.22
$1,195.56
$1,016.22
Subtotal: $1,016.22
Description
Description
x

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11460 / (kg) 5200
  • Breaking load: (lb) 17630 / (kg) 8000
  • Weight: (lb)1.362 / (g) 618

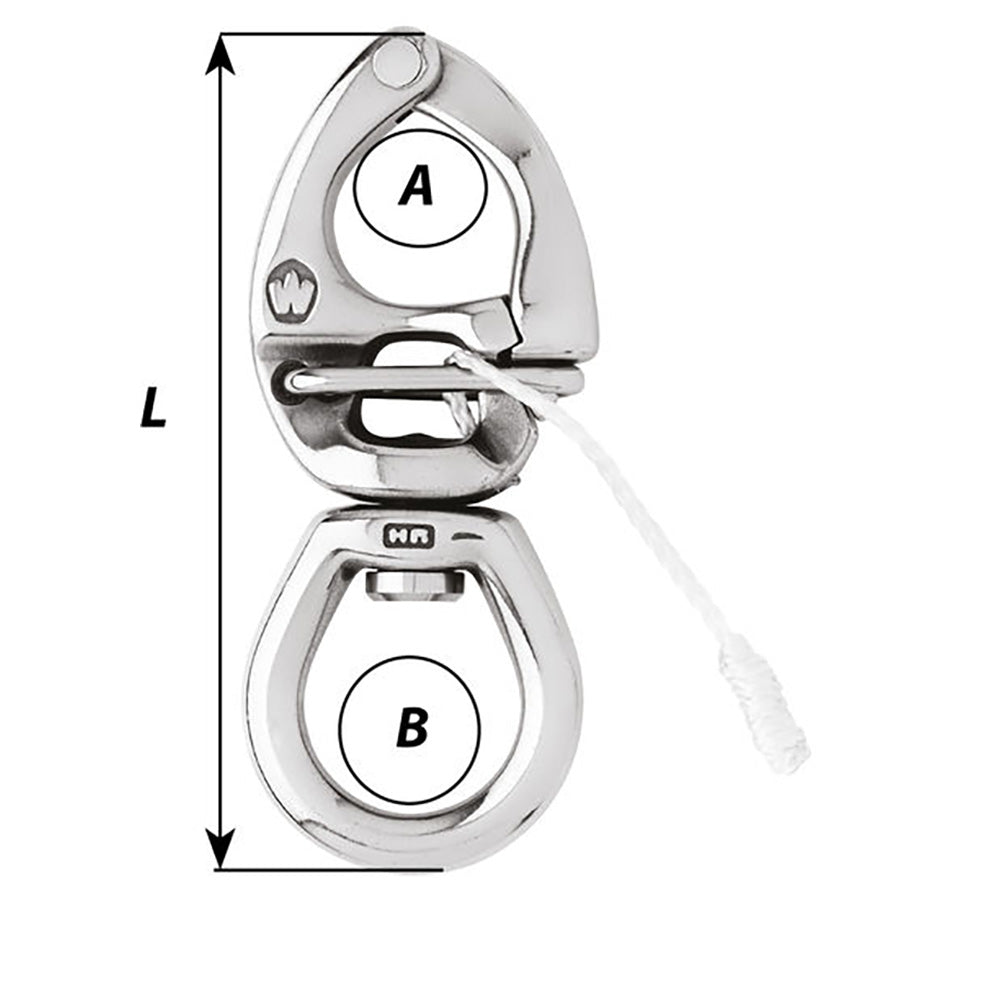

Dimensions:

  • A: (inch) 1 11/32" / (mm) 34
  • B: (inch) 1 39/64" / (mm) 41
  • Length: (inch) 6 19/64" / (mm) 160

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
