Veratron Water Temperature Sensor - 1/2"-14NPT Thread - 120C Temp Range [B001999]

Veratron Water Temperature Sensor - 1/2"-14NPT Thread - 120C Temp Range [B001999]

Water Temperature Sensor - 1/2"-14NPT Thread - 120°C Temp Range These resistive temperature sensors are built in...
Vendor: Veratron
SKU: 106070
Availability: Out Of Stock
Product type: Gauge Accessories
$32.10
$35.67
$32.10
Subtotal: $32.10
Description
Description
x

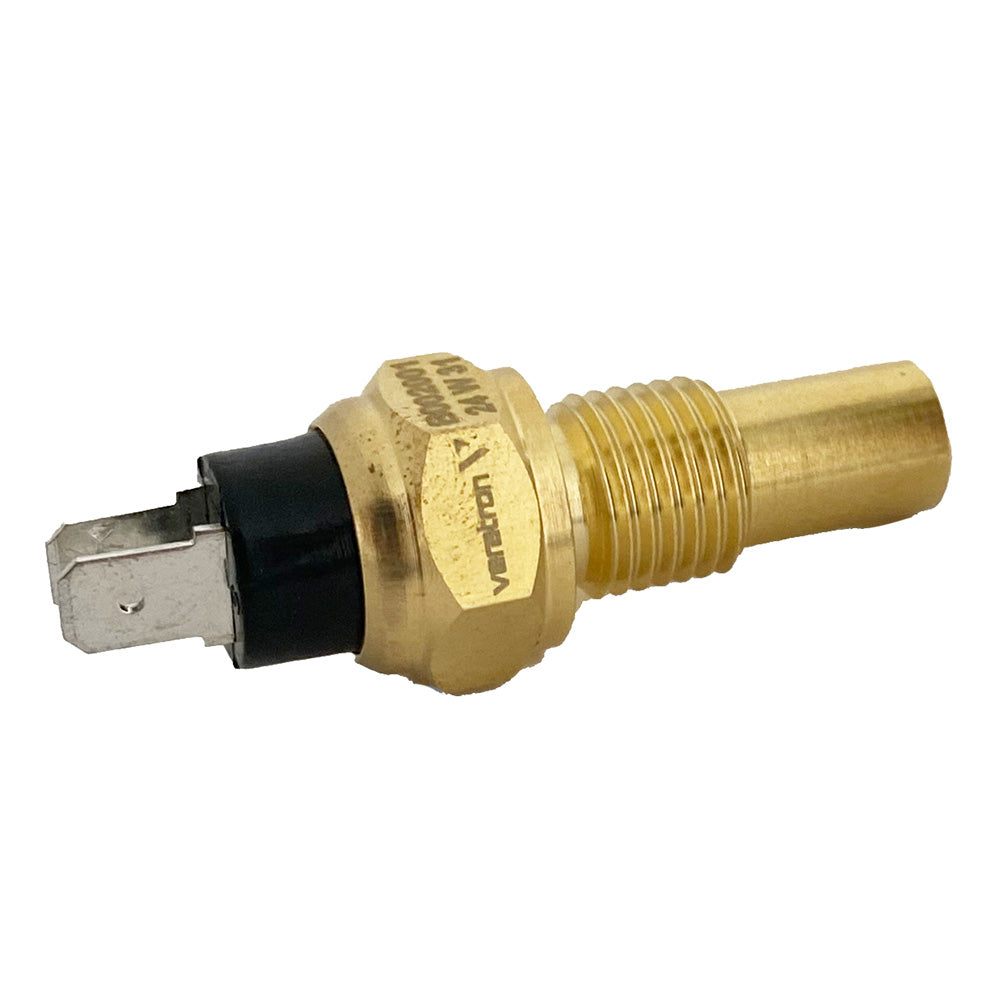

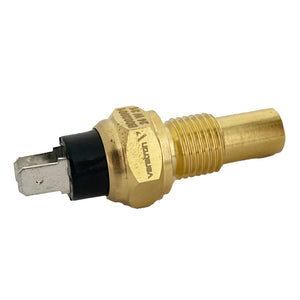

Water Temperature Sensor - 1/2"-14NPT Thread - 120°C Temp Range

These resistive temperature sensors are built in a housing of brass.

All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors.

The sensors can be applied in a wide field of applications.

Features:

  • Function - Oil temperature, coolant temperature
  • Length - 28.5mm (1-1/8")
  • Thread - 1/2"-14NPT
  • Calibration - 120°C
  • Measurement Range - 120°C
  • Output Signals - Resistive
  • IP67
  • Insulated ground pin

Quick Guide (pdf)
