Seaview PMA167M1 16in Mount Aft Rake Requires Plate

Seaview PMA167M1 16in Mount Aft Rake Requires Plate

The 16 in tall Seaview aft leaning mount is for Closed Dome Radars and small Satdomes (16...
Vendor: Seaview
SKU: wt-SVWPMA167M1
Availability: In stock
$443.31
$550.69
$443.31
Subtotal: $443.31
Description
Description
x

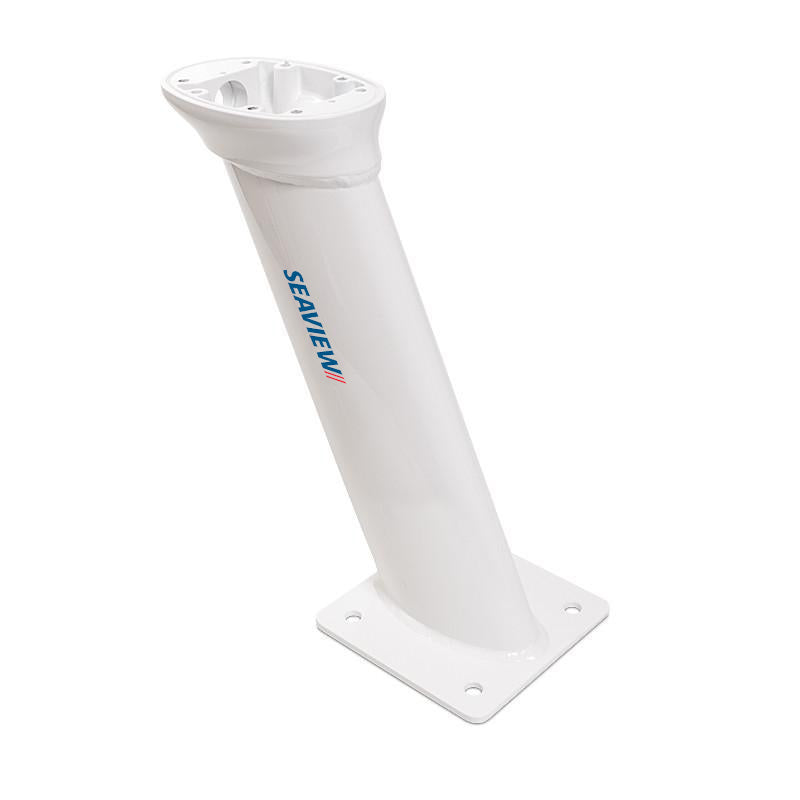

The 16 in tall Seaview aft leaning mount is for Closed Dome Radars and small Satdomes (16 in diameter or smaller). The oval hollow mast section allows for easy cable management. The small 7"x7" foot print design is a great solution for limited space. This modular mount is light bar compatible. This modular mount is light bar compatible. Numerous accessories are also available for this mount such as wedges, hinges, spreaders, lightbars and floodlights. *Please note that a Top Plate is required (sold separately)*

Features:
  • No more unwanted visible holes in the mounting plate!
  • Easy 3 step modular system.
  • Aft, forward, vertical and dual mount designs..
  • Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!
Closed Dome Radar, Small Satdomes (16 in or smaller) & Cameras
PMF-57-M1 5 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMF-107-M1 10 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-57-M1 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-107-M1 10 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-167-M1 16 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-247-M1 24 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-367-M1 36 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
AM5-M1 5 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required
AM12-M1 12 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required
AM18-M1 18 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required
Large Satdomes (18 in - 24 in)
PMA-57-M1 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
PMA-1210-M2 12 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required
PMA-1810-M2 18 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required
PMA-DM1-M2 12.5 in Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required
PMA-DM2-M2 22.5 in Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required
Step 2 Choose Top Plate
ADA-R1 Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide)
Satdome
ADA-S1 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
ADA-S2 Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24
ADA-S3 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
ADA-S4 Modular plate for ALL FB150 & FB250 domes
ADA-F1 Modular plate for FLIR M or Ray T series thermal cameras
Step 3
Choose Optional Accessories
LTB-R 1 1/4 in Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
Must pick a LTB TOP below
Must pick a LTB TOP below
Must pick a LTB TOP below
Must pick a LTB TOP below
Must pick a LTB TOP below
(LTB TOP) Standard 1-14 thread for GPS or similar
LTB-U1A (LTB TOP) Perko 1197 light with 7 feet of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
LTBA-7800 (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
PM-114LT-DLX Floodlight kit for 1 1/4 in. dia. LTB (includes 4 in X 6 in 55-watt 14V quartz halogen floodlight & hardware)
PM-U2A Light bar adapter to mount a light and 2 GPS (electronics not included)
PM-W4-7 4 degree wedge/ for 7x7 radar mount base plate
Hinge Adapters for base plate
PM-H8 Hinge adapter/ for 8x8 base plate/ (fits most 24 -36 in. tall Radar Mounts)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Seaview

UPC: 839662008983

Model Number: PMA167M1

Weight: 11
