Ronstan Series 40 High Load Exit Box f/Single Rope & Wire [RF41712]

Ronstan Series 40 High Load Exit Box f/Single Rope & Wire [RF41712]

Series 40 High Load Exit Box for Single Rope or WirePlain bearing sheaves are ideal for halyards...
Vendor: Ronstan
SKU: 55209
Availability: In stock
Product type: Hardware
$52.83
$62.15
$52.83
Subtotal: $52.83
Description
Description
x

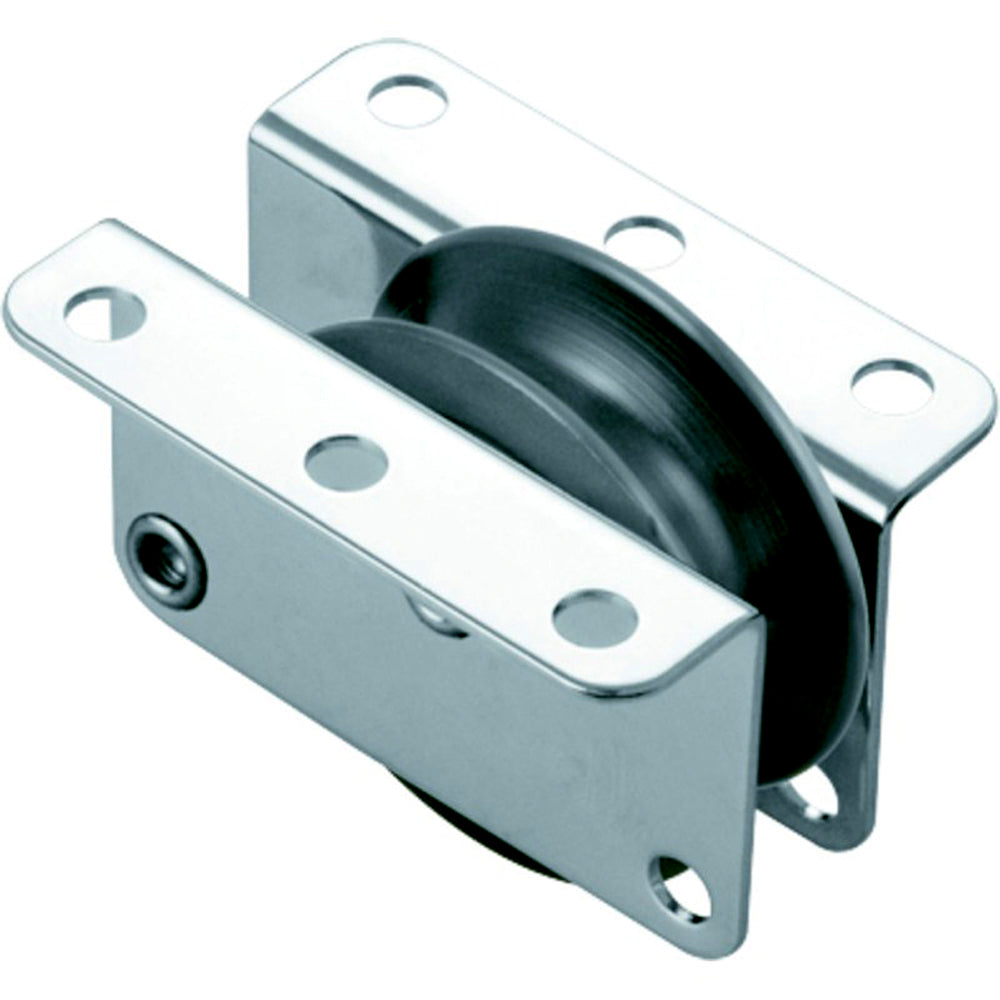

Series 40 High Load Exit Box for Single Rope or Wire

Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered

Applications:

  • Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing


Materials:
  • Nylatron&regl sheave
  • Grade 316 Stainless Steel cheeks


Specifications:
Sheave Ø: 40.0mm(1-9/16")
Max. Rope Ø:10.0mm(3/8")
Max. Cable Ø: 5.0mm(3/16")
B.L.: 1,000kg(2,200lbs)

Specifications:

  • Color: Stainless
  • Box Dimensions: 1"H x 2"W x 3"L WT: 0.16 lbs
  • UPC: 9316800335121
