RAM Mount Glare Shield Clamp Mount w/Short Double Socket Arm & Round Base Adapter w/AMPs Hole Pattern [RAM-B-177-202U]

RAM Glare Shield Clamp Mount w/Short Double Socket Arm & Round Base Adapter w/AMPs Hole Pattern

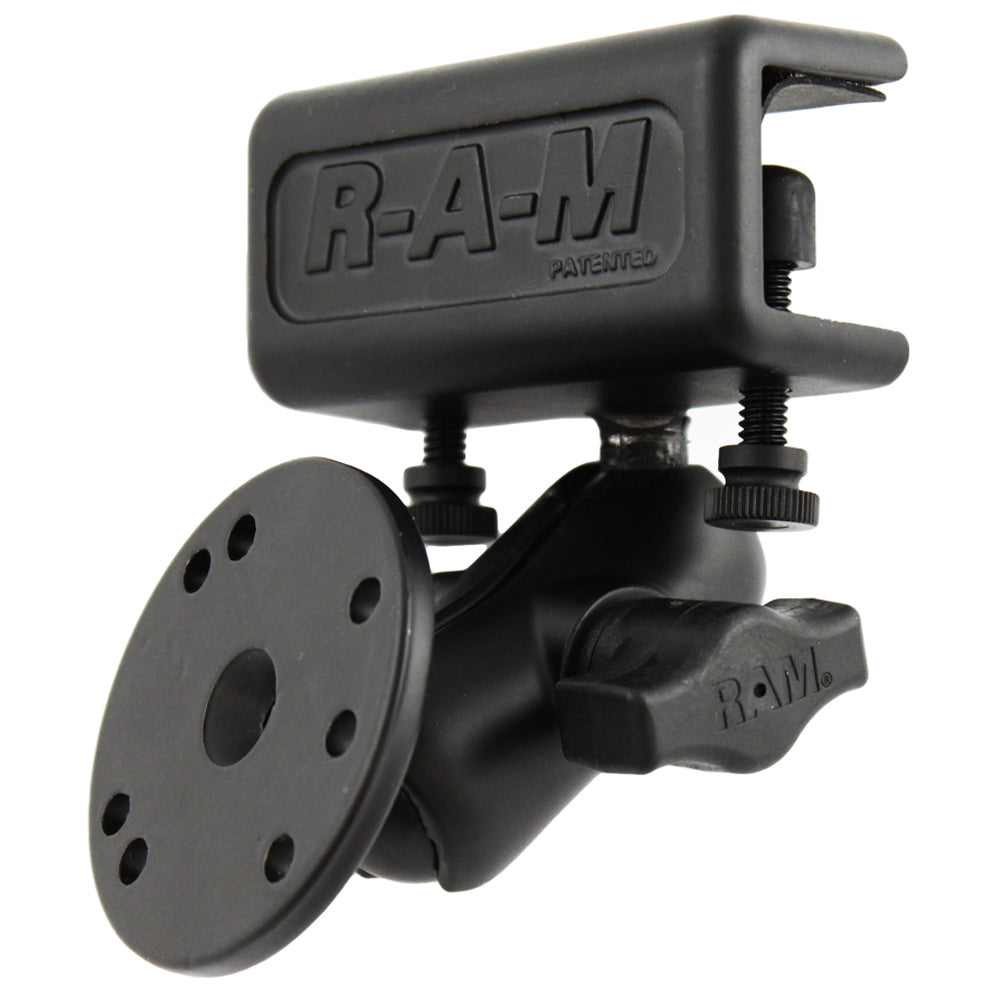

The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplance. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Mount will attach to flat surfaces with the following dimensions:
Min: 4.4mm / 0.17"
Max: 28.0mm / 1.12"

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.
