RAM Mount Base Adapter f/Raymarine Dragonfly [RAM-B-202U-RYM1]

Description:

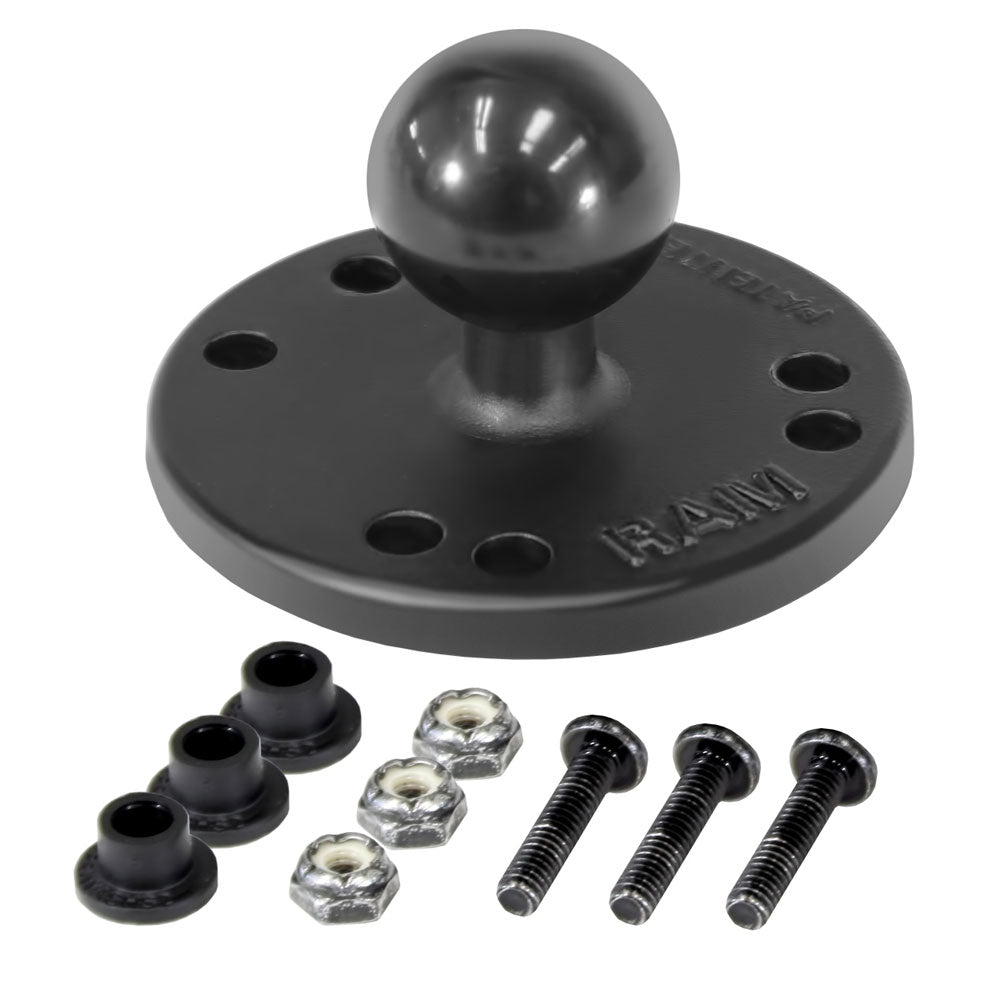

The RAM-B-202U-RYM1 consists of a 1" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-B-202U-RYM1 to the bottom of all Raymariner DragonflyT Sonar/GPS devices.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Compatible Arms/Mounts:
The RAM-B-202U-RYM1 is not a complete mounting solution. A double socket arm, that accepts 1" ball bases, is required to attach to the RAM-B-202U-RYM1.
