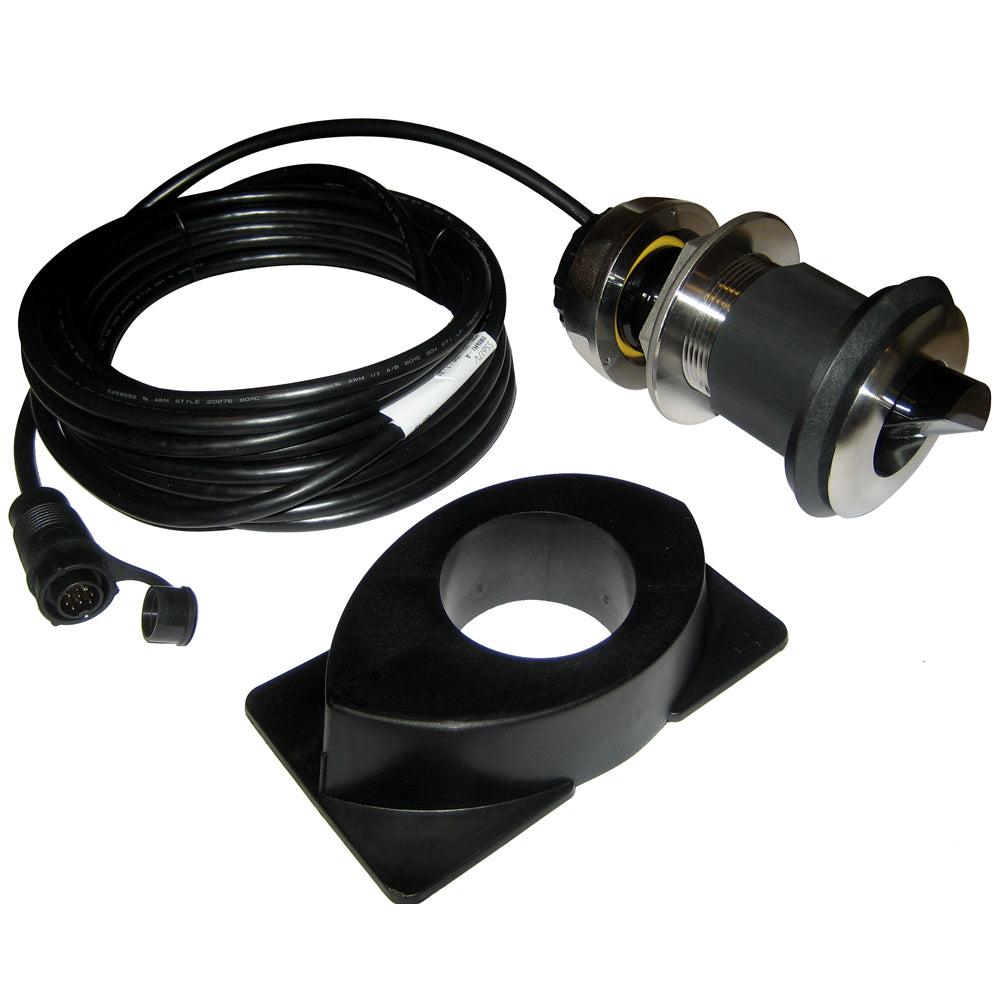

Navico ForwardScan Transducer Kit w/Sleeve & Plug [000-11674-001]

ForwardScan® Transducer Kit with Sleeve & Plug

Know what lies ahead, with ForwardScan. This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

The ForwardScan transducer is compatible with Simrad NSS evo2 and NSO evo2 MFD systems, and can be easily installed on almost any craft.

Features:

• Easy to use

• Forward-looking 2D sonar imaging

• Bottom Color Tracking for a simplified bottom view

• Heading Line View combines ForwardScan depth data into heading line on charts

• Shallow depth alarm

• Maximum forward view of 8X current depth, nominally 4-5X current depth
  Operates at 180kHz, reducing interference from traditional 200kHz echosounders

• Built-in temperature sensor

• 50.8mm (2") stainless steel through-hull fitting

• Connects directly to Simrad NSS evo2, or NSO evo2 via SonarHub sounder module

Specifications:

• Temperature: No
• Speed Included: No
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Down/Forward
• Chirp: No
• Cable Length (Feet): 33'
• Box Dimensions: 5"H x 8"W x 12"L WT: 4.77 lbs
• UPC: 9420024133194
