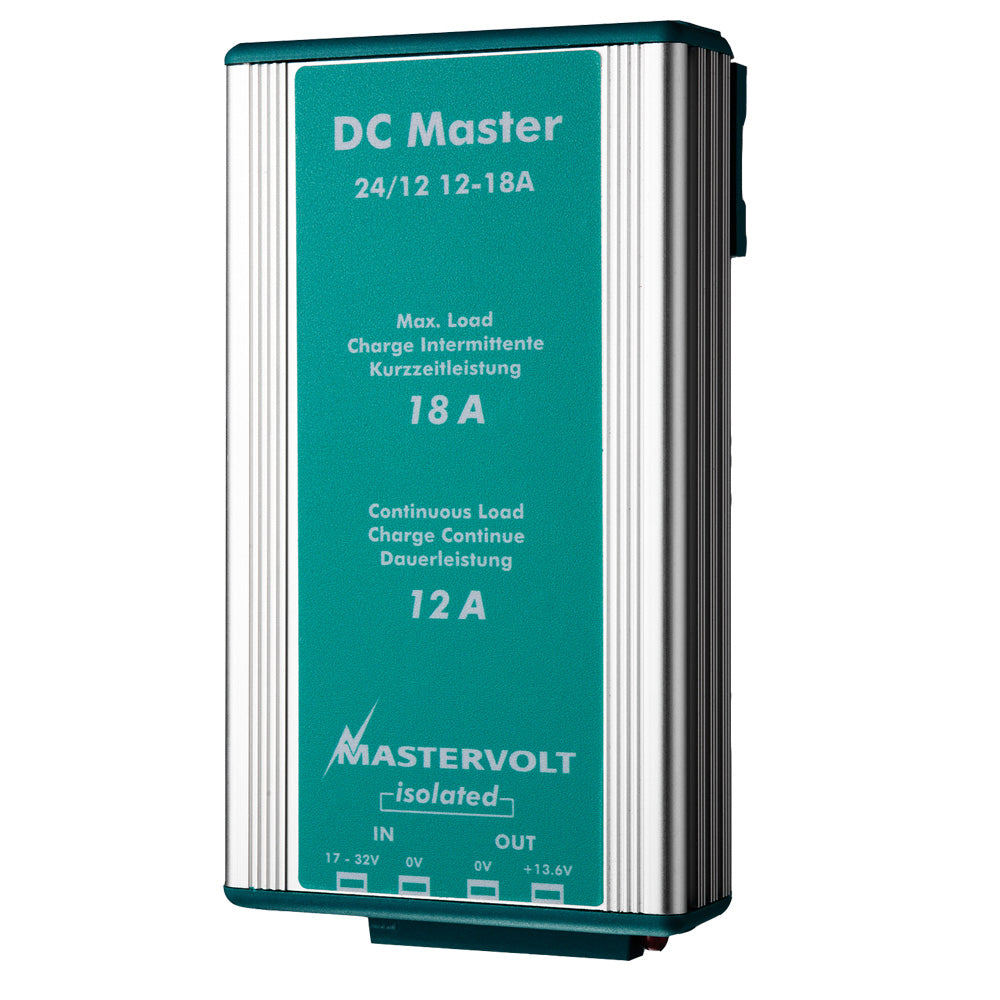

Mastervolt DC Master 24V to 12V Converter - 12 Amp [81400300]

DC Master 24V to 12V Converter - 12 Amp

Always on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.

DC Master DC-DC converters

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.

Features:

• Recreational and semi-professional use

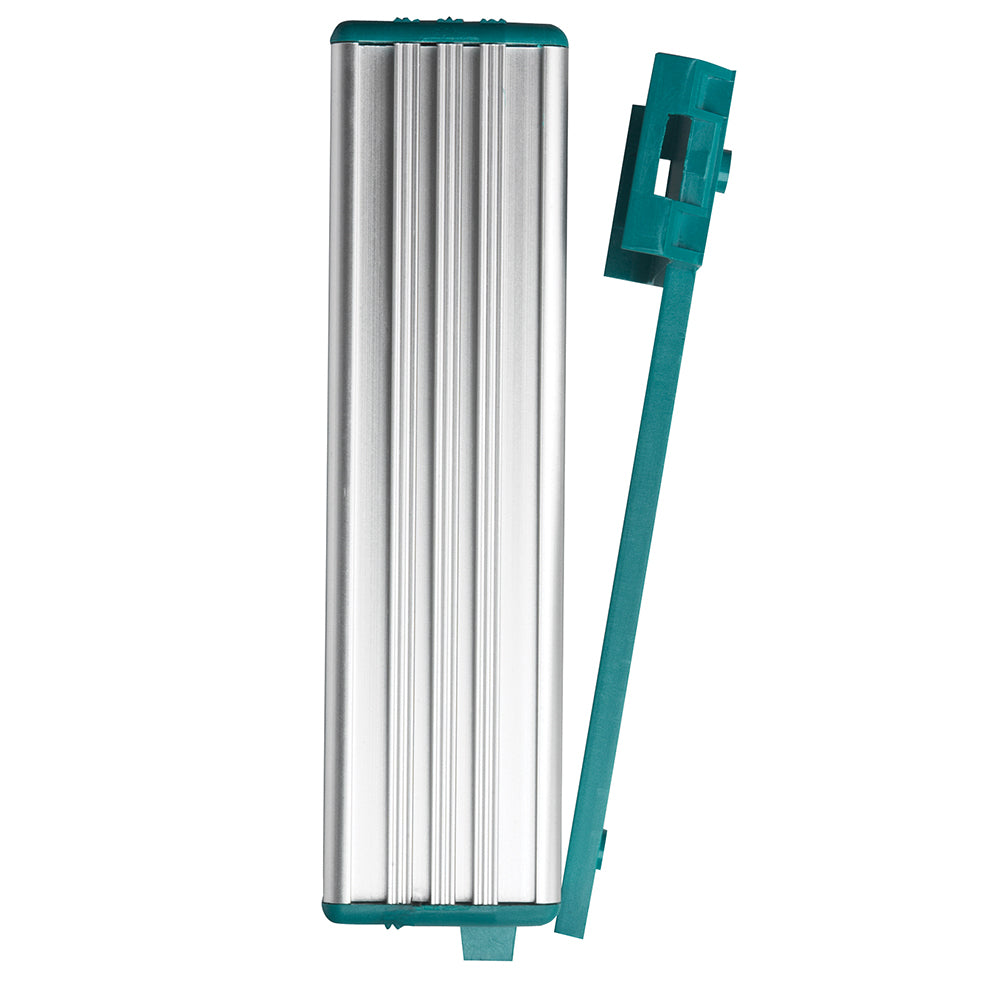

• Easy to install using included mounting bracket, screws and fasteners
• Smart electronics mean no unnecessary heat generation
• Continuous output
• Two minutes of extra power for short power boosts
• Excellent price/performance ratio

General Specifications

• Nominal output voltage: 13.6 V
• Max. output power: 245 W
• Nominal output power: 164 W
• Max. output current (for 2 min. intervals): 18 A
• Continuous output current: 12 A
• Nominal input voltage: 24 V
• Input voltage range (max.): 20-32 V DC (35 V)
• Galvanic isolation: no
• Stabilised: yes
• Dimensions, hxwxd: 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch
• Weight: 0.405 kg 0.9 lb
• Compliance: CE

Technical Specifications

• DC consumption: < 15 mA
• Connections: fast-on
• Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30
• Cooling: natural cooling
• Protection degree: IP53

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Input - Voltage: 24v
• Charger Output - Amps: 12a
• Charger Output Voltage: 12v
• Box Dimensions: 2"H x 4"W x 6"L WT: 0.95 lbs
• UPC: 852968002806
