XKA Stainless Steel Trim Tab - 12 x 9 The Lectrotab stainless steel trim tab design provides unmatched...
Vendor: Lectrotab
SKU: 96036
Availability: In stock
Product type: Trim Tabs
$954.69
$1,123.16
$954.69
Subtotal: $954.69
Description
Description
x

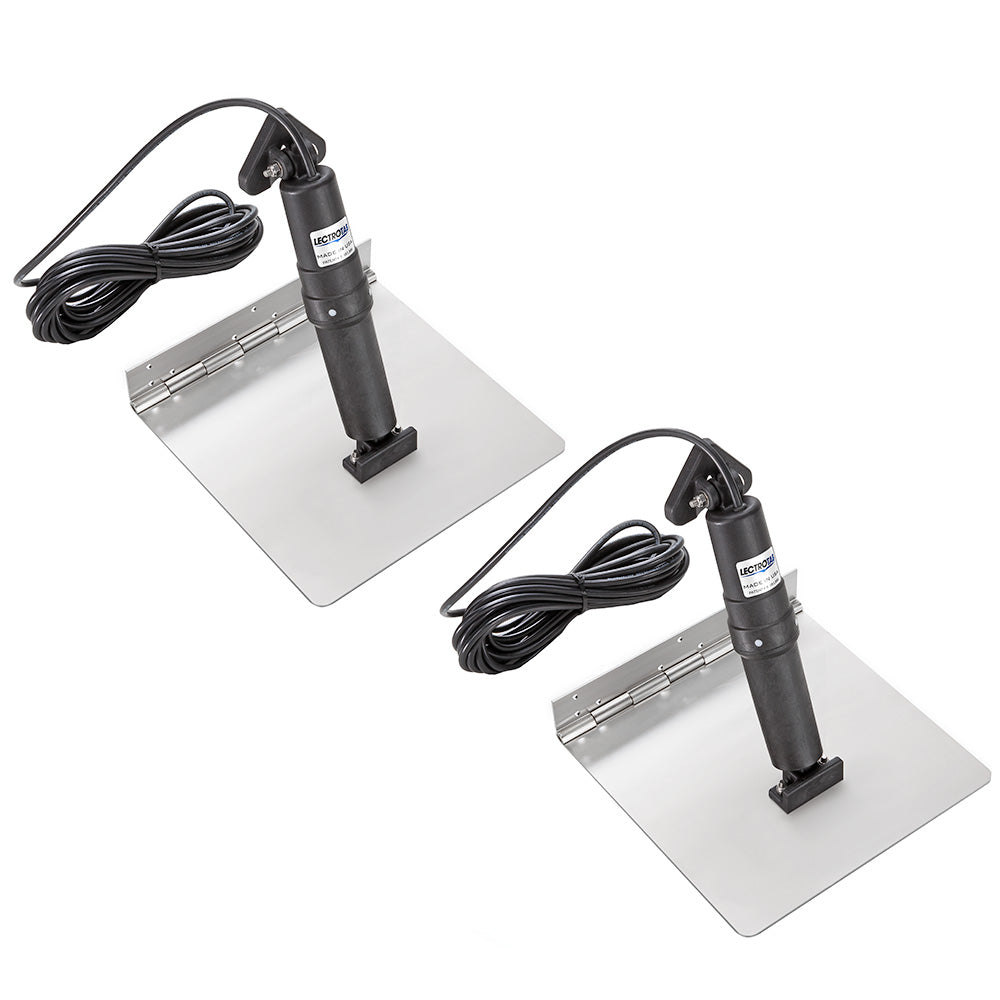

XKA Stainless Steel Trim Tab - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

  • Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
  • Boat Length - 18' to 29' (5.5 to 8.5 M)
  • Trim Tab Material - 12 gauge, 304 Stainless Steel
  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length  - 23' (7 M)
  • Actuator Vertical Height - 11.875" (302 mm)

In the Box:

  • Two (2) Stainless Steel tabs
  • Two (2) actuators w/23' (7 M) cables
  • Instruction Manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 6"H x 15"W x 15"L WT: 16.8 lbs
  • UPC: 850046155406

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
