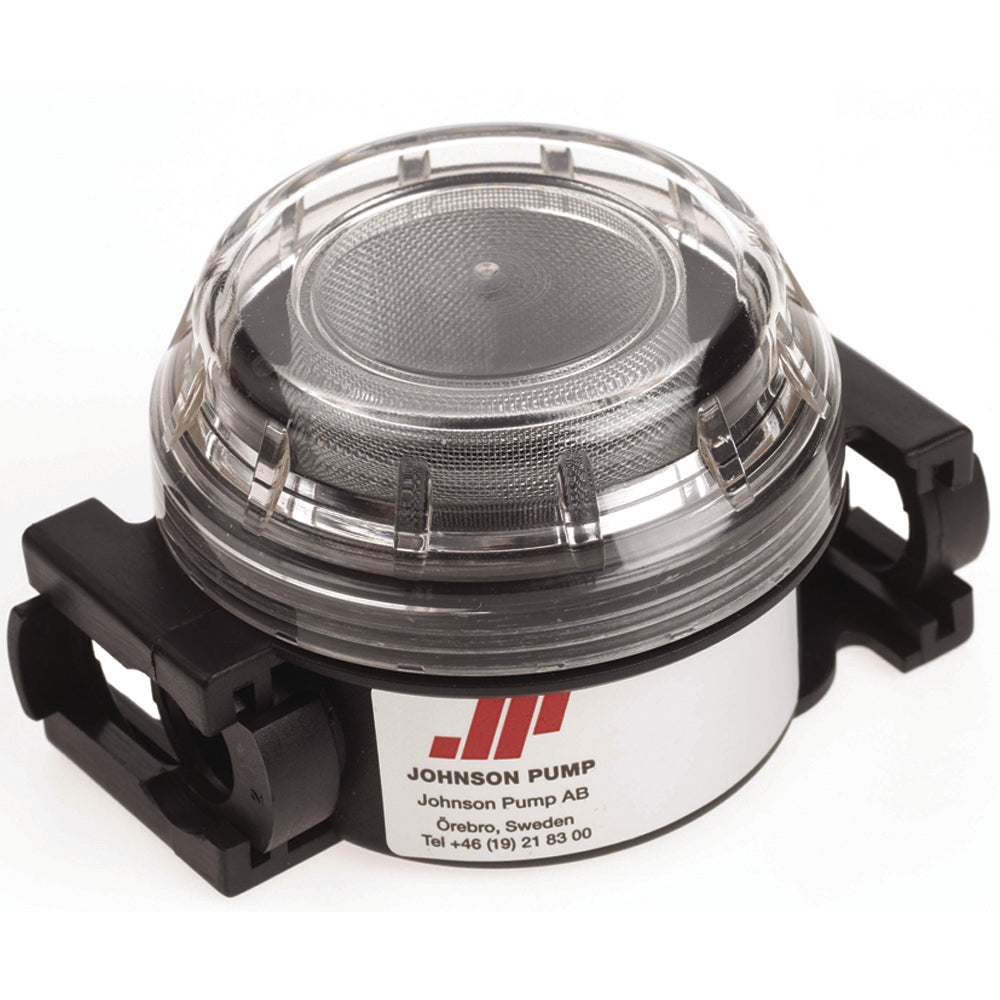

Johnson Pump Universal Strainer - 20 Mesh Screen [09-24652-04-CN]

PUMProtector™ Strainer
The PUMProtector™ inlet and universal strainers feature transparent covers for simple inspection, a wide variety of KlickTite™ port connectors for simple installation and removal, and high quality materials for simple maintenance. The connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient.

Materials
Strainer - Polyamide 66, black
Cover - Acrylic, clear, 01-36012 P02
Screen - Stainless steel, 20 mesh
O-rings - Silicone and EPDM

Diameter 80 mm / 3.15"
Height 60 mm / 2.35"
Weight 0.15 kg / 0.33 lbs
Mesh size 20

Max Liquid Temp. - +50°C - +120°F
Max Temp. for Drinking Water - +30°C - +85°F
KlickTite™ Connector - 2 x 1/2" hose / 3/8" NPT, 2 x 3/4" hose / 1/2" NPT

Specifications:

• Type: Strainers
• Box Dimensions: 5"H x 5"W x 5"L WT: 0.6 lbs
• UPC: 7330717008864
