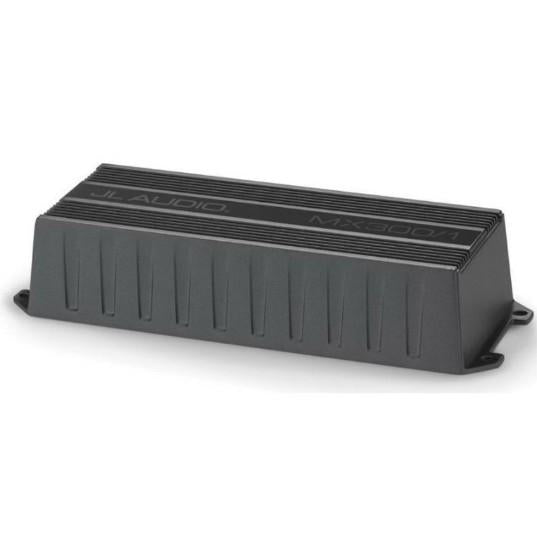

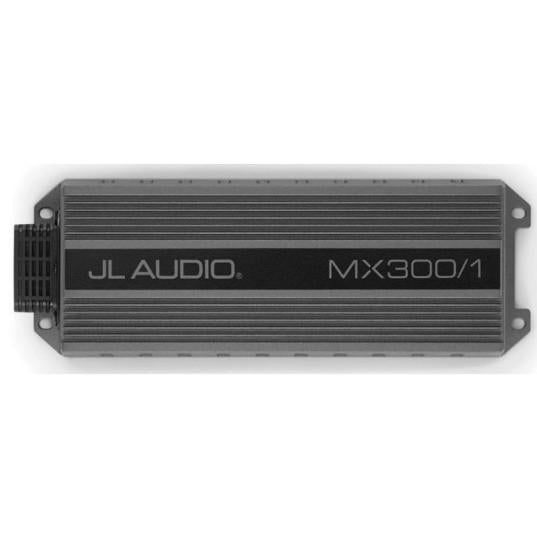

JL Audio MX Marine Amplifier Monoblock Wide-Range 300 Watts 12v
98406
Model: MX300/1Monoblock Class D Wide-Range Amplifier, 300 W x 1 @ 2 ohms / 160 W x 1 @ 4 ohms - 14.4V
Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| Rated Continuous (RMS) Power @ 14.4 V | |
| @ 4 ohms | 160 W RMS x 1 |
| @ 3 ohms | 220 W RMS x 1 |
| @ 2 ohms | 300 W RMS x 1 |
| @ 1.5 ohms | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 ohms | 160 W RMS x 1 |
| @ 3 ohms | 200 W RMS x 1 |
| @ 2 ohms | 250 W RMS x 1 |
| @ 1.5 ohms | N/A |
| General Specifications | |
| Frequency Response | 20 Hz - 12 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >85 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >150 / 50 Hz |
| Damping Factor @ 2 ohms | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 ohms |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 30 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 24 dB/octave |
| Filter Frequency Range | 40 Hz - 400 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 20 Hz - 40 Hz, variable |
| Bass Boost EQ | 0 to +12 dB @ 43 Hz |
| Output Polarity Switch | Yes |
| Remote Subwoofer Level Control | Optional (M-RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | None |
| Physical Specifications | |
| Height | 1.77 in / 45 mm |
| Width | 8.66 in / 220 mm |
| Depth | 3.09 in / 78.5 mm |
| Net Weight | 3.18 lb / 1.44 kg |
Brand: JL Audio
UPC: 699440984065
Model Number: 010-03324-00
Weight: 13
Length: 11
Height: 4
Width: 6
