JL Audio MVi Marine Amplifier 2 Channel Full-Range 600 Watts 12v Integrated DSP

JL Audio MVi Marine Amplifier 2 Channel Full-Range 600 Watts 12v Integrated DSP

Vendor: JL Audio
SKU: wt-JLA0100333600
Availability: In stock
$1,582.59
$1,582.59
$1,582.59
Subtotal: $1,582.59
Description
Description
x

JL Audio MVi Marine Amplifier 2 Channel Full-Range 2 Channel Full-Range 600 Watts 12v Integrated DSP

98646

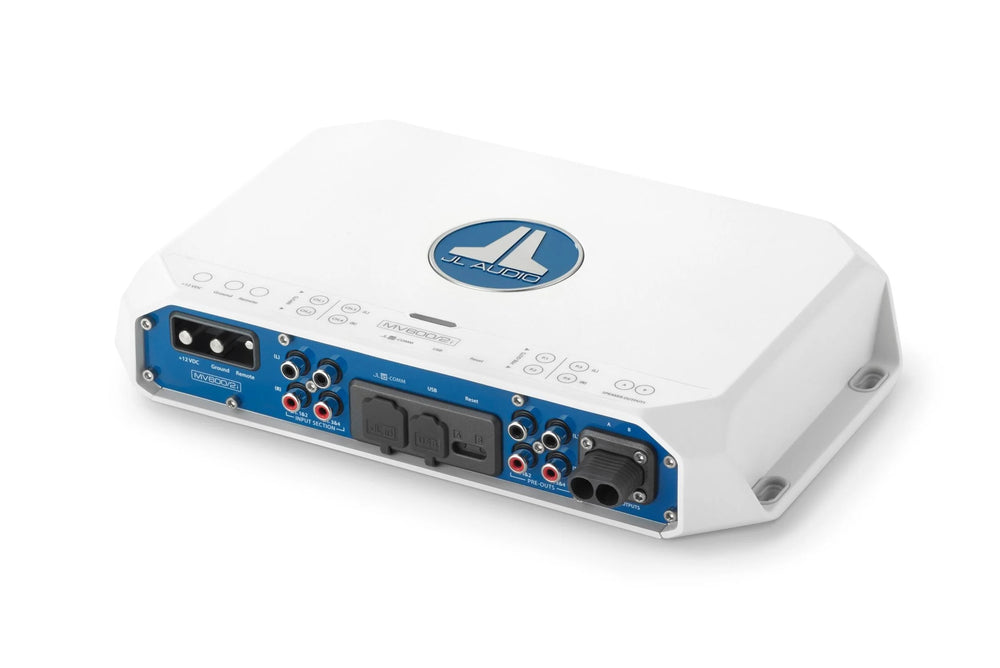

Model: MV600/2i

2-Channel Class D Full-Range Marine Amplifier with Integrated DSP, 300 W x 2 @ 2 ohms / 180 W x 2 @ 4 ohms- 14.4V

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2TM switching amplifier technology with an integrated, full-featured digital signal processor.

Outfitted with our second-generation NexD2TM technology, the MV600/2i produces up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.

The NexD2TM full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFETTM outputs for outstanding fidelity, very low noise and exceptional efficiency. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV600/2i is outfitted with corrosion-resistant hardware and connectors.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN(R) Software application installed.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications
@ 4 ohms
180 W RMS x 2
@ 2 ohms 300 W RMS x 2
Bridged @ 4 ohms 600 W RMS x 1
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ohms 140 W RMS x 2
@ 2 ohms 225 W RMS x 2
Bridged @ 4 ohms 450 W RMS x 1
General Specifications
Frequency Response 12 Hz - 24 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power(Analog Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W(Analog Inputs) 76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms >100 / 50 Hz
Damping Factor @ 2 ohms >50 / 50 Hz
THD+N @ Rated Power <1% @ 2 ohms per Ch.
Input Voltage Range @ RCA Inputs 250 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuseTM)
IP Rating IPX2 (when mounted vertically with connections pointed downward)
Physical Specifications
Height 2.05 in / 52 mm
Width 11.20 in / 285 mm
Depth 6.93 in / 176 mm
Net Weight 5.0 lb / 2.27 kg

What's in the Box:
  • MV600/2i Amplifier
  • Power Connector (for 4 AWG wire)
  • Speaker Output Harnesses (2)
  • 6 ft A/B USB Cable


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: JL Audio

UPC: 699440986465

Model Number: 010-03336-00

Weight: 8
