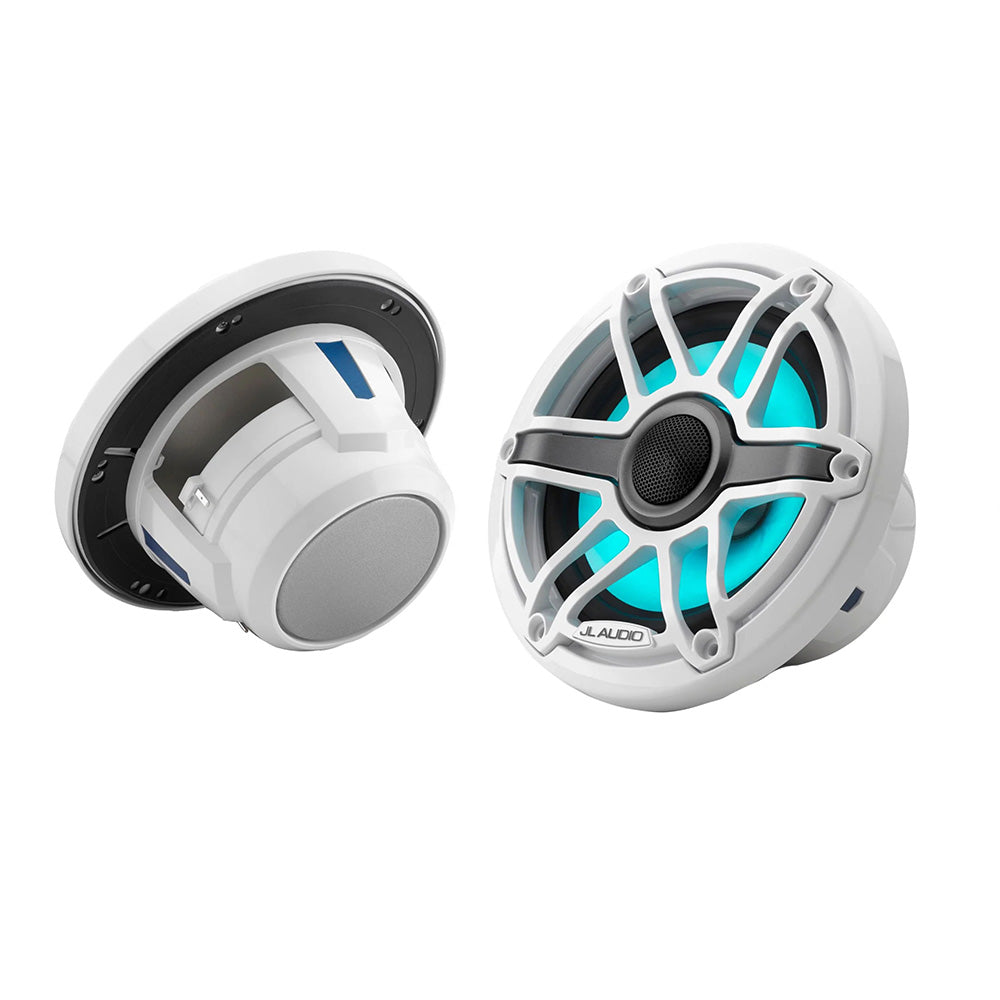

JL Audio M6 Series 6.5" Marine Coaxial Speakers w/Gloss White Sport Grille Transflective LED Lighting - M6-650X-S-GwGw-i [010-03093-00]

M6 Series 6.5" Marine Coaxial Speakers with Gloss White Sport Grille & Transflective™ LED Lighting - M6-650X-S-GwGw-i

MAXIMUM PERFORMANCE

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

Features

• Superior output and detail at all listening levels
• Grille and trim ring are easily removable for painting
• Patented LED illumination
• Exceeds international standards for salt fog and UV exposure
• 3-Year Warranty

Transflective™ RGB LED Lighting

Get a patented system on sport models for smooth lighting with no hot spots or reflections.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Matching Silk Dome Tweeters

Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

Advanced Filter Networks

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

Powerfully Efficient

M6 marine speakers are designed to benefit from operation with quality amplification.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

In The Box

• Two marine coaxial loudspeakers
• Two grilles
• Twelve stainless steel mounting screws
• Twelve stainless steel screws washers
• Mounting template

Specifications

• Size: 6.5"
• Color: White Sport
• Physical Dimensions (Diameter): 6.9"
• Physical Dimensions (Depth): 4.02"
• Speaker Type: Coaxial
• Continuous Power Handling (RMS): 75w
• Sensitivity (SPL @ 1w/1m): 89.5 dB
• Frequency Response (+/- 3 dB): 55 Hz - 25 Hz
• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power (RMS): 25-150 w/channel
• LED Lighting: Yes - Transflective™
• LED Supply Voltage: 10-14.4 VDC
• LED Load Current @ 14.4 VDC (Max): 324 mA
• Cone Material: Injection-molded, mica-filled polypropylene
• Tweeter Type: Silk Dome
• Tweeter Size: 0.8"
• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors
• LED Connection: Flying Lead with 4-conductor 20 AWG wire

Mounting Dimensions

• Mounting Depth Clearance: 3"
• Frontal Grille Protrusion: 1.02"
• Mounting Hole: 5-5.25"
• Bolt Hole Circle: 6.13"

Specifications:

• LED Lighting: Yes
• Mounting Style: Surface
• QTY: Pair
• Size: 6.5"
• Watts RMS: 75w
• Box Dimensions: 5"H x 9"W x 17"L WT: 7.3 lbs
• UPC: 699440937269
