JL Audio M3 10in Marine Subwoofer Gray Sport Grille
JL Audio M3 10in Marine Subwoofer Gray Sport Grille

JL Audio M3 10in Marine Subwoofer Gray Sport Grille

JL Audio M3 10in Marine Subwoofer Gray Sport GrilleModel: M3-10IB-S-Gm-4M3 10-inch Marine Subwoofer for Infinite-Baffle Use (175...
Vendor: JL Audio
SKU: wt-JLA0100307100
Availability: In stock
$520.33
$520.33
$520.33
Subtotal: $520.33
Description
Description
x

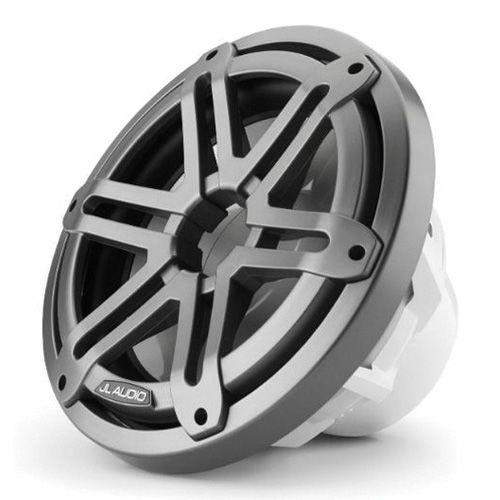

JL Audio M3 10in Marine Subwoofer Gray Sport Grille

Model: M3-10IB-S-Gm-4

M3 10-inch Marine Subwoofer for Infinite-Baffle Use (175 W, 4 ohms) - Gray Metallic Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M3 infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.

The M3-10 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of this model takes place in JL Audio's Miramar, Florida factory, using global materials and components.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications
General Specifications
Continuous Power Handling (RMS) 175 W
Nominal Impedance (Znom) 4 ohms
Physical Specifications
Nominal Diameter 10.0 in / 250 mm
Overall Diameter 10.75 in / 273 mm
Mounting Hole Diameter 8.875 in / 225 mm
Bolt Hole Circle Diameter 9.706 in / 247 mm
Motor Outer Diameter 5.29 in / 134 mm
Mounting Depth 5.12 in / 130 mm
Driver Displacement 0.04 cu ft / 1.13 L
Net Weight 6.5 lb / 2.94 kg
Parameters
Free Air Resonance (Fs) 41.84 Hz
Electrical "Q" (Qes) 0.806
Mechanical "Q" (Qms) 11.751
Total Speaker "Q" (Qts) 0.754
Equivalent Compliance (Vas) 1.29 cu ft / 36.53 L
One-Way Linear Excursion (Xmax)* 0.42 in / 11 mm
Efficiency (1 W / 1 m)** 87.23 dB SPL
Effective Piston Area (Sd) 50.68 sq in / 0.0327 sq m
DC Resistance (Re) 3.957 ohms
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Enclosure Specifications
Infinite Baffle Use Yes (preferred)
Min. Sealed Enclosure Volume 2.0 cu ft / 56.6 L (or larger)
Optimum Sealed Enclosure Volume 2.5 cu ft / 70.8 L


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: JL Audio

UPC: 699440935289

Model Number: 010-03071-00

Weight: 14

Length: 0

Height: 0

Width: 0
