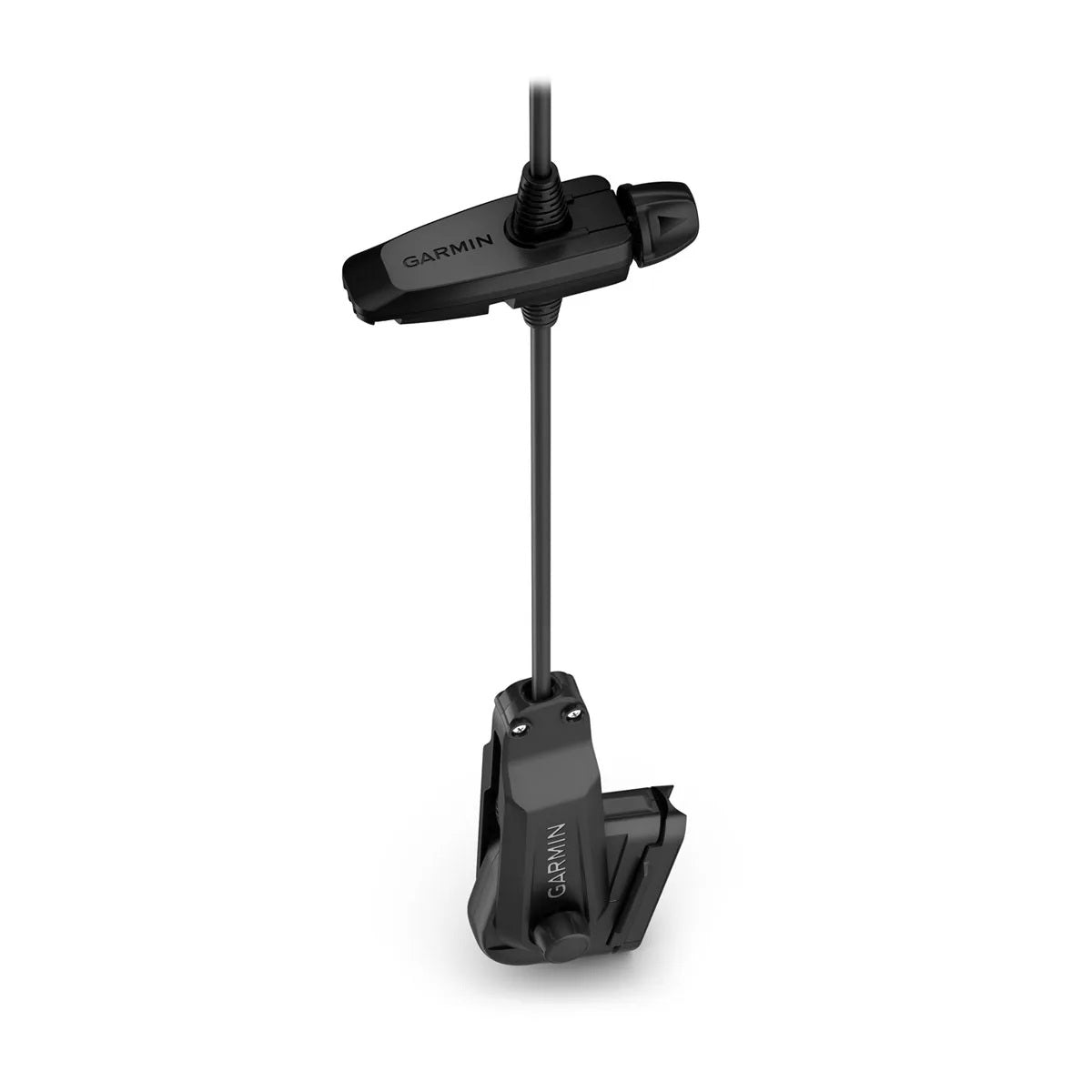

Garmin PanoptixTM PS22-IF Portable Live Sonar

Model: 010-01945-10

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVüTM Forward and LiveVüTM Down scan modes.

Specifications
Transducer beamwidth
With lens: 12 deg x 120 deg
Without lens: 57 deg x 120 deg
Transducer cable length 9.8 feet (3 m)
Dimension 9.1 in x 4.1 in x 2.5 in (23.1 x 10.4 x 6.4 cm)
Weight 2.60 lbs (1.18 kg)
Temperature range Operating: 0 deg C to 40 deg C
Electrical Features
Power input 10-32 V
Fuse 4A
Sonar Features
Frequency 417 kHz
Transmit power 48 W
Maximum depth 300 feet
Connections
Garmin Marine Network Ports 1 (standard connector)
Sonar Modes
LiveVü Down Yes
LiveVü Forward Yes
Traditional sonar source Yes

What's in the Box:
  • Panoptix PS22-IF transducer
  • Transducer rotator and bracket
  • Removable lens
  • Hardware
  • Documentation


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Garmin

UPC: 753759340223

Model Number: 010-01945-10

Weight: 5
