Garmin gWind Race Transducer [010-01228-00]

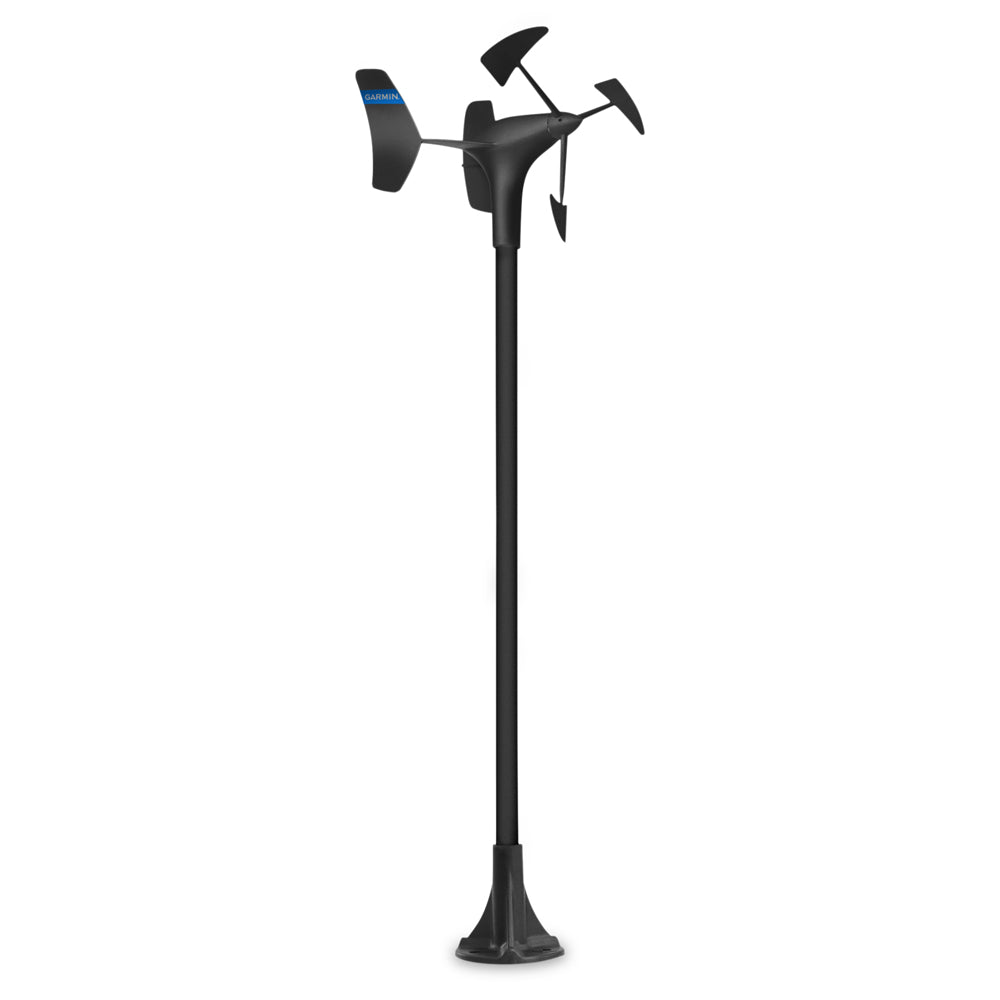

gWind™ Race Transducer

Designed for racing sailboats it features a 3' straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin fin design gives a more stable True Wind Angle (TWA). The three-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. Included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data.

Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chartplotters and NMEA 2000.

Features:

• Designed for racing sailboats
• 3' (.91m) straight pole to raise the wind transducer above the mast to remove turbulence errors from sail wash
• Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air
• Twin-fin design gives a more stable True Wind Direction (TWD)
• Optic reading technique makes this transducer superior at low wind speeds and provides for excellent linearity
• GND 10 black box bridges NMEA 2000 data to Nexus Network and enables Garmin compatible chartplotters to work with Nexus sail equipment and vice versa
• Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB networks

In The Box

• gWind Race transducer
• GND™ 10
• USB Mini-B cable
• NMEA 2000® drop cable (2 m)
• NMEA 2000 T-connector
• Mast cable with female connector (25 m)
• Nexus network cable (5 m; straight connector)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Instrument Function: Wind
• Box Dimensions: 7"H x 10"W x 47"L WT: 7 lbs
• UPC: 753759112233
