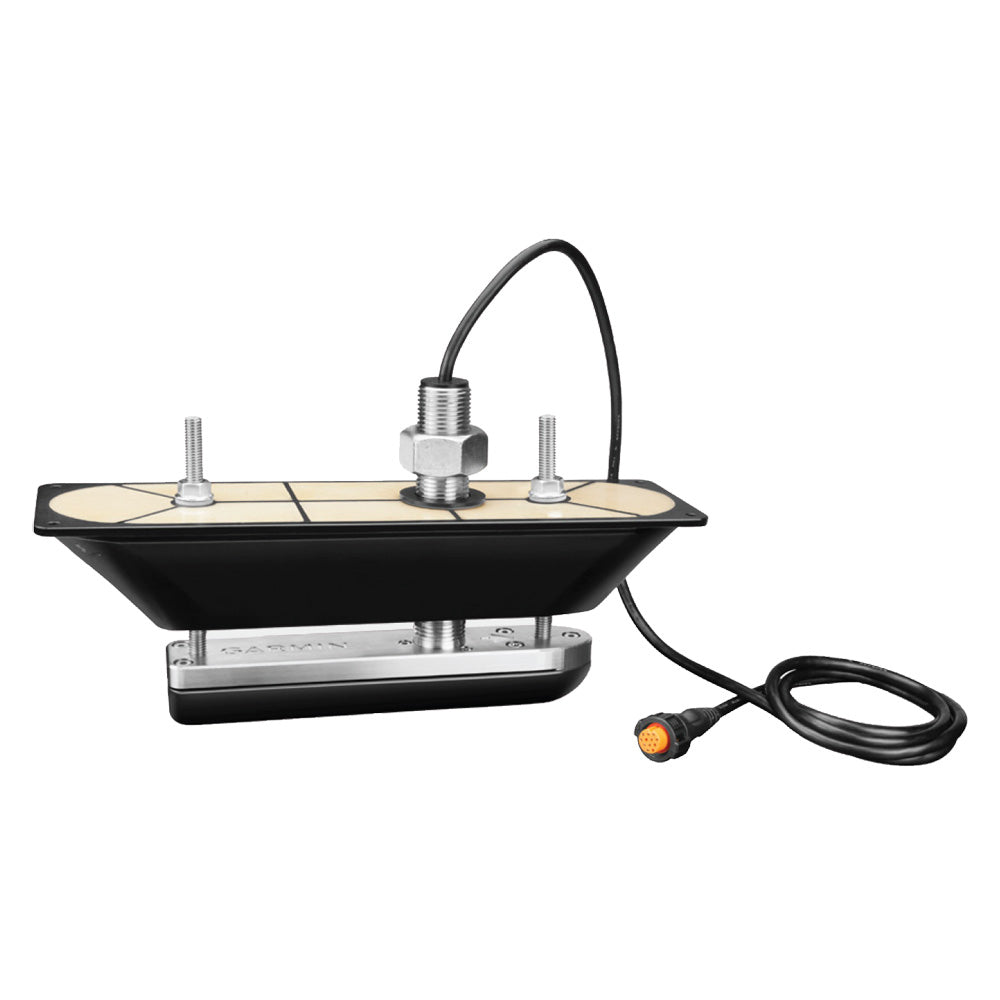

Garmin GT30-TH SS Thru-Hull DownVu/SideVu Scanning Transducer w/Temp f/Hull Deadrises Less Than 5 [010-01961-10]

Garmin GT30-TH - Stainless Steel Thru-hull DownVü/SideVü 500W (CHIRP 455/800 kHz) Scanning Transducer with Temp, for Hull Deadrises Less Than 5° (12-pin)

Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with this 12-pin thru-hull transducer with stainless steel stem.

This transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (DownVü) and 500 ft left and right (SideVü) an operating frequency of CHIRP 455/800 kHz; for hull deadrises less than 5 degrees. Pair it with your GCV™ 10 scanning sonar module.

Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

• GCV™ 10 Scanning Sonar Module

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Cable Length (Feet): 5' + 30' y-extension
• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Down/Side
• Chirp: Non Traditional
• Pins: 12
• Box Dimensions: 5"H x 12"W x 14"L WT: 6.2 lbs
• UPC: 753759152802
