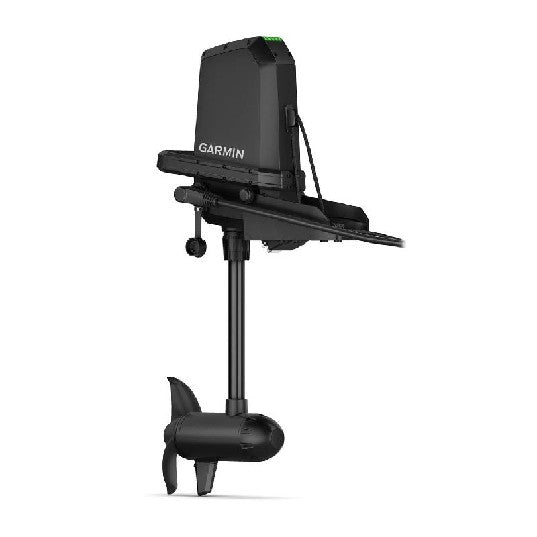

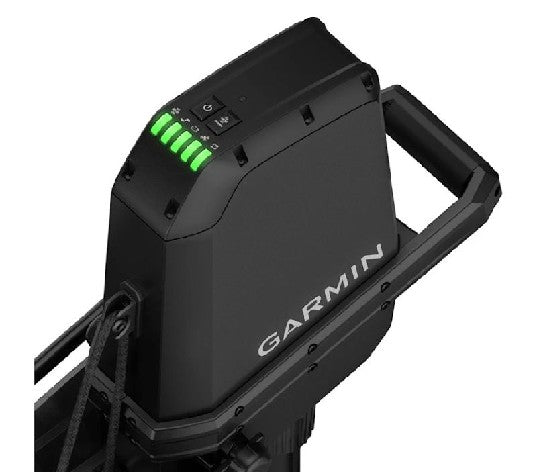

Garmin Force® Current Trolling Motor for Kayaks with Power Steer Foot Pedals
Model: 010-02864-00Power steer pedals connect wirelessly to the motor to reduce clutter on the deck. This all-in-one steering and throttle solution allows you to fish, troll, cast and fight without ever setting the rod down. Programmable pedal buttons give you quick access to key features such as anchor lock, heading hold and more.
Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.
Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust throttle and steering on the chartplotter control bar, adjust motor settings and more.
The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong current.
When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.
An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.
Use the included remote to help you navigate with our simple point-and-go technology.
Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
Engage anchor lock, heading hold and more with programmable foot pedal buttons.
Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.
The 4-hole mounting pattern makes installation easy on many different types of kayaks. The wireless foot pedals and rail system are also designed to accommodate a wide variety of installation methods.
Get on and off the water fast with simple motor and pedal installation and removal.
Don’t spook the fish; the motor is extremely quiet above and below the water.
The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.
Specifications| General | |
| Color | black |
| For use in | freshwater, brackish water and saltwater |
| Mount style | 4-hole tilt mount |
| Max thrust | 50 lbs (ISO13342) using high efficiency propeller at 24 V 30 lbs (ISO13342) using high efficiency propeller at 12 V |
| Voltage | 12 V or 24 V |
| Electric steering | Yes |
| Built-in heading sensor | Yes |
| Built-in GPS | yes (dual frequency GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating | IPX7 |
| Mounting location | stern |
| Wireless remote | yes (included) |
| Shaft length (from mount to top of drive motor) | 16.6" (max); 11.4" (min) |
| Power steer foot pedals (kayak) compatible | yes (included) |
| Battery indicator | Yes |
| Variable speed control | yes (20 steps) |
| quatix remote control supported | Yes |
| Manual reverse control | Yes |
| Autopilot Features | |
| Route following | Yes |
| Anchor lock | Yes |
| Smart Anchor Lock features | Yes |
| Anchor lock jog | Yes |
| Heading hold | Yes |
| Cruise control | Yes |
| Gesture features | yes (manual+, heading hold+, jog+) |
| Power Steer Foot Pedals (Kayak) | |
| Dimensions | 5.63" x 9.75" x 3.63" (max, single pedal when mounted) |
| Wireless communication | Yes |
| Power installation | batteries (2 AA) |
| AA battery life | 1 full season |
| Water rating | IPX7 |
| Remote Features | |
| Display size | 1.2" (30.2 mm) diameter |
| Display resolution | 240 x 240 pixels |
| Display type | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | Yes |
| Autopilot feature control | Yes |
| Water rating | IPX7 |
| Battery life | typical use with backlight at low, 43 weeks |
| Floats | Yes |
Brand: Garmin
UPC: 753759347734
Model Number: 010-02864-00
Weight: 50
Length: 50
Height: 18
Width: 10
