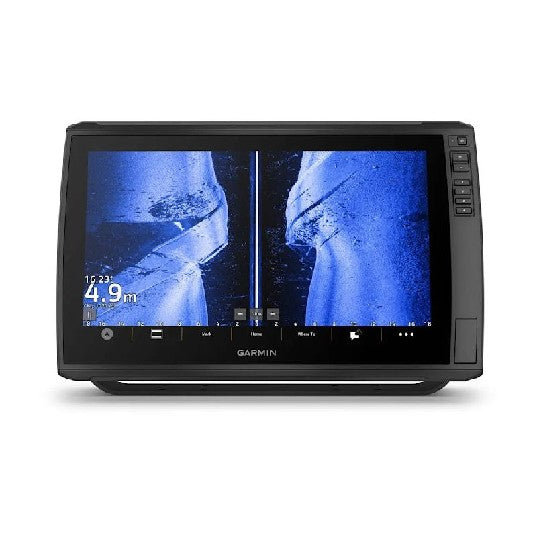

Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap with GT56UHD-TM Transducer
Model: 010-03385-01Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Specifications| General | |
| Dimension | 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 2 microSD™ cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Optional Map Support | |
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| ActiveCaptain® compatible | Yes |
| Supports voice commands | Yes |
| Sailing Features | Yes |
| Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 3.9 A |
| Maximum current draw at 12 Vdc | 6.6 A |
| Maximum power usage at 10 Vdc | 48 W |
| Sonar Features | |
| Displays sonar | Yes |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| Connections | |
| NMEA 2000® ports | 1 |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
Brand: Garmin
UPC: 753759353339
Model Number: 010-03385-01
Weight: 0
Length: 0
Height: 0
Width: 0
