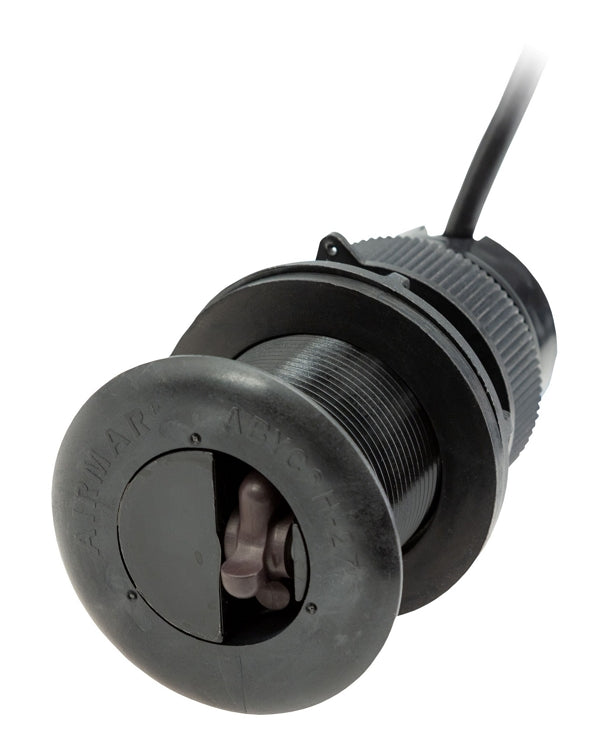

Furuno DST810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull

Furuno DST810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Plastic 235 kHz transducer.Model: DST-810PSF 5 Hz speed output (5X...
Vendor: Furuno
SKU: wt-FURDST810PSF
Availability: In stock
$510.20
$492.94
$510.20
Subtotal: $510.20
Description
Description
x

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Plastic 235 kHz transducer.

Model: DST-810PSF
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000(R) network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic Window
Urethane
Hull Deadrise Up to 22 deg
Data Update Rate Depth 1X/second
Data Update Rate Speed 5X/second
Attitude Accuracy +/- 1 deg nominal after sensor calibration
Depth Frequency 235 kHz
Minimum Depth Range 0.5 m (1.6 feet)
Maximum Depth Range Up to 100 m (330 feet)-NMEA 2000(R)
Speed Range Up to 45 knots
Pressure Rating 3 m (10 feet)
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Supply Voltage 9 VDC to 16 VDC-per NMEA 2000
Supply Current <200 mA-per NMEA 2000(R)
Wireless Protocol Bluetooth Low Energy (BLE)
Wireless Range Up to 30 feet depending on mount location
Standard Cable Length 6 m (20 feet) DeviceNet-NMEA 2000(R)
Temperature Sensor Accuracy +/-0.5 degC (+/-1.8 degF)
Temperature Sensor Range -10 degC to 40 degC (14 degF to 104 degF)
NMEA 2000 Load Equivalency Number (LEN) 3

What's in the Box:
  • DST-810 Insert
  • Plastic Housing


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Furuno

UPC: 611679391483

Model Number: DST-810PSF

Weight: 2.05
