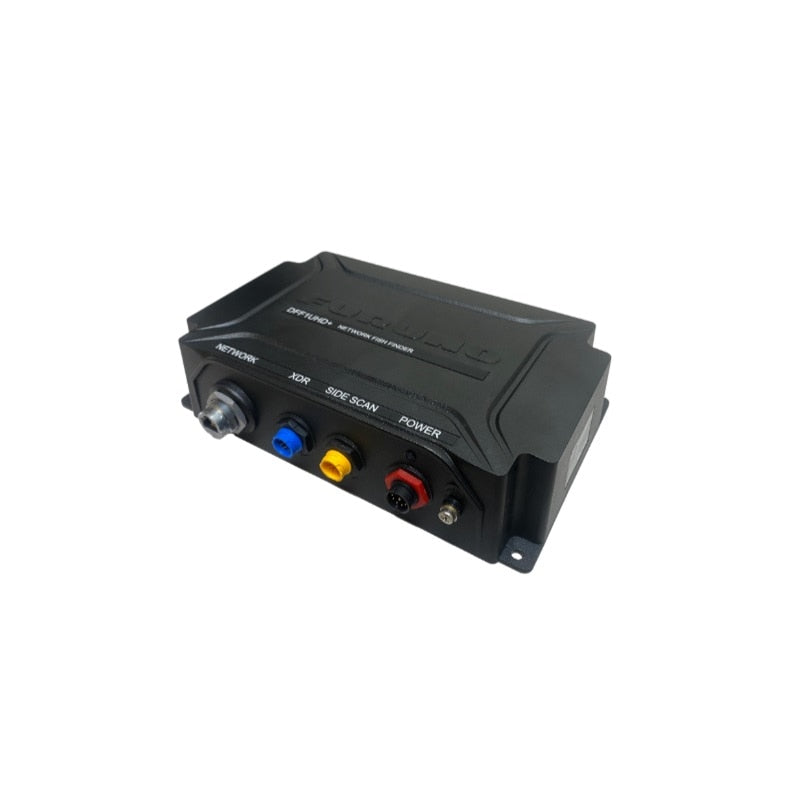

Furuno DFF1-UHD+ CHIRP Sounder TruEcho CHIRP w/ Side Scan

Furuno DFF1UHD+ Black Box TruEcho CHIRP with Side Scan

• Compatible with 300/600 W or 1 kW Transducer (Matching box MB1100 required for some CW transducers)
• Display Range from 6 to 4,000 feet
• Modes: ACCU-FISH™*, A-Scope, Manual Gain, Auto Gain (Fishing/Cruising), TruEcho CHIRP™, Bottom Discrimination (Compatible transducer required)
• 8-Step Picture Advance: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
• Fish Finder Alarms: Fish School, Fish School for bottom lock
• CHIRP at 230 kHz or 455 kHz center frequency
• Display range up to 750 feet to each side
• View CHIRP Side-Scan in full screen, 1/2 screen, 1/3 screen, 1/4 screen, and 1/6 screen
• Eight CHIRP Side-Scan display colors

The DFF1UHD+ is a powerful multi-channel network Fish Finder designed for seamless integration with NavNet TZtouchXL, the perfect addition for helms featuring the TZT22X, TZT24X, or Black Box TZTBBX. The DFF1UHD+ combines up to 1 kW of CW and CHIRP Fish Finder power with 230 kHz or 455 kHz CHIRP Side-Scan in a single compact unit, delivering enhanced performance and versatility. Color-coded, waterproof connectors and a compact design allow for a simple installation.

• DFF1UHD+ Black box
• Power Cable
• 12-10pin Cable
• Network (LAN) Cable
• WATERPROOF RJ45 (M) TO RJ45 ADAPTER CBL .5M
• Installation Manual

Brand: Furuno

Model Number: DFF1-UHD+

Weight: 4.1
