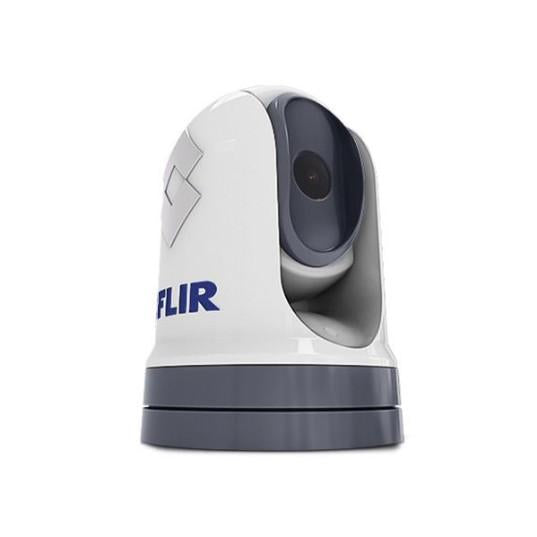

FLIR M332 Single Payload Thermal Camera No JCU 320 x 256 24D HFoV

Model: M332

Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.

Thermal imaging offers vision in complete darkness, glare, and light fog.

Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Exceptional connectivity with navigation and security systems.

Specifications
General
Detector Type 320 x 256 VOx Microbolometer
Field of View 24° x 18°
Image Processing FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output Yes
Network Video Output Single H.264 Network Video Stream
Pan & Tilt Adjustment Range 360° Continuous Pan, ± 90° Tilt
Pan/Tilt Yes
Connections & Communications
Analog Video Output NTSC/PAL User Settable
Analog Video Connector Types BNC
Environmental
Automatic Window Defrost Standard at Power-Up
EMI IEC60945
Lightning Protection Standard
Operating Temperature Range -13°F to +131°F (-25°C to +55°C)
Salt Mist IEC60945
Shock 15g vertical, 9g horizontal
Storage Temperature Range -30°F to +158°F (-30°C to +70°C)
Vibration IEC60945
Water Ingress IPX6 (heavy seas, power jets of water)
Wind 100 knots (115.2 MPH)
Sand & Dust Ingress Mil-Std-810E or IP6X
Marine Imaging & Optical
Focus Fixed 12ft (3m) to infinity
Thermal Imaging
Continuous E-Zoom 8x
Focal Length - Thermal 9.1mm
Video Refresh Rate - Thermal 30 Hz

What's in the Box:
  • M332 Camera
  • Camera base-seal
  • Camera gasket
  • RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
  • Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)
  • Right-angled BNC-to-BNC cable 3 m (9.8 ft.)
  • Right-angled 3-pin power cable 3 m (9.8 ft.)
  • Mounting riser
  • 9. 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs


    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Brand: FLIR

    UPC: 723193826959

    Model Number: E70527

    Weight: 20

    Length: 0

    Height: 0

    Width: 0
