Faria Euro White 2" Fuel Level Gauge (E-1/2-F) [12901]

Faria Euro White 2" Fuel Level Gauge (E-1/2-F) [12901]

Euro White 2" Fuel Level Gauge (E-1/2-F)Perimeter-lighted White dial with bold Black graphics, Black aluminum bezel, contoured...
Vendor: Faria Beede Instruments
SKU: 54709
Availability: Out Of Stock
Product type: Gauges
$45.82
$48.69
$45.82
Subtotal: $45.82
Description
Description
x

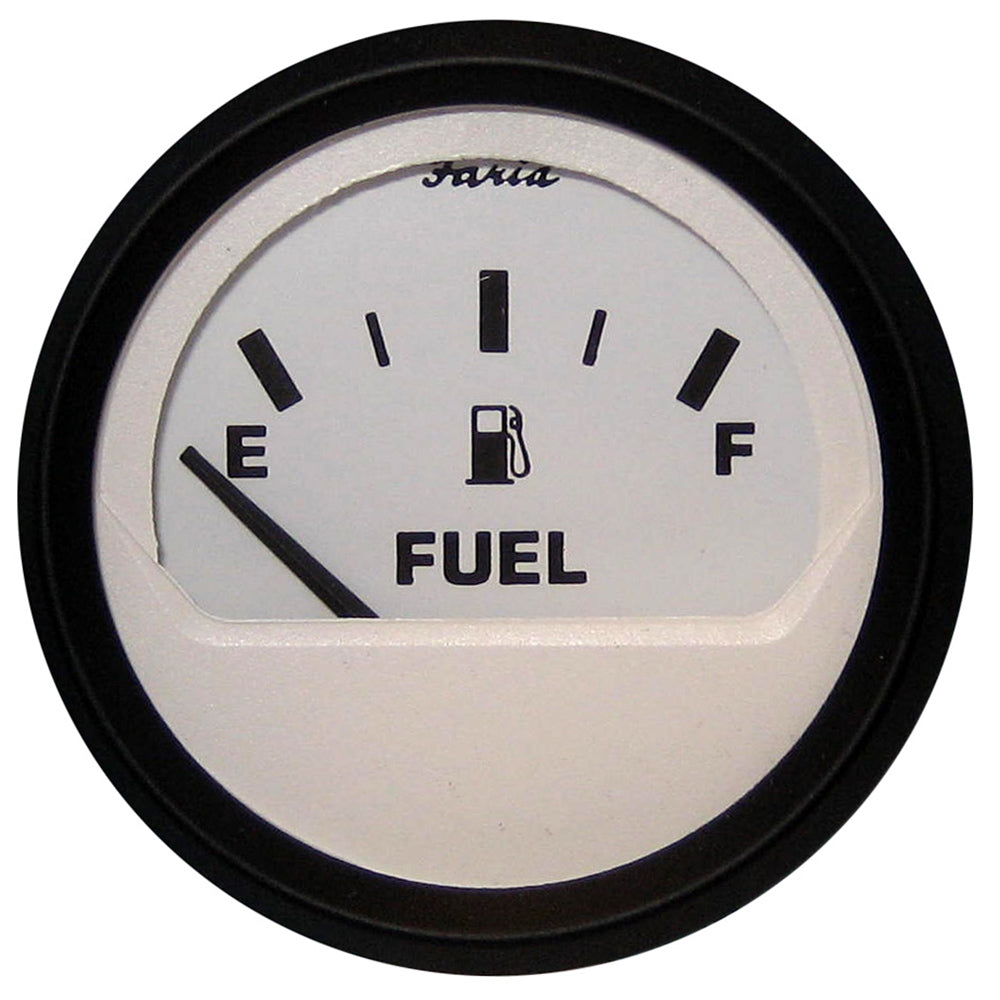

Euro White 2" Fuel Level Gauge (E-1/2-F)

Perimeter-lighted White dial with bold Black graphics, Black aluminum bezel, contoured White pointer and flat glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2" - Hole Size: 2.0625" (53mm)

Specifications:

  • Anti-scratch glass lens
  • 12 VDC negative ground
  • Perimeter-lighted White dial
  • Can be adapted for 24 VDC systems

Factory P/N GP9358

*Sold as an Individual

**Gauge Cover not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Gauge Type: Fuel Level
  • Series: Euro White
  • Voltage - Input Range (Volts): 12/24 V
  • Gauge Size: 2"
  • Box Set: No
  • Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
  • UPC: 759266129016

Quick Guide (pdf)
