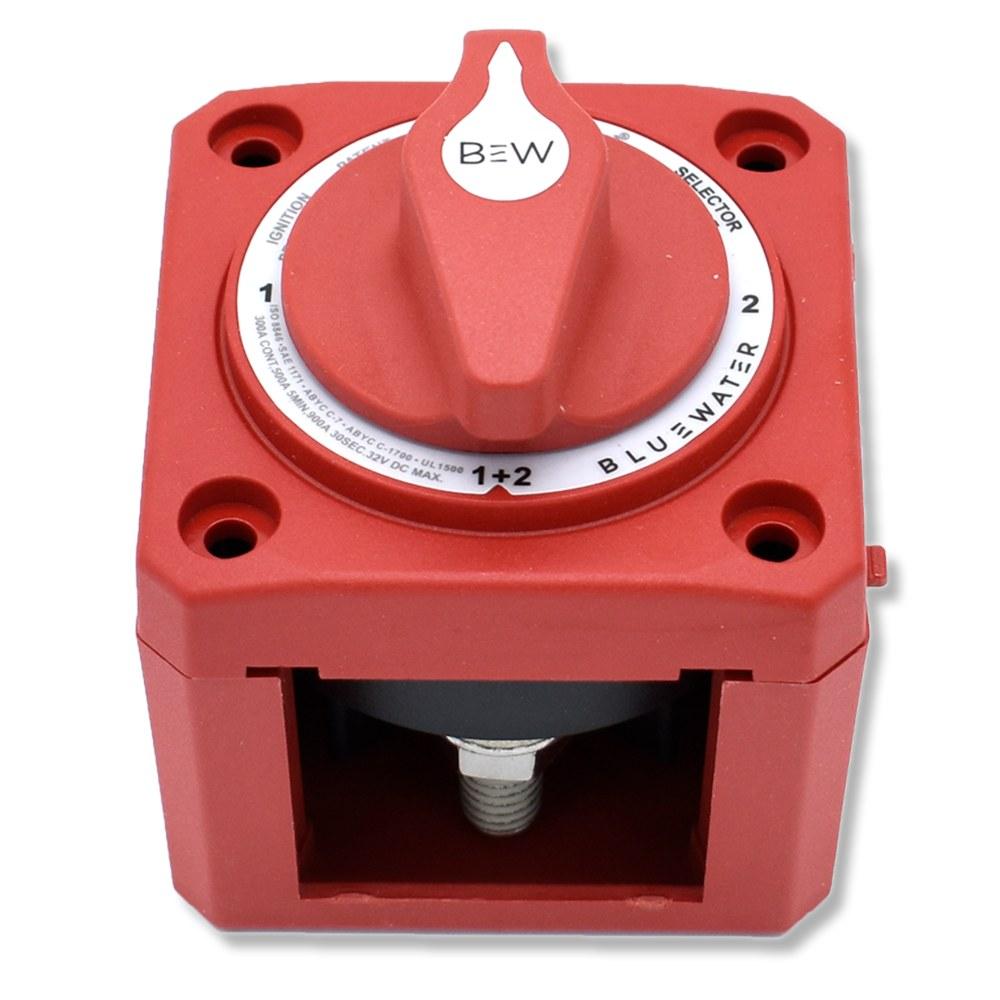

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Surface Mount with Base, Red

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Surface Mount with Base, Red

Vendor: Bluewater Enterprises
SKU: wt-BWE980000711
Availability: Out Of Stock
$67.58
$67.58
$67.58
Subtotal: $67.58
Description
Description
x

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Surface Mount with Base, Red

Model: 9800-007-11
  • Full Battery Control - Route power from Battery 1, Battery 2, both, or neither.
  • Heavy-Duty Rating - 300A continuous, 500A intermittent and 900A cranking.
  • Heavy-Duty Studs - 3/8"-16 tin-plated copper studs accept 3/8" and M10 ring terminals, with 7/8" stud length for multiple cables.
  • Ignition Protected - Safe for gasoline-powered boats; also suited to RV applications.
  • Surface Mount - Includes a base for surface mounting.

This Bluewater Off/1/2/Both selector switch is ideal for managing power flow, setting up backup systems and charging multiple battery banks.

It's built from non-corrosive marine-grade metals and reinforced polycarbonate, with tactile knob textures to confirm position by feel. International ON/OFF legends and an icon label set are included.

Specifications
Positions Off / 1 / 2 / Both
Continuous Rating 300A DC
Intermittent Rating 500A DC (5 min)
Cranking Rating 900A DC (30 sec)
Max Voltage 32VDC
Studs 3/8"-16 tin-plated copper, 7/8" length
Cable Size Up to 4/0 AWG
Mounting Surface mount (with base)
Knob Color Red


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196331181

Model Number: 9800-007-11
