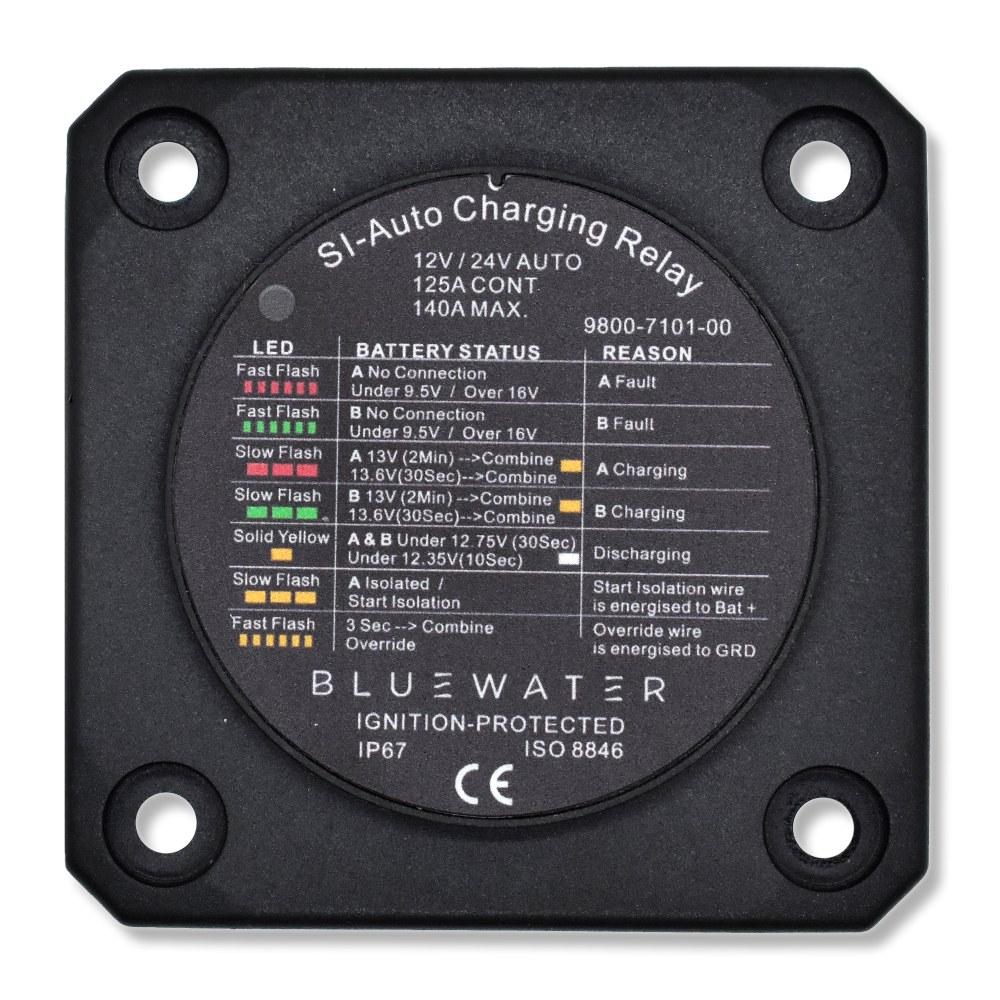

Bluewater Automatic Charging Relay (ACR/VSR), 120A Continuous / 140A Intermittent, 12V, Black

Model: 9800-7101-00
  • Automatic Battery Management - Connects batteries while charging and isolates them when voltage drops.
  • Start Isolation (SI) - Temporarily disconnects house loads during engine cranking to protect sensitive electronics.
  • Under-Voltage Lockout - Won't close when battery voltage is too low (9.5V on 12V systems).
  • Dual-Color Status LEDs - Show Fault, Charging, Discharging, Combine, SI and Override modes.
  • IP67 & Ignition Protected - Waterproof and safe for gasoline-powered boats.

The Bluewater Automatic Charging Relay (voltage sensitive relay) manages charging between two battery banks automatically, so both stay charged while your starting battery stays protected.

It supports alternators up to 120A and is ideal for boats with dual battery systems, including sailboats and fishing boats, as well as RVs.

Specifications
Continuous Rating 120A
Intermittent Rating 140A
Alternator Support Up to 120A
System Voltage 12V
Max Voltage 48VDC
Under-Voltage Lockout 9.5V (12V systems)
Cable Size Up to 4/0 AWG
Protection Rating IP67, ignition protected
Color Black, with base


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196331235

Model Number: 9800-7101-00
