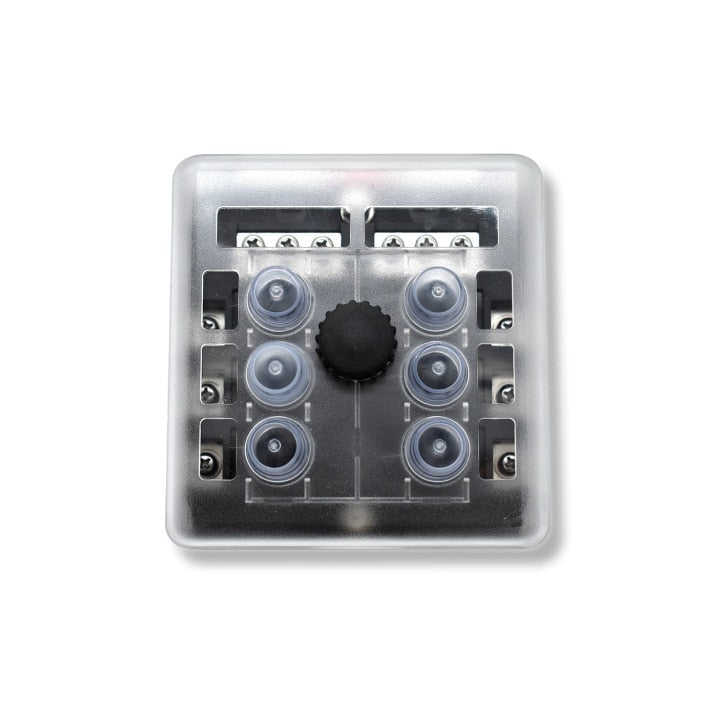

Bluewater 6 Position Circuit Breaker Panel W/Cover
Model: 3200-2001-006A circuit breaker block is the smarter alternative to a traditional fuse box. Instead of worrying about blown fuses, each circuit is protected by a resettable thermal breaker. If one trips, simply press the breaker and restore power instantly—no spare fuses required.
This circuit breaker block is engineered to handle the harsh realities of marine environments—salt spray, vibration, and constant use. Whether you’re wiring a new build or upgrading a fuse box, it provides a clean, reliable, and resettable power distribution solution.
Specifications| Input terminals | M5 threaded studs |
| Output terminals | M4 studs, rated 25A max per circuit |
| Mounting dimensions | 3.74" x 3.54" |
| Max Voltage | 48V DC |
| Breaker Type | 88 Series/BW 38 Series |
| Input Terminal Rating | 100A max |
| Material | Stainless Steel/Nickel-plated Copper/Polycarbonate |
| Installation | |
| Mounting Holes | 0.1695" |
| Distance Between Mounting Holes | 3.74" H / 3.54" W |
Brand: Bluewater Enterprises
UPC: 810196332300
Model Number: 3200-2001-006
