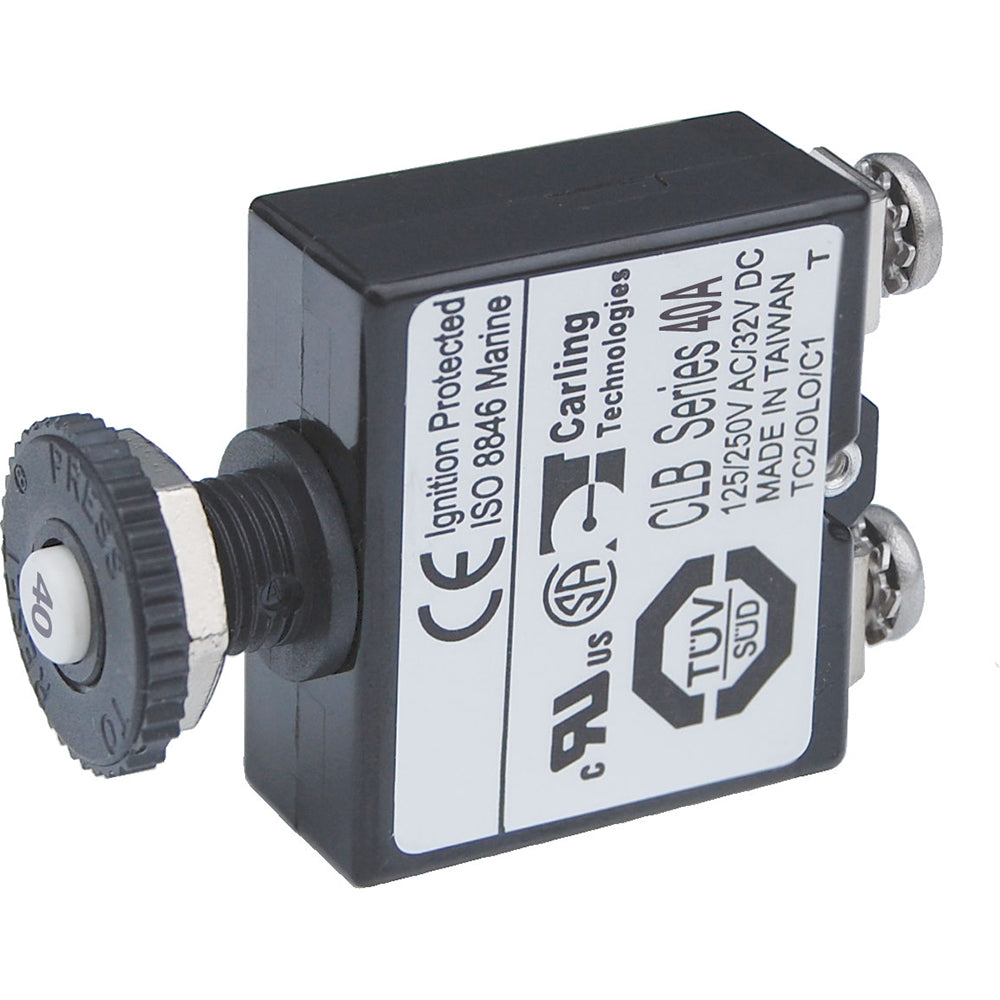

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps [2137]

Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps

Features:

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 40A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10° C

• Maximum Operating Temperature: 60° C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Amperage: 40a
  • Box Dimensions: 1"H x 3"W x 5"L WT: 0.08 lbs
  • UPC: 632085021375
