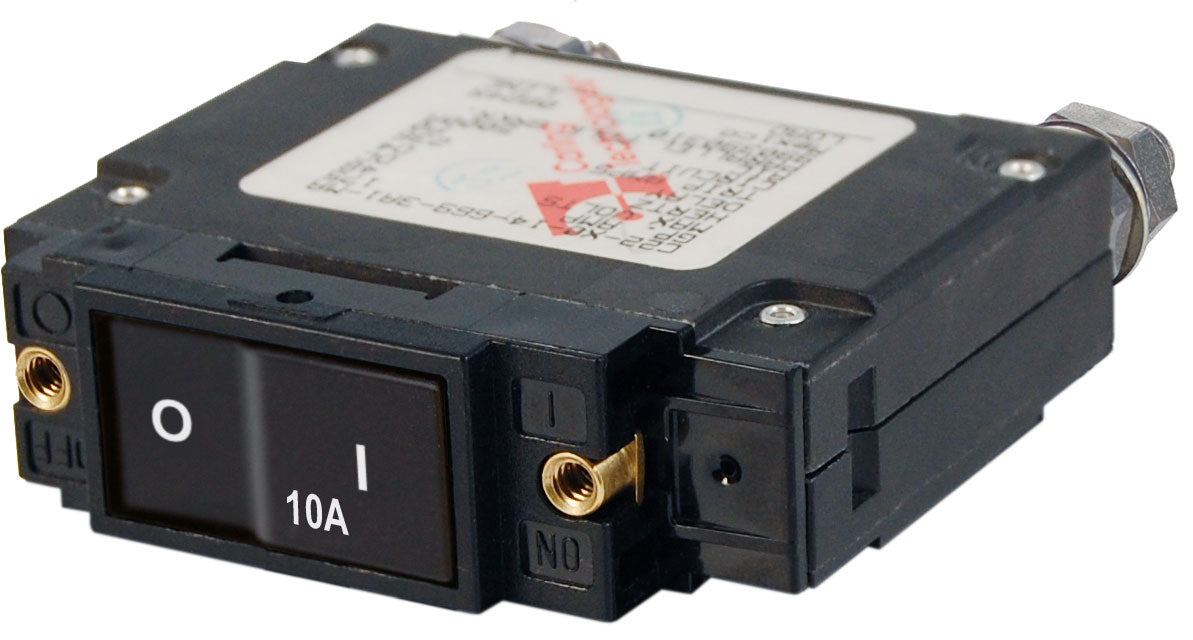

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Single Pole 10A

Model: 7541-BSS
  • Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
  • Color actuator indicates "OFF" position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free"-cannot be held closed after trip
  • Ignition protected-safe for installation aboard gasoline powered boats
Specifications
Amperage 10A AC / 10A DC
Actuator Style Flat Rocker
Poles 1
Maximum Voltage 240V AC / 48V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Stud 1/4-20 Tin-Plated Brass
Terminal Stud Torque 35 in-lb (3.95 Nm)
Interrupt Capacity 3000A @ 120V AC, 3500A @ 240V AC, 5000A @ 32V DC
Minimum Operating Temperature -40 deg C
Maximum Operating Temperature 85 deg C
Mounting Screw 6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.28lb (0.13 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Brand: Blue Sea

UPC: 632085075415

Model Number: 7541-BSS

Weight: 0.28
