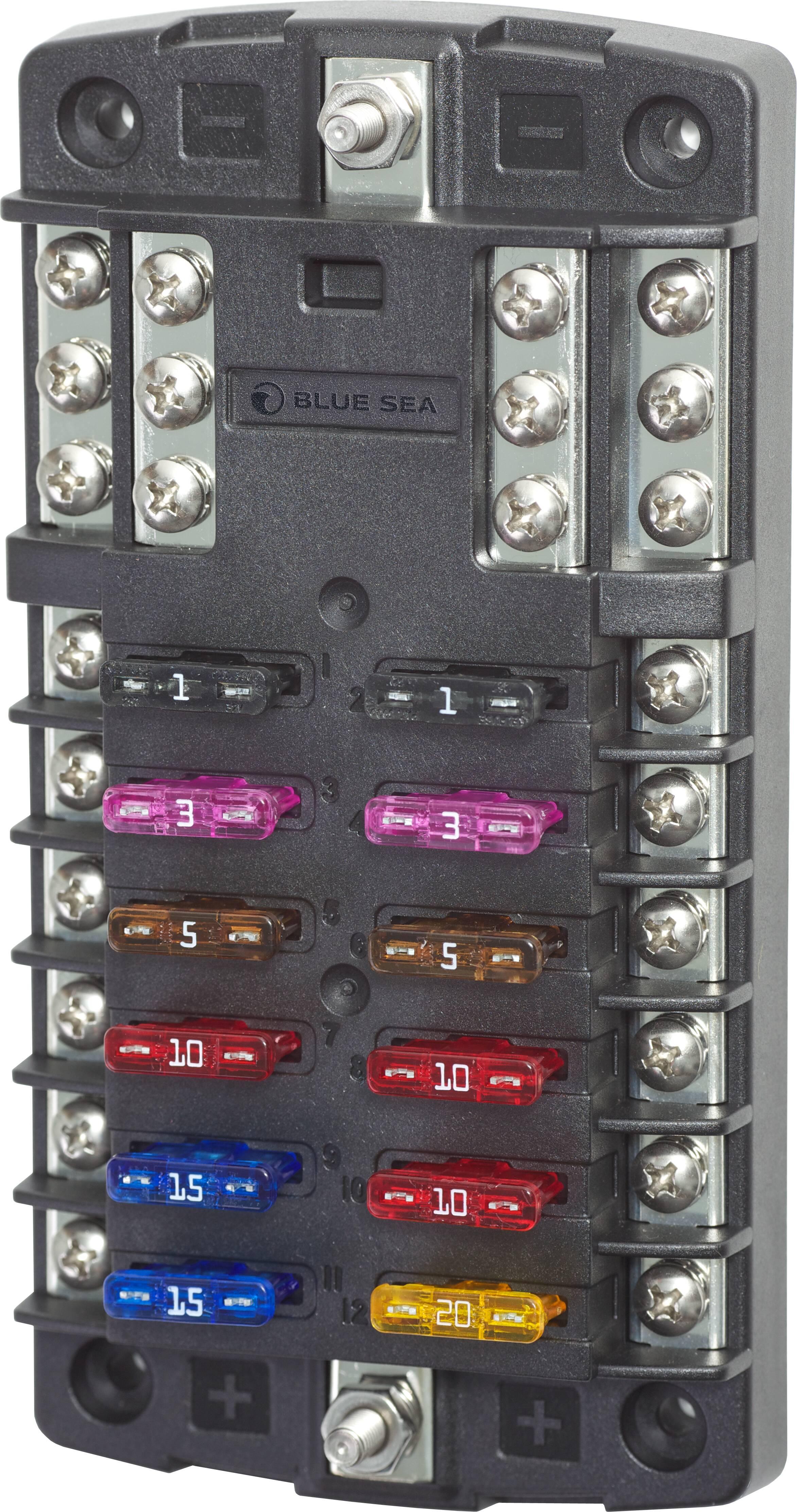

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus
Model: 5031-BSS
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

Consolidates branch circuits and in-line fuses.


Specifications
Circuits 12
Maximum Amperage 100A per block, 30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 Nm)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.65 lb (0.29 kg)
