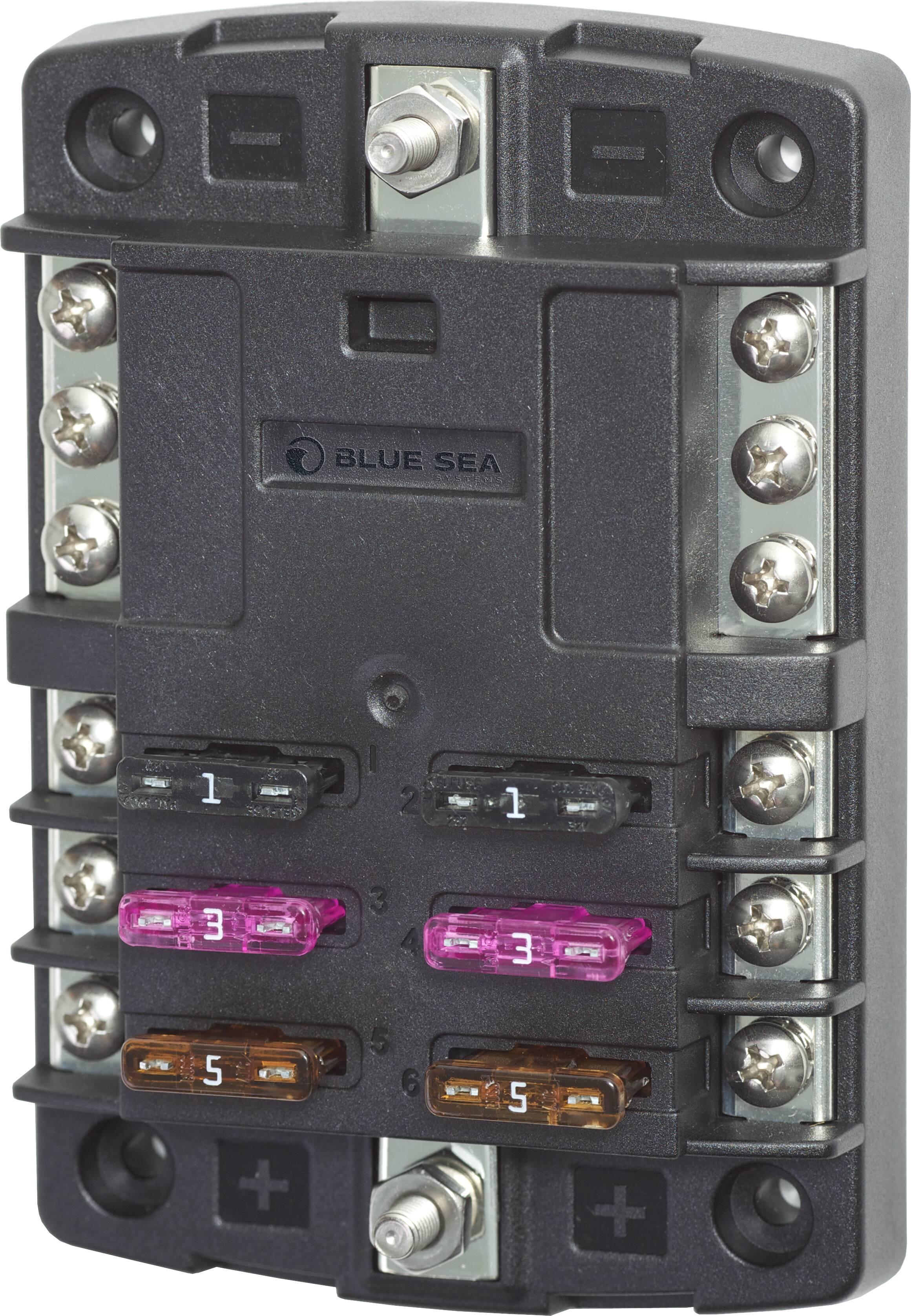

Blue Sea 5030 ST Blade Fuse Block - 6 Circuits with Negative Bus

Blue Sea 5030 ST Blade Fuse Block - 6 Circuits with Negative Bus

Vendor: Blue Sea
SKU: wt-BSS5030
Availability: Out Of Stock
$67.82
$98.11
$67.82
Subtotal: $67.82
Description
Description
x
Blue Sea Systems ST Blade Fuse Block - 6 Circuits with Negative Bus
Model: 5030-BSS
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

Consolidates branch circuits and in-line fuses.


Specifications
Circuits 6
Maximum Amperage 100A per block, 30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 Nm)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.47 lb (0.21 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea

UPC: 632085050306

Model Number: 5030-BSS

Weight: 0.47
