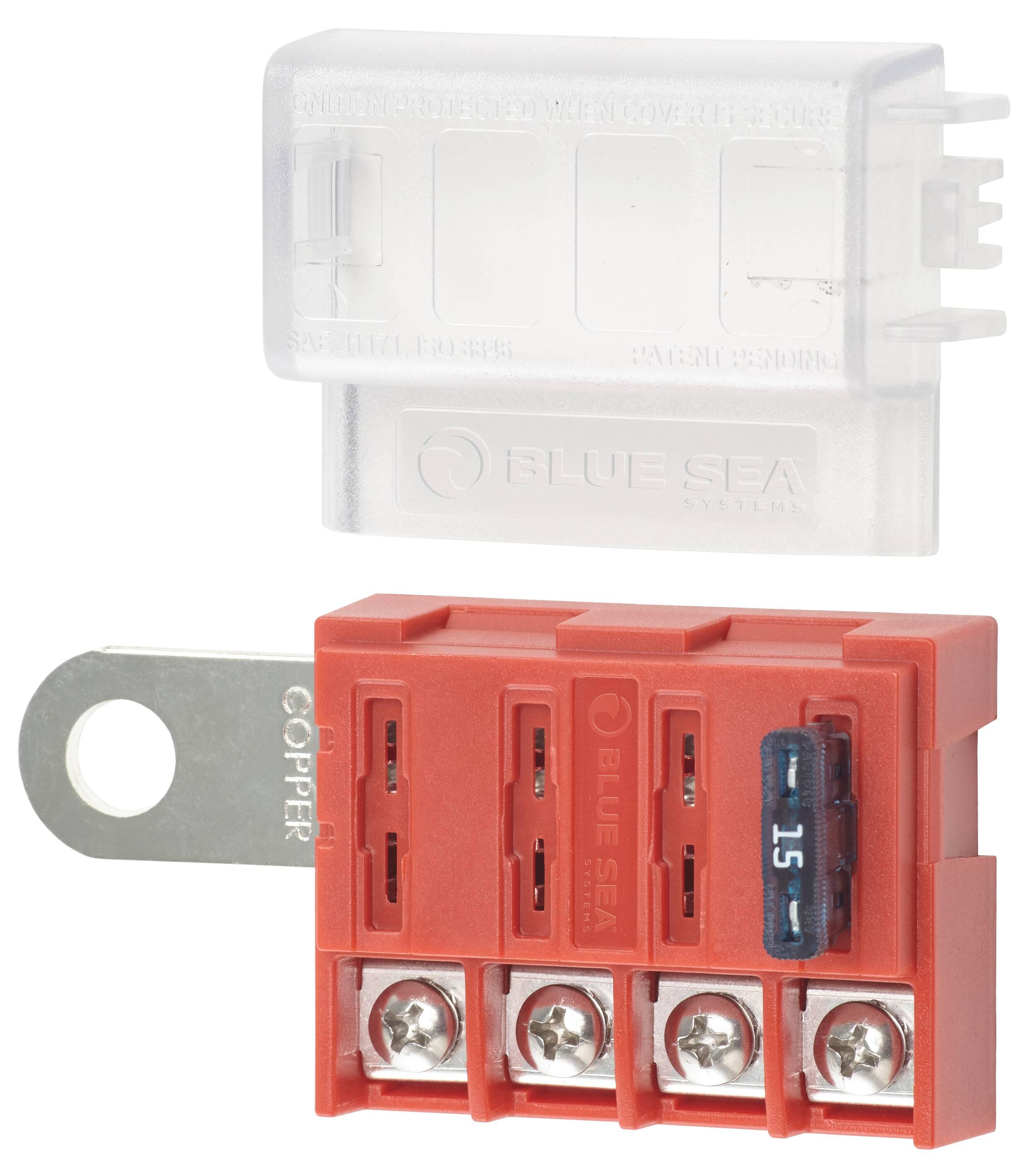

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block
Model: 5023-BSS
  • Easy to install 4 ATO®/ATC® fused circuits
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Four Nylon insulated ring terminals included
  • Insulating cover included
  • Accepts Small Format Circuit Labels
  • Includes 1 fuse

Specifications
Circuits 4
Maximum Amperage 100A per block, 30A per circuit
Maximum Voltage 32V DC
Mounting Clearance for 3/8 in [M10] stud
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.25 lb (0.11 kg)

What's in the Box:
  • 1 x ATO / ATC Fuse - 15 Amp (5242)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea

UPC: 632085050238

Model Number: 5023-BSS

Weight: 0.25
