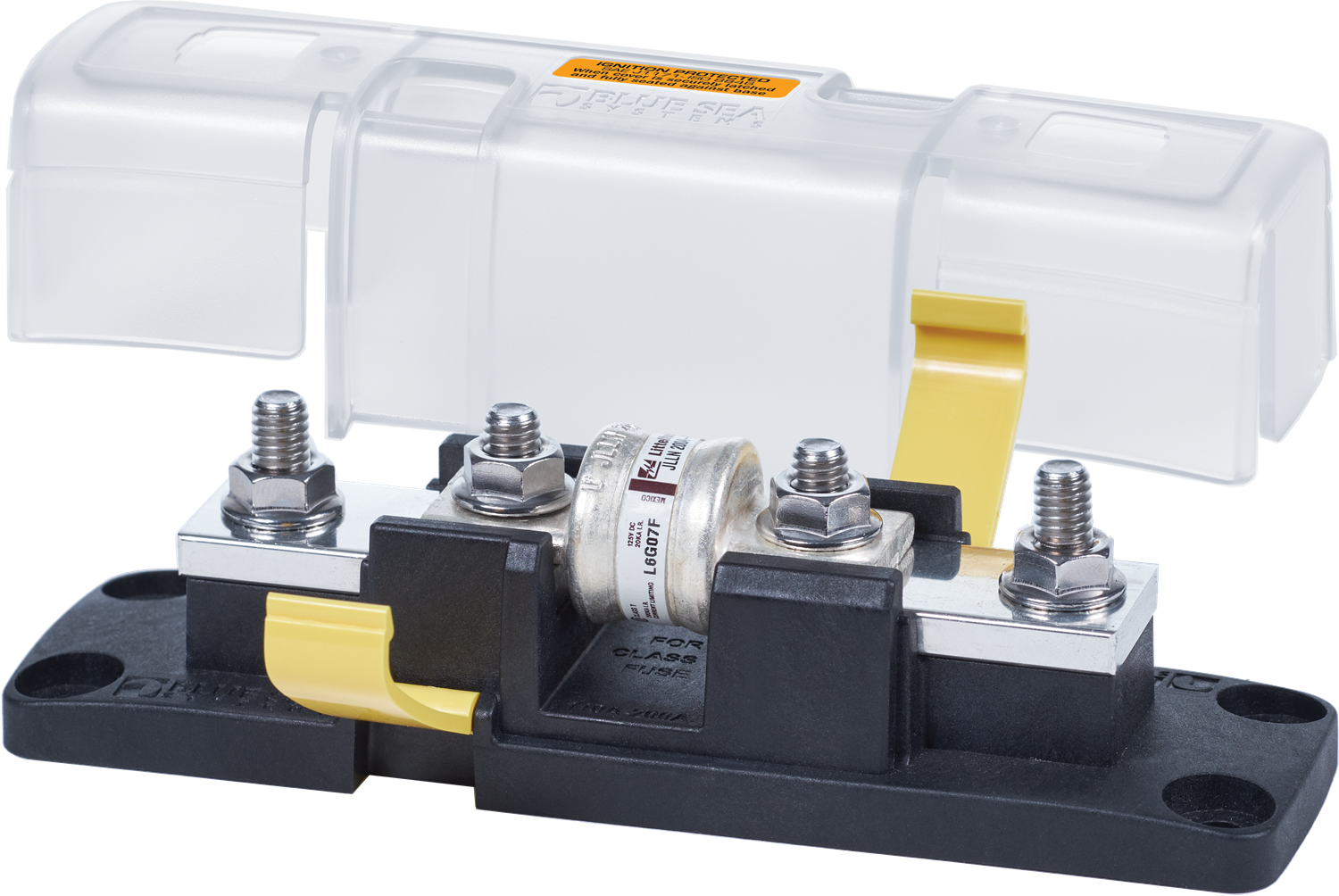

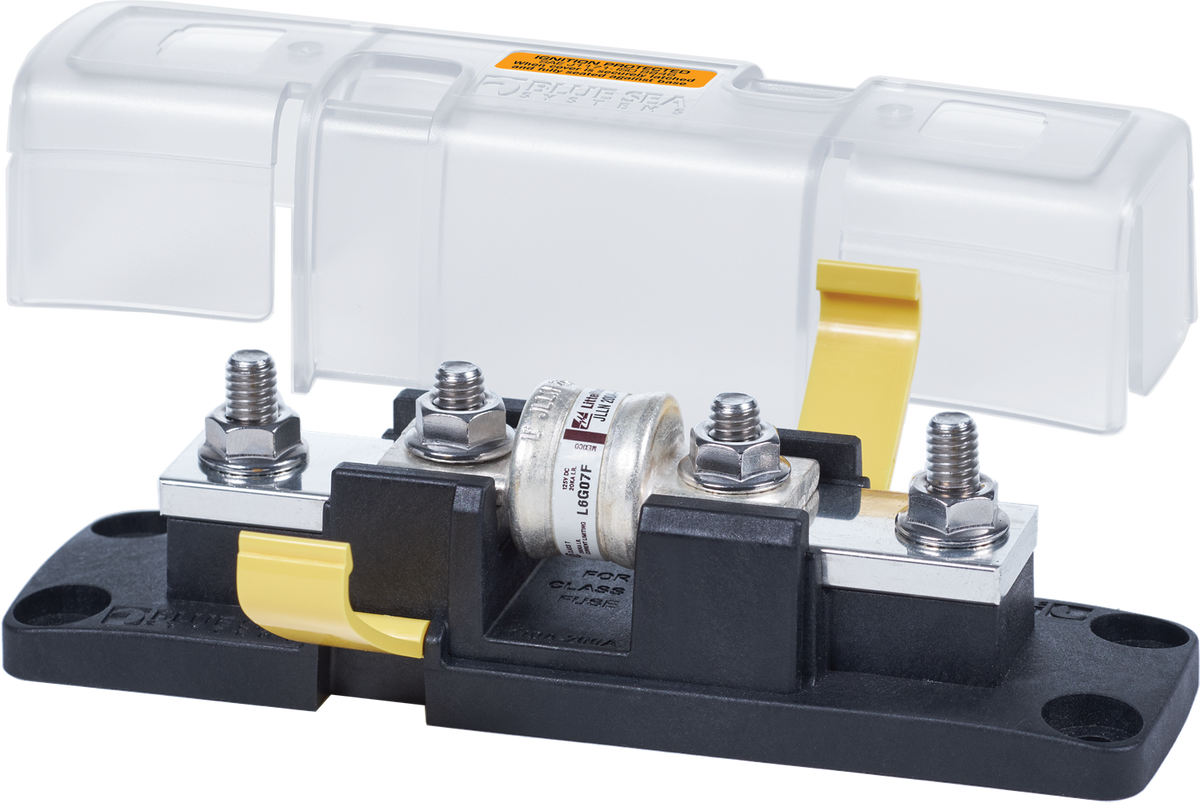

Blue Sea 5007100 Class T Fuse Block with Insulating Cover 110 to 200 Amp

Blue Sea 5007100 Class T Fuse Block with Insulating Cover 110 to 200 Amp

Vendor: Blue Sea
SKU: wt-BSS5007100
Availability: Out Of Stock
$98.48
$142.46
$98.48
Subtotal: $98.48
Description
Description
x
Blue Sea Systems Class T Fuse Block with Insulating Cover - 110 to 200A
Model: 5007100-BSS
  • Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • Stud design ensures secure fuse mounting even with high heat
  • Stainless steel studs provide resistance to corrosion and high torque
  • One-piece stainless flange nuts ensure safe and secure connections
  • UL 94-V0 base resists high heat
  • Ignition Protected

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.


Specifications
Cable Size Up to 4/0 AWG
Ignition Protected Yes
Maximum Amperage 160A
Maximum Voltage 160V DC
Fuse Mounting Blocks Tin-Plated Copper
Maximum Torque 72 in-lb (8.13 Nm)
Mounting Fastener Size 1/4 in or M6 Hardware
Terminal Stud Size 1/4 in-20 (M6)
Weight 1.10 lb (0.5 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea

UPC: 632085500719

Model Number: 5007100-BSS

Weight: 1.1
