Blue Sea 1202 120V AC Main + 6 Positions - Vertical [1202]

Blue Sea 1202 120V AC Main + 6 Positions - Vertical [1202]

120 Volt AC Main + 6 Position - VerticalFeatures: All circuit label positions are backlit "ON" indicating...
Vendor: Blue Sea Systems
SKU: 57237
Availability: In stock
Product type: Electrical Panels
$521.86
$896.61
$521.86
Subtotal: $521.86
Description
Description
x

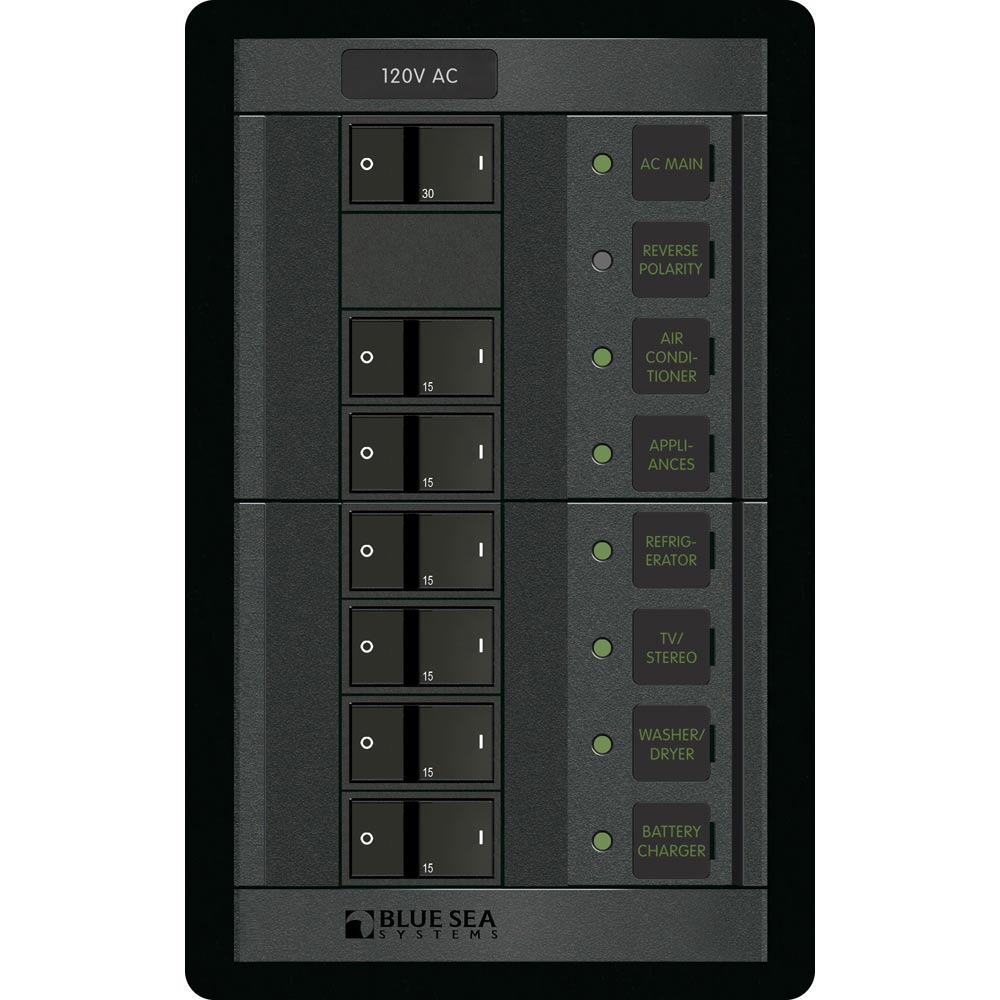

120 Volt AC Main + 6 Position - Vertical

Features:

  • All circuit label positions are backlit
  • "ON" indicating LEDs installed in all circuit positions
  • Includes 4206-Square Format Label Set


Specifications:
  • Positions: 6
  • Nominal Voltage: 120V AC
  • Maximum Amperage*: 100A
  • Height: 7.75" (196.85mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.00" (76.2mm)
  • Weight: 2.70lb (1.22kg)


Includes:
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 6"H x 6"W x 12"L WT: 2.6 lbs
  • UPC: 632085012021

Quick Guide (pdf)
Owner's Manual (pdf)
