Airmar SS175C-0-MW 0d Tilt Medium CHIRP Ultra Wide With Bare Wire MMC

Airmar SS175C-0-MW 0d Tilt Medium CHIRP Ultra Wide With Bare Wire MMC

Airmar SS175MW Medium Ultra-Wide 0 deg Tilted ElementTM Thru-Hull - With MMC-0 Bare Wire Mix-N-Match CableModel: SS175C-0-MW-0...
Vendor: Airmar
SKU: wt-AIRSS175C0MW0
Availability: In stock
$3,500.51
$3,500.51
$3,500.51
Subtotal: $3,500.51
Description
Description
x

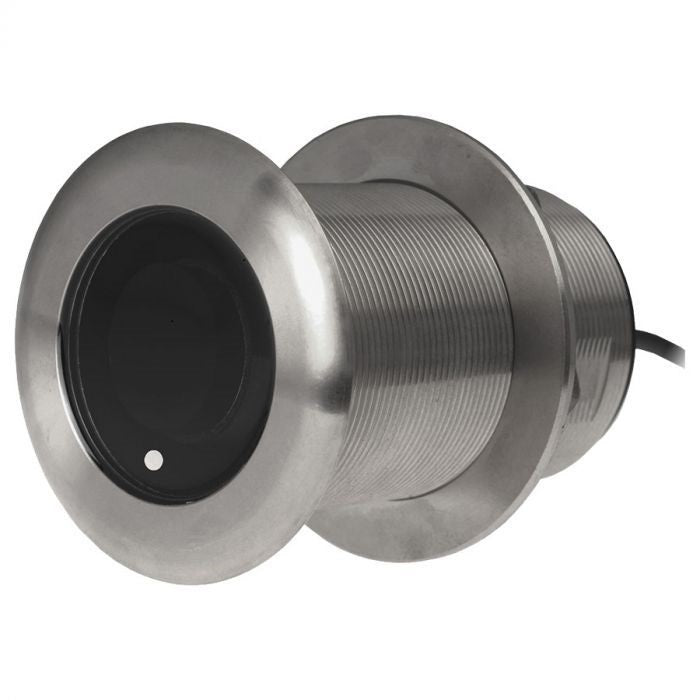

Airmar SS175MW Medium Ultra-Wide 0 deg Tilted ElementTM Thru-Hull - With MMC-0 Bare Wire Mix-N-Match Cable

Model: SS175C-0-MW-0
  • Fixed 0 deg tilted version for 0 deg to 7 deg hull deadrise
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300#39;)
  • Medium frequency: 60-100 kHz
  • 57 deg to 73 deg beamwidth (port/starboard)
  • 16 deg average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID(R) technology

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted ElementTM Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR's most popular Tilted Element housings which includes a ceramic element fixed at a 20 deg, 12 deg or 0 deg angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************

Specifications
Power Rating
1 kW
Max Deadrise Angle 24 deg
Housing Stainless Steel
Functions Depth, Temperature
Hull Material All hull materials
Max Vessel LOA Up to 11 m (36 feet)
Hole Size 95 mm (3-3/4)
Mounting Style Tilted Element Thru-Hull
Acoustic Window Urethane
Cable-Length 9 m (30 feet)
Max Depth 400 m (1300 feet)
Medium Frequency 60-100 kHz
Medium Frequency Beamwidth 57 deg to 73 deg (Port/Starboard) X 16 deg average (Fore/Aft)
Single or Dual Frequency CHIRP-Ready Single-Band
Water Temperature -10 deg to 40 degC (14 deg to 104 degF)
Weight 2.7 kg (6 lb.)

What's in the Box:
  • SS175C-0-MW-MM Medium CHIRP 0 deg Tilted Element
  • MMC-0 Bare Wire Mix-N-Match Cable
    • "

Brand: Airmar

Model Number: SS175C-0-MW-0

Weight: 12
