Airmar B265C-LH Bronze TH Low/High CHIRP With Navico 9-Pin Y-Cable

Airmar B265C-LH Bronze TH Low/High CHIRP With Navico 9-Pin Y-Cable

Airmar B265C-LH Bronze Thru Hull with Navico 9-Pin Mix-N-Match Y-CableModel: B265LH-9N2 Depth and fast-response water-temperature sensing 1...
Vendor: Airmar
SKU: wt-AIRB265CLH9N2
Availability: Out Of Stock
$2,931.10
$3,228.46
$2,931.10
Subtotal: $2,931.10
Description
Description
x

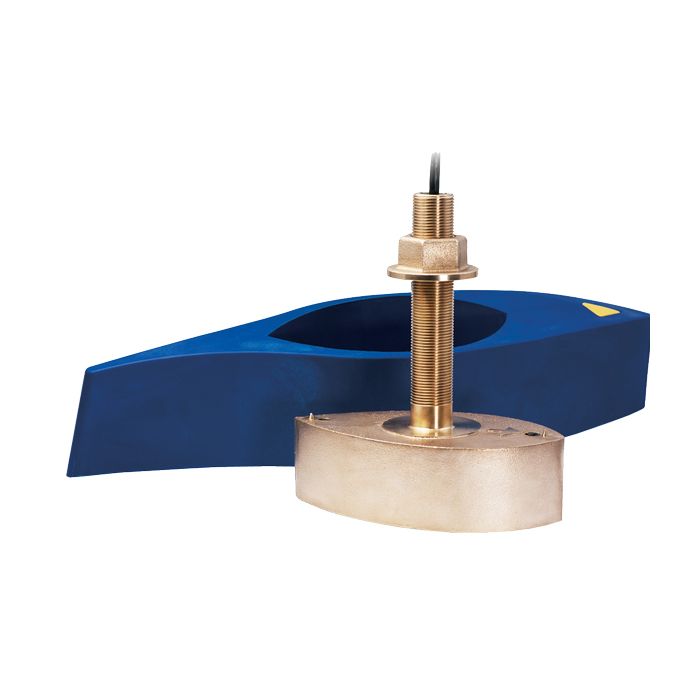

Airmar B265C-LH Bronze Thru Hull with Navico 9-Pin Mix-N-Match Y-Cable

Model: B265LH-9N2
  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep-water performance
  • Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet)
  • High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet)
  • 103 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Bronze housing with High-performance Fairing for optimal high-speed performance
  • Patented Xducer ID(R) technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar's B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, beam-perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications
Cable-Length
9 m (30 feet)
Frequency Band Low-High
High Frequency 130-210 kHz
High Frequency Beamwidth 10 deg-6 deg
Low Frequency 42-65 kHz
Low Frequency Beamwidth 25 deg-16 deg
Housing Material Bronze
Max Deadrise Up to 20 deg with fairing
Max Depth Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet)
Mounting Style Thru-Hull with Fairing
Power Rating 1 kW
Single or Dual Frequency CHIRP-Ready Dual-Band
Transducer Functions Depth, Temperature
Usable Shaft Length 121 mm (4.75)

What's in the Box:
  • B265C-LH-MM Transduer
  • High Speed Fairing Block
  • High Speed Fairing Block Bolt Kit
  • MMC-9N2 Cable
    • "

Brand: Airmar

Model Number: B265C-LH-9N2

Weight: 24.9
