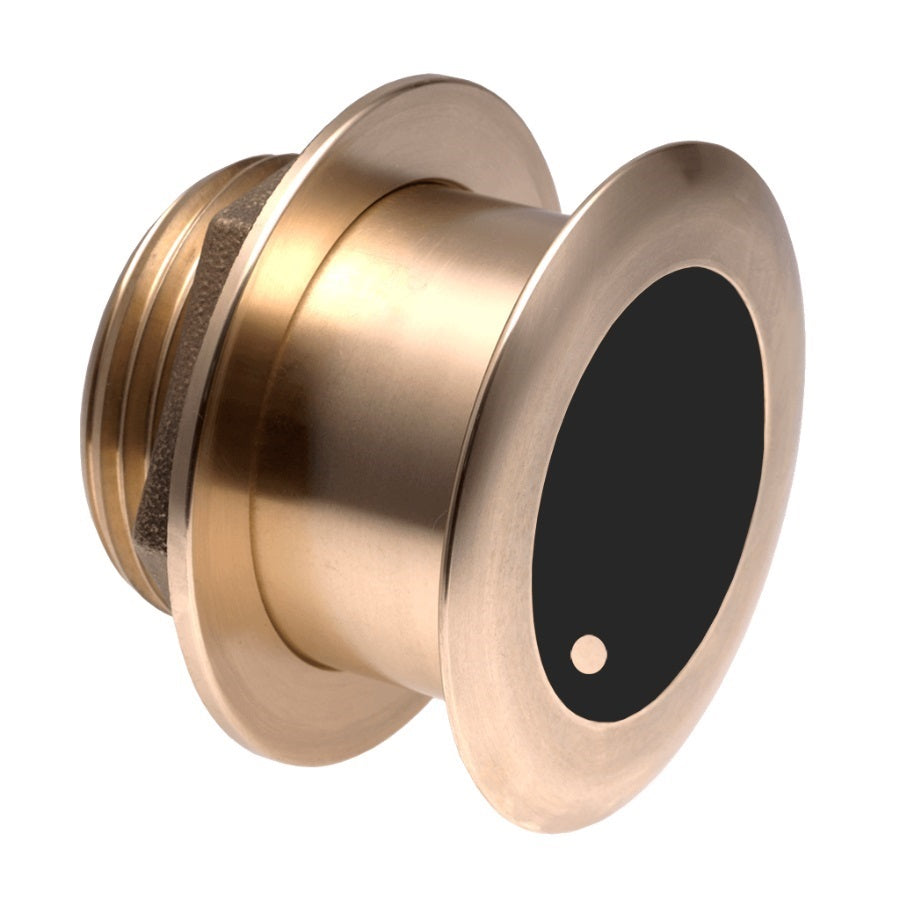

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Humminbird 14-Pin MMC

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Humminbird 14-Pin MMC

Airmar B175MW Medium Ultra-Wide 12 deg Tilted ElementTM Thru-Hull - Humminbird 14-Pin Mix-n-Match CableModel: B175C-12-MW-14HB Fixed 12...
Vendor: Airmar
SKU: wt-AIRB175C12MW14HB
Availability: In stock
$2,889.38
$3,179.89
$2,889.38
Subtotal: $2,889.38
Description
Description
x

Airmar B175MW Medium Ultra-Wide 12 deg Tilted ElementTM Thru-Hull - Humminbird 14-Pin Mix-n-Match Cable

Model: B175C-12-MW-14HB
  • Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300#39;)
  • Medium frequency: 60-100 kHz
  • 57 deg to 73 deg beamwidth (port/starboard)
  • 16 deg average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Bronze housing for use on stepped, planing or displacement hull
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID(R) technology

AIRMAR's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted ElementTM Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 deg port-starboard to 16 deg average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar's new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications
Power Rating
1 kW
Housing Bronze
Functions Depth, Temperature
Hull Material Fiberglass or wood
Max Vessel LOA Up to 11 m (36 feet)
Hole Size 95 mm (3-3/4)
Mounting Style Tilted Element Thru-Hull
Acoustic Window Urethane
Cable-Length 9 m (30 feet)
Max Depth 400 m (1300 feet)
Medium Frequency 60-100 kHz
Medium Frequency Beamwidth 57 deg to 73 deg (Port/Starboard) X 16 deg average (Fore/Aft)
Water Temperature -10 deg to 40 degC (14 deg to 104 degF)
Cable End Mix-N-Match

What's in the Box:
  • B175C-12-MW-MM Medium Ultra-Wide Chirp

Brand: Airmar

Model Number: B175C-12-MW-14HB

Weight: 13
