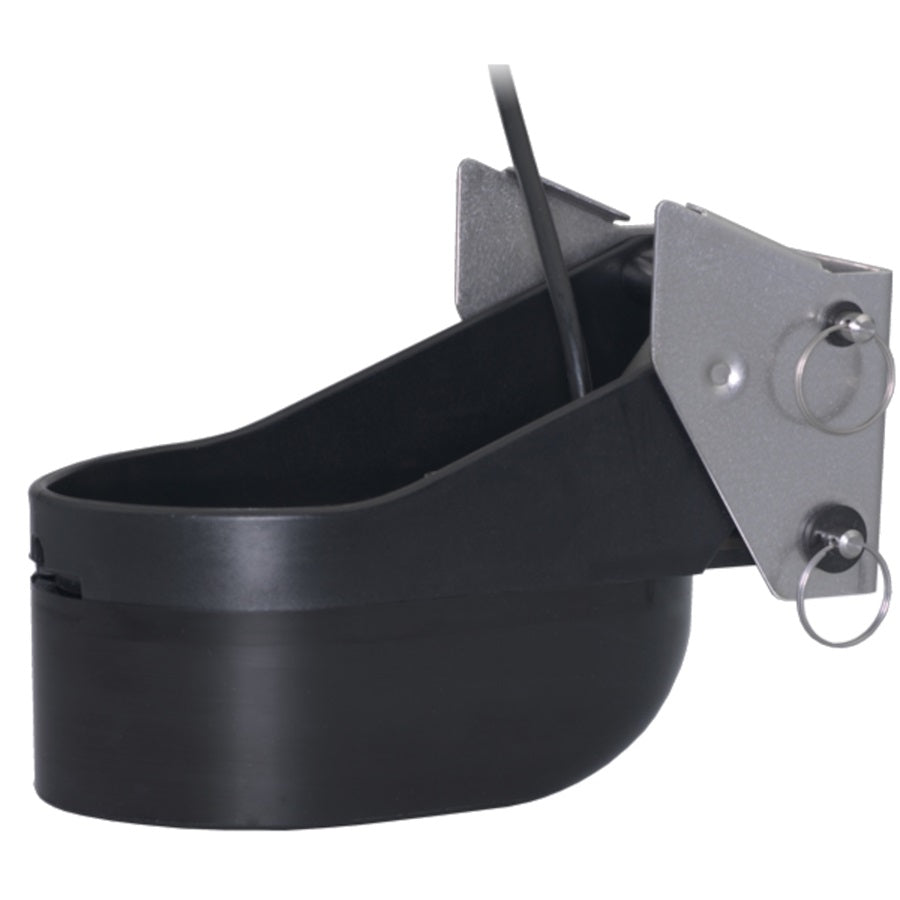

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount
Model: A80803AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60?100 kHz.
The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.
Specifications| Power Rating | 1 kW |
| Transom Angle | 2° to 22° |
| Functions | Depth, Temperature |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30') |
| Common Use | Leisure/Yachting, Fishing |
| Country of Origin | USA |
| Freq Med Wide | 60-100 kHz |
| Housing | Urethane/Stainless Bracket |
| Hull Material | Compatible w/ all hull materials |
| Max Depth | 400 m (1300') |
| Medium Frequency | 60-100 kHz |
| Medium-Wide Beamwidth | 57° to 73° beam p/s 16° average f/a |
| Mounting Style | Transom |
| Power Rating | 1 kW |
| Retractable housing | No |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Tilted Element | No |
| Weight | 4.2 kg (9.2 lb.) |
Brand: Raymarine
UPC: 723193862537
Model Number: A80803
Weight: 11.001000
