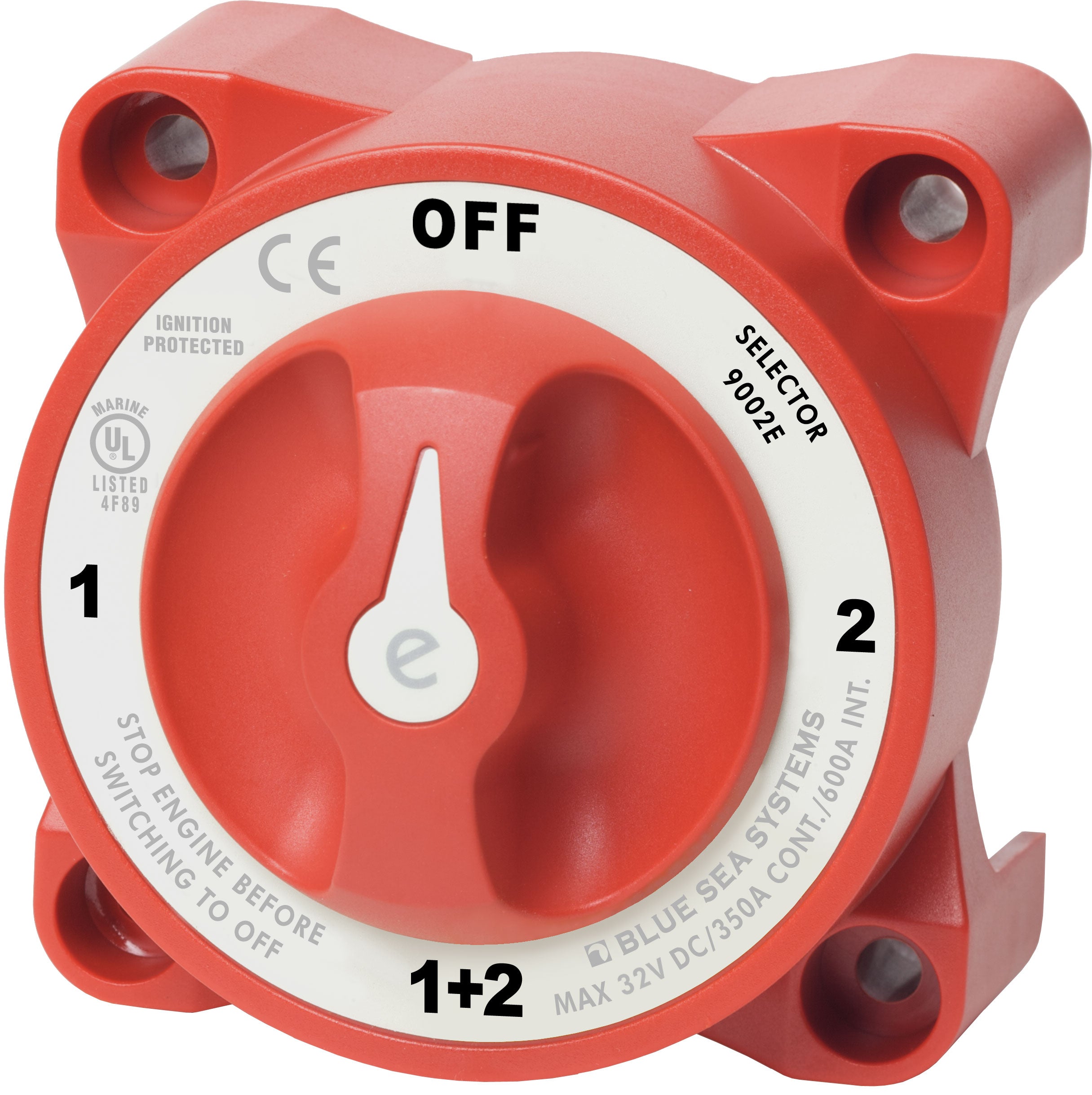

Blue Sea Systems e-Series Selector Battery Switch with AFD

Model: 9002E-BSS
  • 350 Amps continuous rating for inboard gasoline or diesel engines.
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 3/8" (M10) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface or rear panel mounting
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Make-before-break contact design allows switching without power interruption
  • Includes AFD (Alternator Field Disconnect)

Switches isolated battery banks to all loads or combines battery banks to all loads

Specifications
Switch Type Selector 4 Position
Color Red
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect Yes
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 350A
Intermittent Rating 600A (5 min)
Cranking Rating 30 sec 1200A per circuit
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm )
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085900250

Model Number: 9002e-BSS
