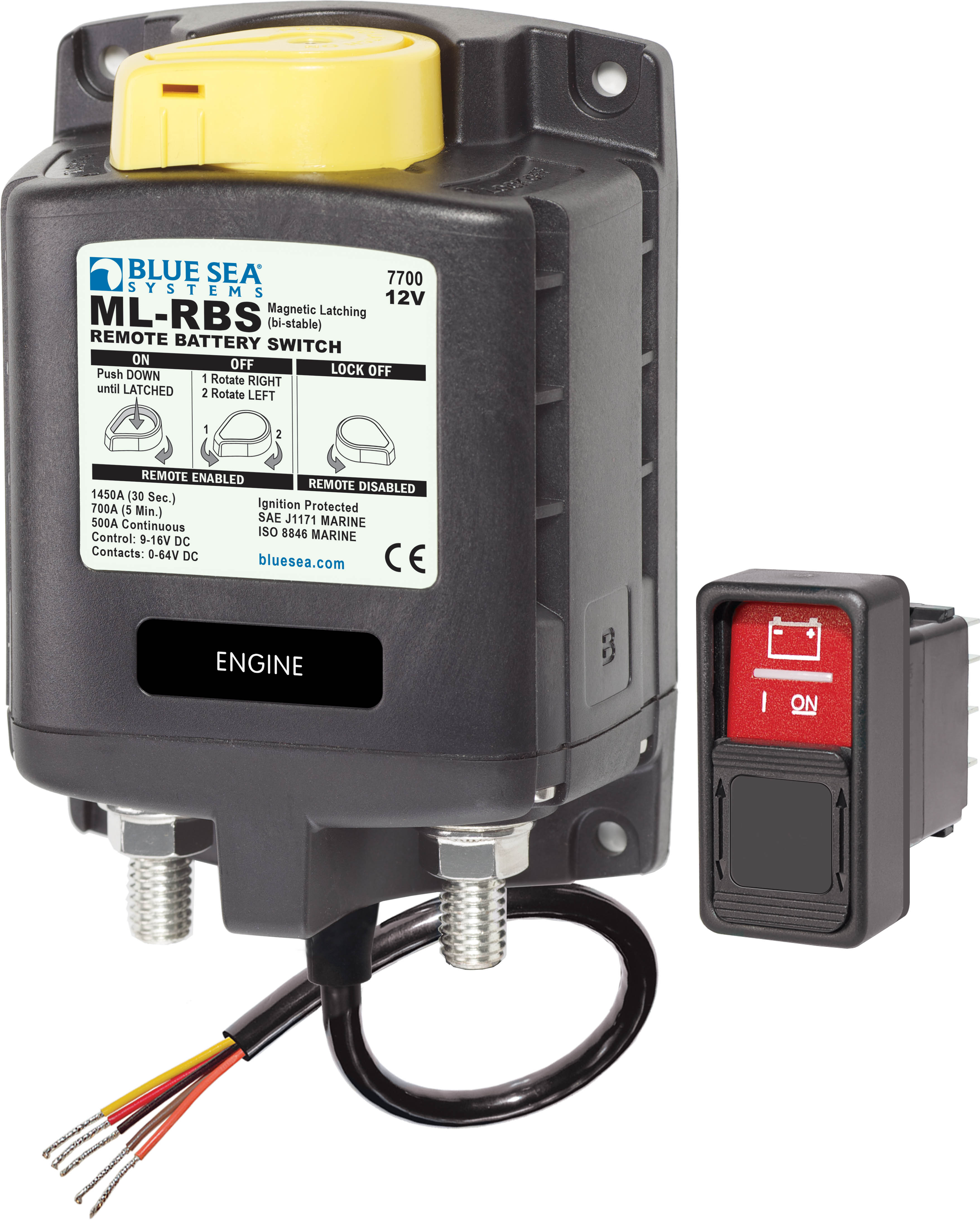

Blue Sea ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A

Model: 7700-BSS
  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7? 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

Specifications
Control Circuit Voltage 9-16V DC
Control Circuit Connection Tinned Wire
Nominal Voltage 12V DC
Manual Control Yes
Coil Function Bi-Stable
Amperage Operating Current 0mA
Amperage Operating Current when changing state <7A (40 ms)
Continuous Rating 500A
Intermittent Rating 700A - 5 minutes
Cranking Rating 30 sec 1450A DC
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Cable Size to Meet Ratings 2x (4/0)
Live Current Switching 300A @ 12V DC
Master Control Switch Capability No
Mechanical Endurance 100,000 Cycles
Terminal Ring Diameter Clearance 1.18in (29.97 mm)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 2.05lb (0.93 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085077006

Model Number: 7700-BSS
