Blue Sea Weather Deck Panel 12v 4 Gang Fuse Panel

Blue Sea Weather Deck Panel 12v 4 Gang Fuse Panel

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 4 PositionsModel: 4304-BSS Panel front...
Vendor: Blue Sea Systems
SKU: wt-BSS4304
Availability: In stock
$111.77
$173.42
$111.77
Subtotal: $111.77
Description
Description
x

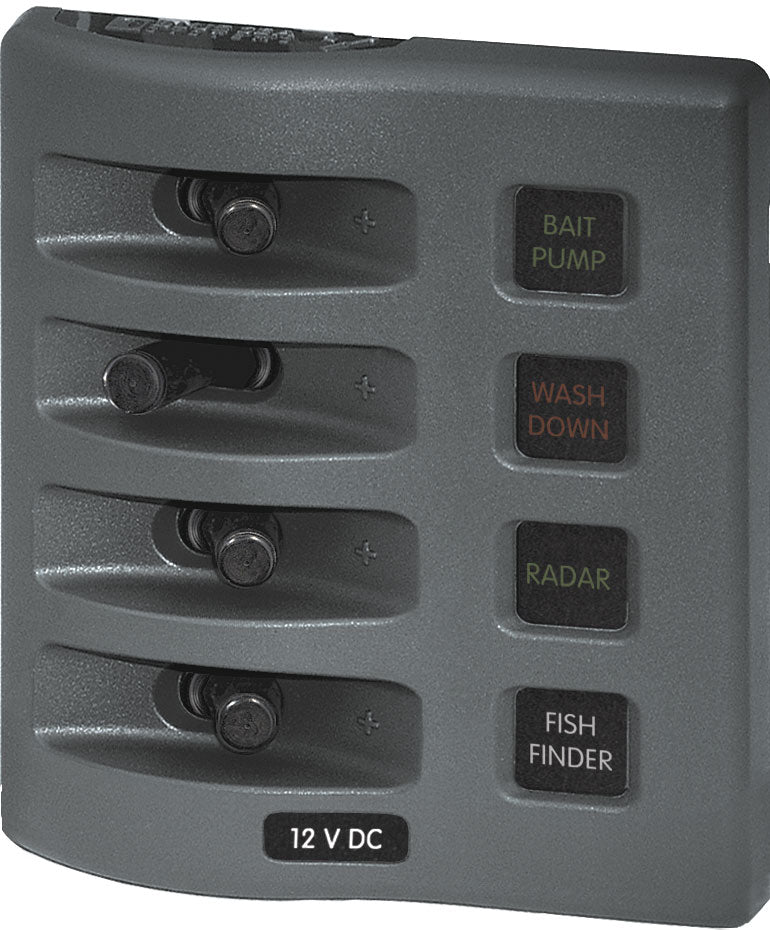

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 4 Positions

Model: 4304-BSS
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 — protected against immersion up to 1 meter for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting circuit for remote switching and dimming
  • Available in 2, 4, 6, and 8 circuit models
  • Each panel can be mounted in four different orientations
  • Integrated ATO/ATC fuse based circuit protection
  • Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
Specifications
Weatherproof Waterproof
Positions 4
Nominal Voltage 12vDC
Circuit Protection Fuse
Maximum Amperage 15A @ 12V DC (per circuit)
Panel Cumulative Rating 60A
Backlit Label Bicolored LED
Backlighting Amperage 10mA /Illuminated Circuit
Backlighting Voltage 12V DC
Material Reinforced Polycarbonate
Dimensions H x W x D 4.3in x 3.88in x 2.50in


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085043049

Model Number: 4304-BSS

Weight: 0.900000
