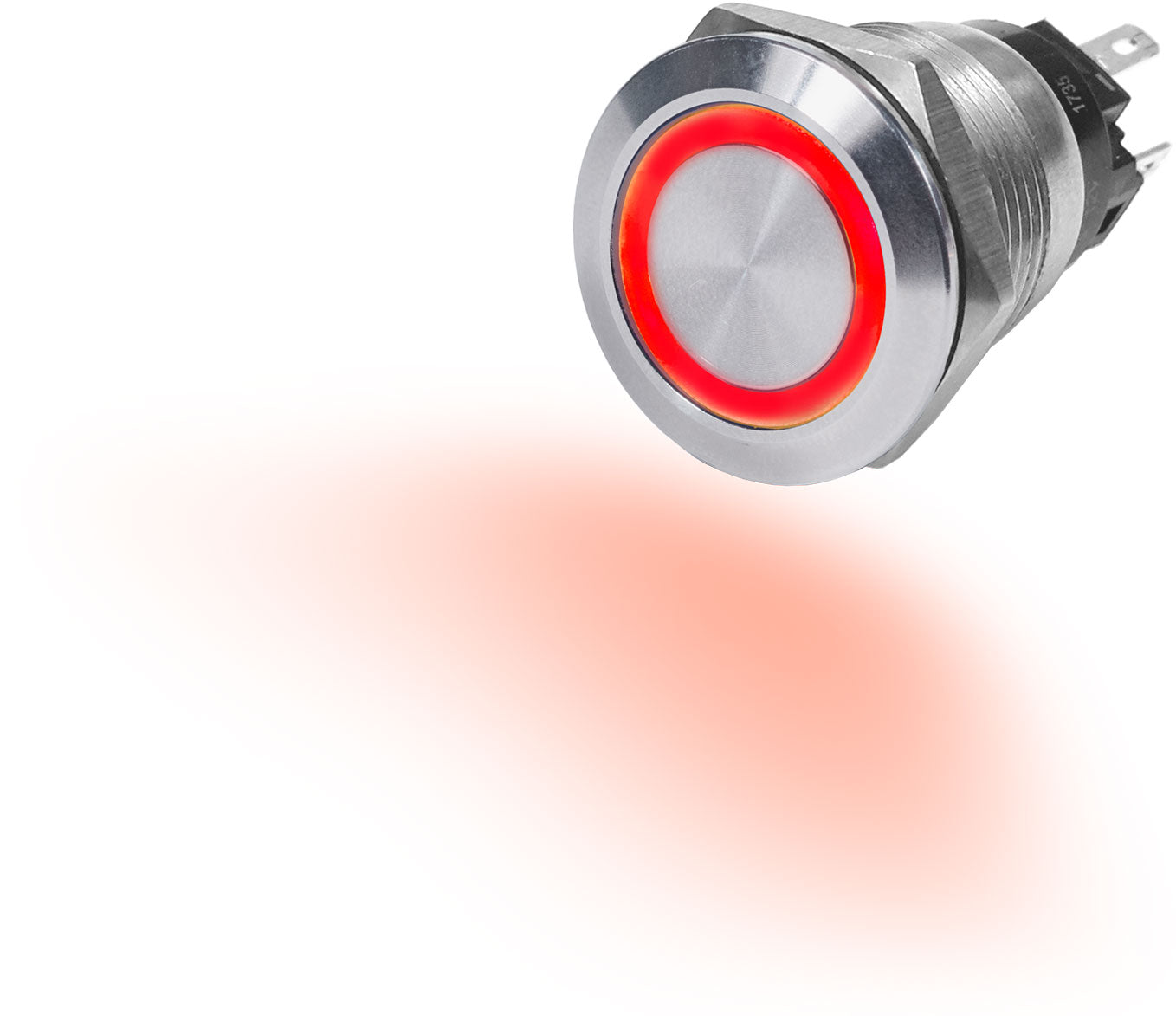

Blue Sea 10A Push Button LED Ring Switch Off-On Red

Model: 4162-BSS

• 10A continuous
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

Action	OFF-ON
Amperage	10A @ 12V DC Resistive 3A @ 12V Inductive
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Minimum Operating Temperature	-10° C
Maximum Operating Temperature	70° C
Minimum Storage Temperature	-55° C
Maximum Storage Temperature	85° C
Illumination	Independent — Separate contacts for LED power
Max Panel Thickness	0.31in (7.87 mm)
Mounting Hole	¾" (19mm)
Switching Cycles	40,000
Termination	5 — 0.110inch Quick Connect terminals

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085041625

Model Number: 4162-BSS

Weight: 0.200000
