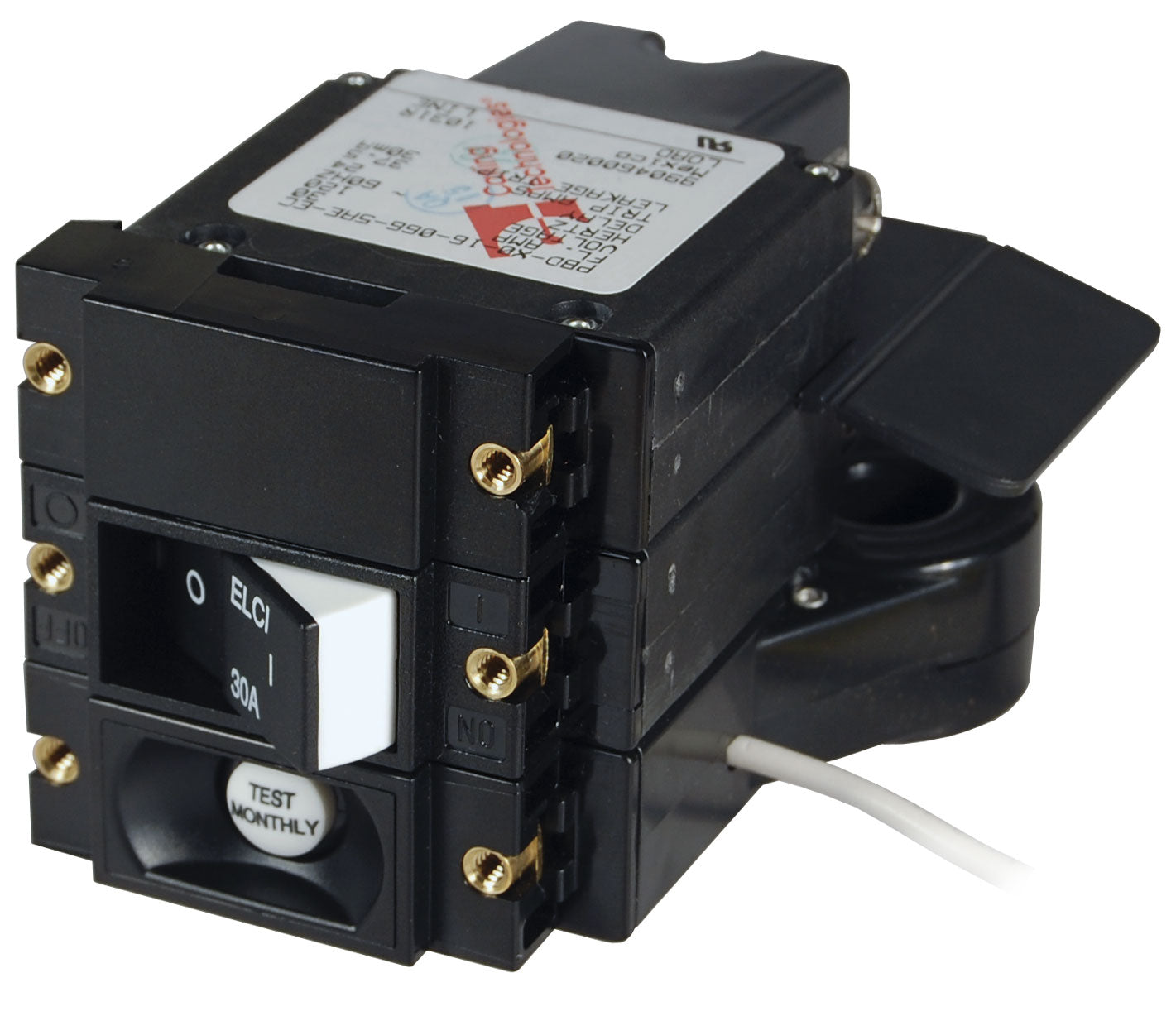

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Model: 3102100
  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel
Specifications
Amperage 30A
Actuator Style Flat Rocker
Poles 2
Ignition Protected Yes
Maximum Voltage 240V AC
120V AC per pole
Circuit Breaker Type 5000A
Minimum Operating Temperature -35° C
Maximum Operating Temperature 65° C
Leakage Trip Amps 30mA
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.85lb (0.39 kg)


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085310219

Model Number: 3102100-BSS

Weight: 0.850000
