Blue Sea M2 AC Multimeter

Blue Sea M2 AC Multimeter

Blue Sea M2 AC MultimeterModel: 1838-BSS Auto-dimming, bright OLED display is easy to read Easy to adjust...
Vendor: Blue Sea Systems
SKU: wt-BSS1838
Availability: Out Of Stock
$421.47
$556.43
$421.47
Subtotal: $421.47
Description
Description
x

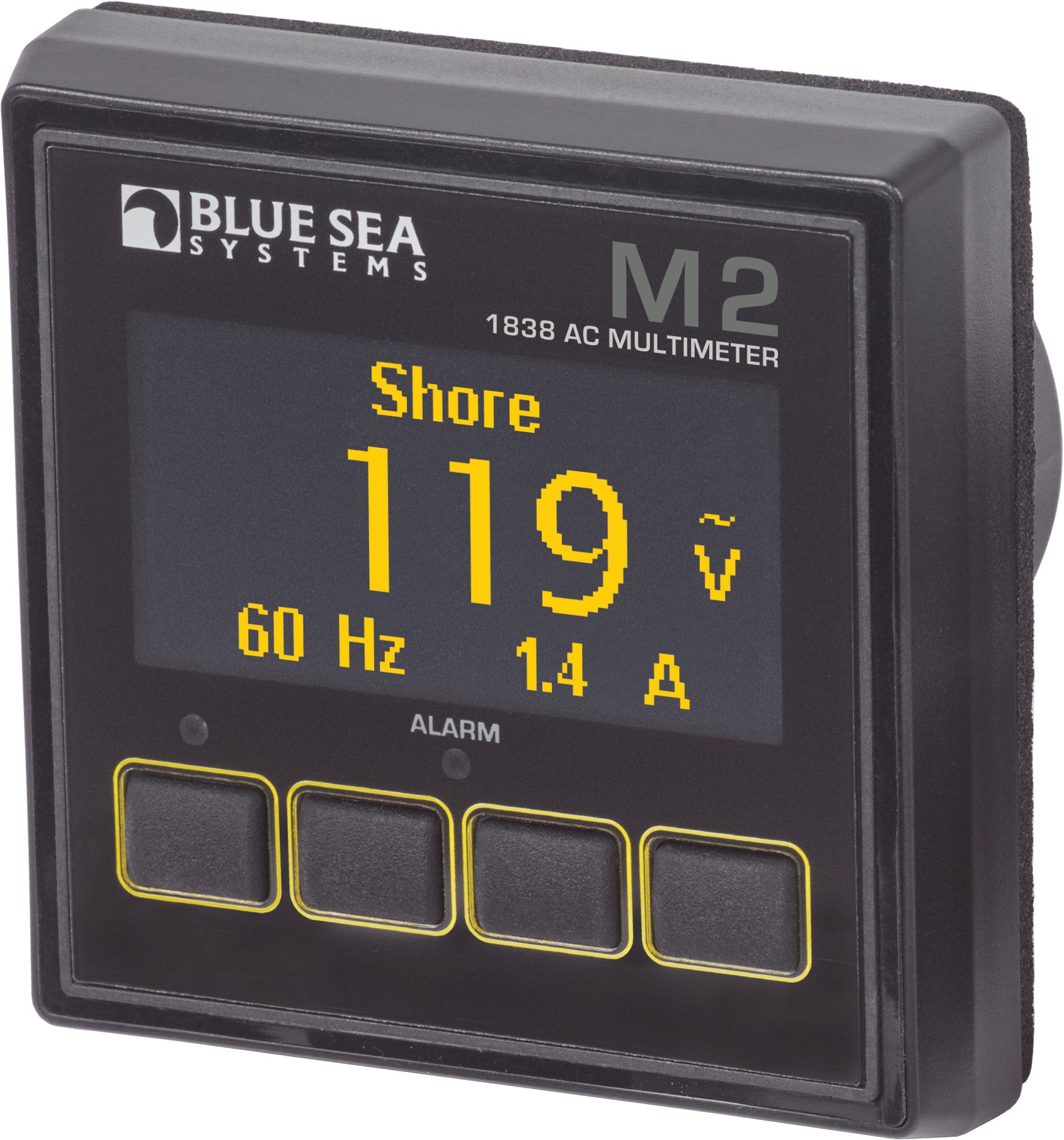

Blue Sea M2 AC Multimeter

Model: 1838-BSS
  • Auto-dimming, bright OLED display is easy to read
  • Easy to adjust
  • 80dB alarm on all models
  • Isolated MOSFET relay

Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)

Specifications
Meter Current, Frequency, Power, Voltage
Function 50 to 250 to 300A
Resolution 1V AC
Input Voltage 7-70V DC
Alarms High/Low Current
High/Low Frequency
High/Low Voltage
Current Accuracy ± 2.0%
Display Size 55mm x 28mm
Frequency Range 40-90Hz
Frequency Resolution 1Hz
Maximum Power Consumption 1.00 Watt
Minimum Power Consumption 0.3 Watt
Power Range 0-45kW
Power Resolution 10W (0-9990W)
0.1kW (10-45kW)
Voltage Accuracy ± 2.0%
Weight 4.00lb (1.81 kg)

What's in the Box:
  • M2 Head unit
  • Surface Mount Bezel and Seal
  • Surface Mount Gasket
  • Surface Mount Cover
  • Flat Mount Bezel
  • Flat Mount Clamp
  • Mounting Ring
  • Mounting Nut
  • AC Current Transformer 8256 (1X)
  • Connector
  • Screwdriver


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085018382

Model Number: 1838-BSS

Weight: 4.000000
