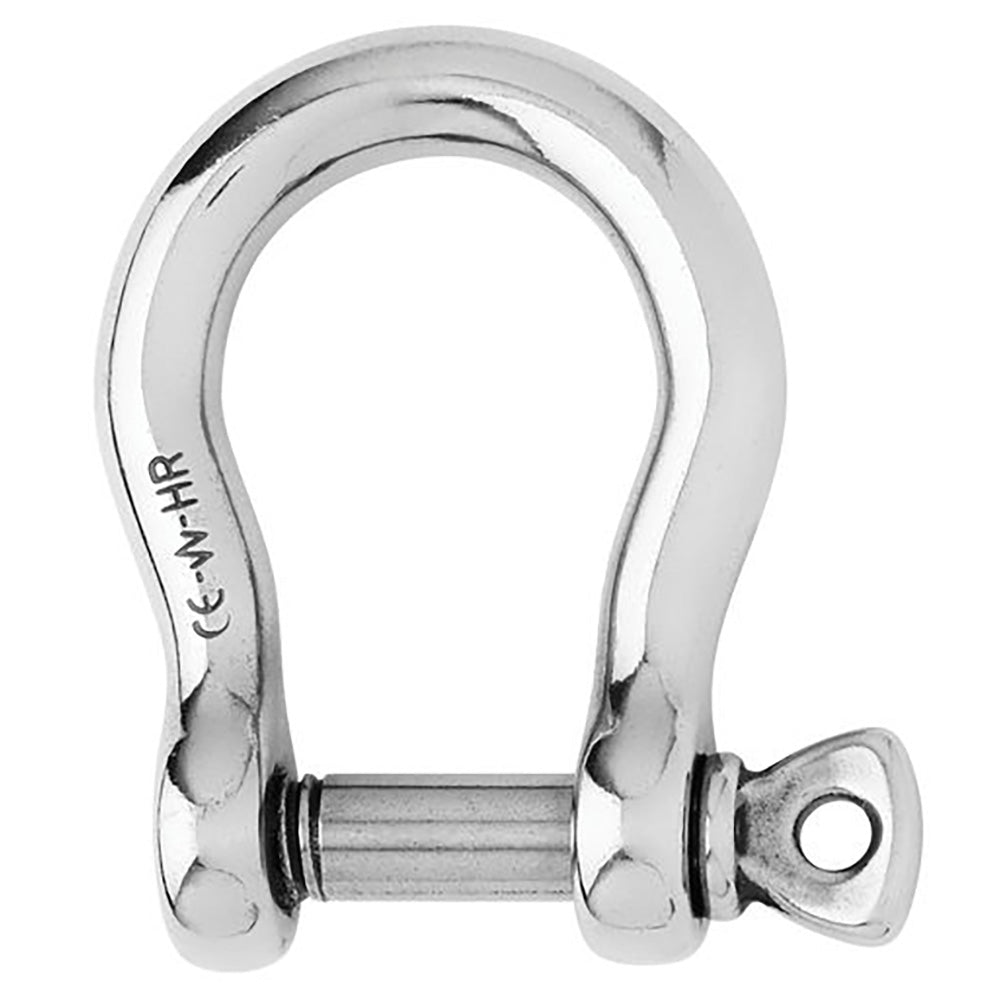

HR Bow Shackle - 24mm Diameter - 15/16"

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 28210 / (kg) 12800
  • WLL: (lb) 15430 / (kg) 7000
  • Breaking load: (lb) 77160 / (kg) 35000
  • Weight: (lb) 3.761 / (kg) 1.706

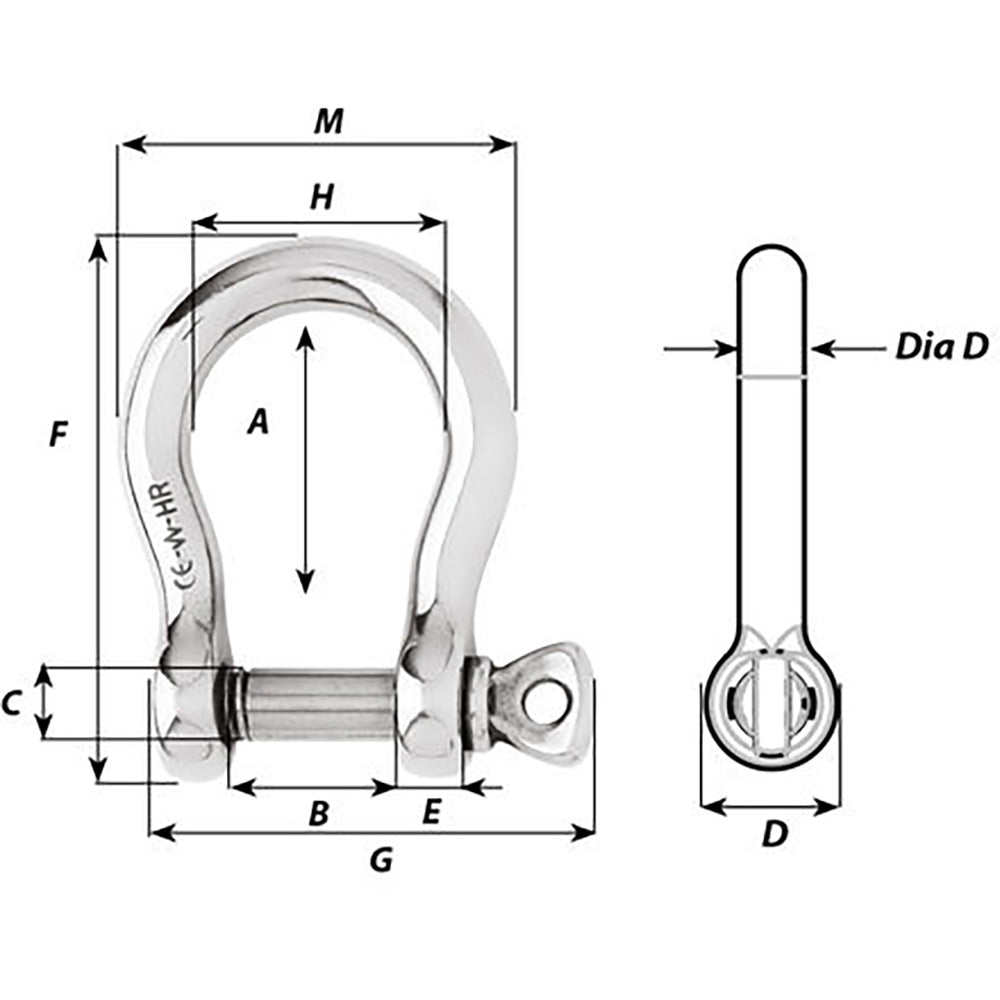

Dimensions:

  • A: (inch) 4 1/4" / (mm) 108
  • B: (inch) 1 57/64" / (mm) 48
  • C: (inch) 15/16" / (mm) 24
  • D: (inch) 1 27/32" / (mm) 47
  • D diameter: (inch) 15/16" / (mm) 24
  • E: (inch) 25/32" / (mm) 20
  • M: (inch) 4 41/64" / (mm) 118

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
