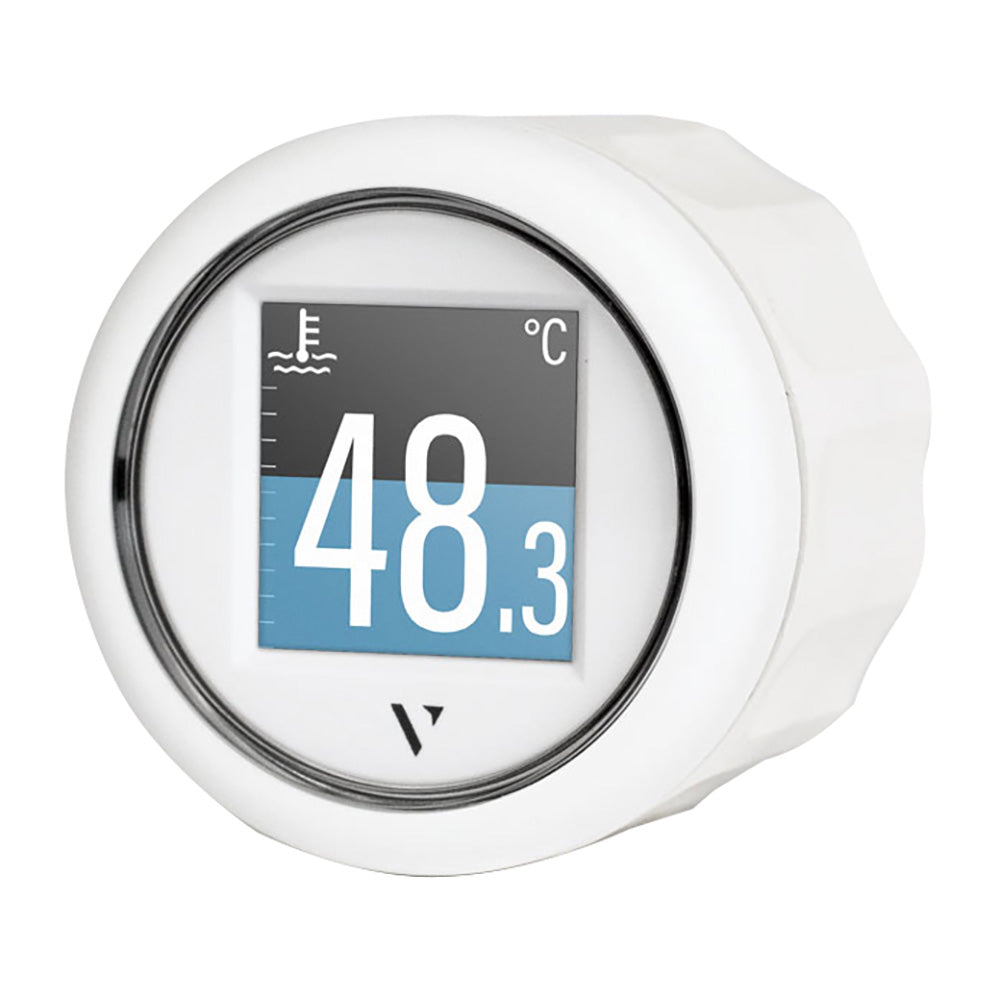

Veratron 52mm (2-1/16") ViewLine Flex Gauge - J1939 - White [B00110901]

52mm (2-1/16") ViewLine Flex Gauge - J1939 - White

Veratron's VL Flex 52 - J1939 was designed to meet the rigorous demands of commercial use. Supporting a broad range of sensors, the all-in-one round gauge is singularly unique in that it can display two sets of diesel engine data simultaneously and is easily configured using a mobile device and the companion Veratron app.

The VL Flex 52 - J1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data. It can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable PMMA lens with anti-glare.

*VL Flex Configurator App (Android or iOS)  has to be downloaded - no charge

Supported Configurations:

• Wheel Speed - Engine Load - Fuel Level - Oil Level - Oil Pressure - Boost Pressure - Coolant Pressure
• Coolant Temp - Battery Current - Brake Pressure - Gear Oil Level - Gear Oil Pressure - Battery Potential
• Air Temperature - Exhaust Temperature - Oil Temperature - Gear Oil Temperature - Fuel Rate
• Fuel Economy - Engine Speed - Odometer - Engine Hours - Total Fuel - Clock - DEF/BLUE Level
• Battery SOC/SOH - Battery Temperature - Battery Autonomy

Features:

• 1.44” sun-readable color TFT display
• J1939 Interface
• Front lens with anti-glare and anti-fog treatments
• 52mm (2-1/16") mounting diameter

In the Box:

• VL Flex J1939
• 52mm Mounting SpinLock
• 8 Pole Cable
• Safety Instructions

*Sold as an individual

Specifications:

• Box Set: No
• Gauge Size: 2-1/16"
• Gauge Type: Multifunction
• Series: ViewLine
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 3"H x 3"W x 4"L WT: 0.31 lbs
• UPC: 7640190290008
