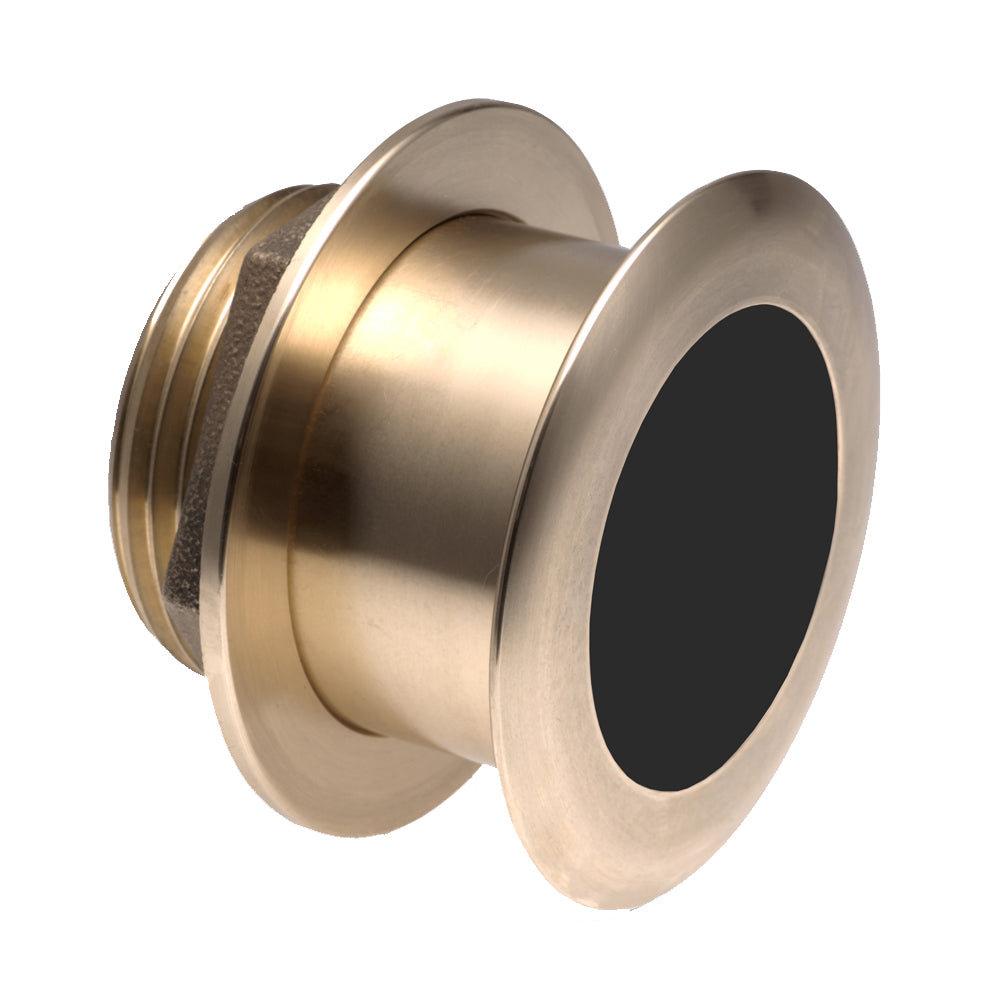

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]

B175H-W 1KW Bronze Thru Hull 20° Tilted Element

Installation: Thru Hull

Material: Urethane

Power (RMS): 1kW

Max Depth(ft): 800

Frequency (KHz): 150-250

Records: Depth and Temperature

Approved Hull Material: Fiberglass / Wood

Cable Length (ft/M): 6ft/2m

Supported deadrise: 16-24° Deadrise

ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: High Wide
• Cable Length (Feet): 6'
• Box Dimensions: 9"H x 10"W x 12"L WT: 9.8 lbs
• UPC: 723193796276
