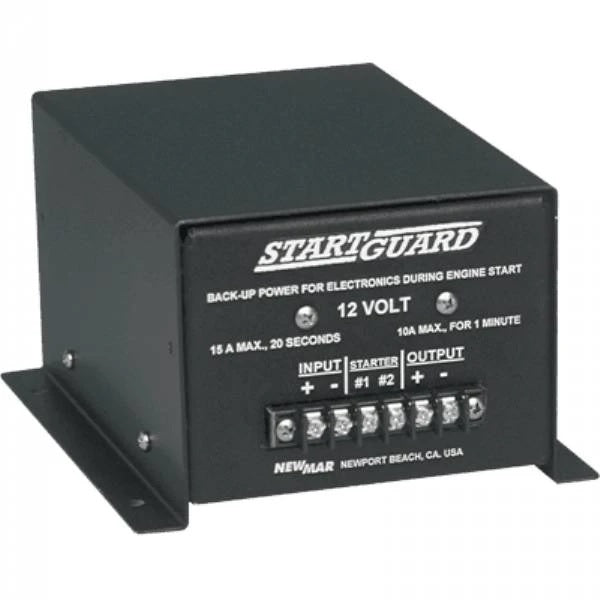

DC UPS: StartGuard

The abrupt DC system voltage drop that accompanies engine starting can cause communication/navigation electronics to "dump" programmed memory.

StartGuard solves this problem by providing supplemental voltage to sensitive electronics while the engine is cranked. It contains a sealed rechargeable battery which is switched on-line to electronics when sensing the starter switch or solenoid is engaged. When the engine is running StartGuard automatically goes off-line and the internal battery is recharged by the alternator.

Specifications

Input Voltage: 13.8 - 14.8 VDC nominal, 15.5 VDC max.

Relay Activation Input Voltage: 7-15 VDC

Output: 20 amps max.

Battery: 12 VDC, sealed rechargeable, 5- 7 year life (typical), 5 amp-hour capacity, Certified by DOT and IATA for shipment by air.

Back-up Capacity (Fully Charged): (See matrix)

Brand: Newmar

UPC: 787524024872

Model Number: NS-12-20

Weight: 7
