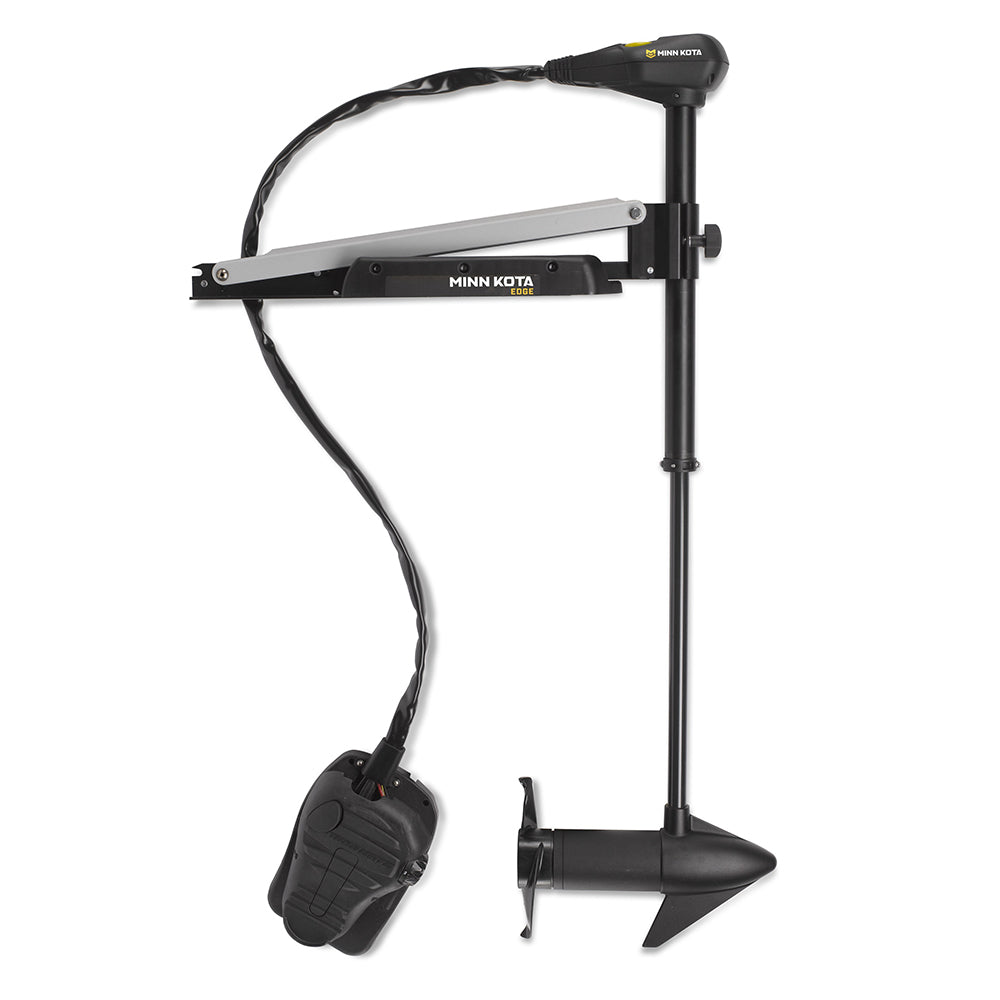

Minn Kota Edge 70 - Latch Door - Foot Control - 24V-70lb-52" [1355971]

Edge 70
Freshwater Bow-Mount
#1355971

Edge lets you step right up to treacherous stump fields, tangled weed beds, or punishing wind and waves. Big challenges like those usually mean bigger fish. And when you've got the unrelenting, rugged construction of Edge - available in foot or hand control models - you've got the power to rise to the occasion.

The updated motor mounts on the Edge motors feature an extruded upper arm made from marine-grade anodized aluminum that is built for years of trouble-free use.

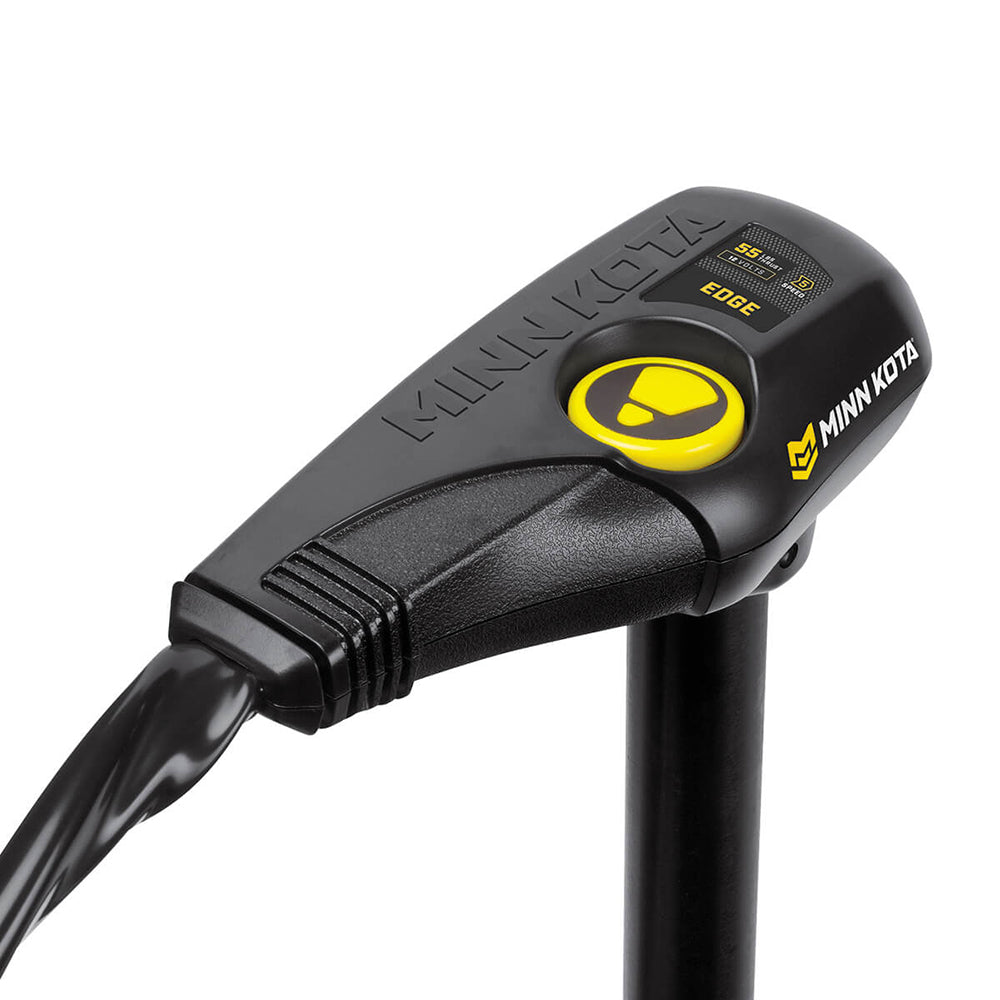

The Edge cable-steer motors feature a redesigned motor head that is constructed of highly impact-resistant, hybrid composite material for unmatched durability. The head also integrates a high-visibility directional indicator. And the ultra-responsive foot pedal is ergonomically designed for precise speed and steering control.

Edge motors also utilize a Latch & Door mounting system for easy removal of the motor for security and storage. Adding to its ruggedness, The Edge has a composite shaft that is guaranteed for life

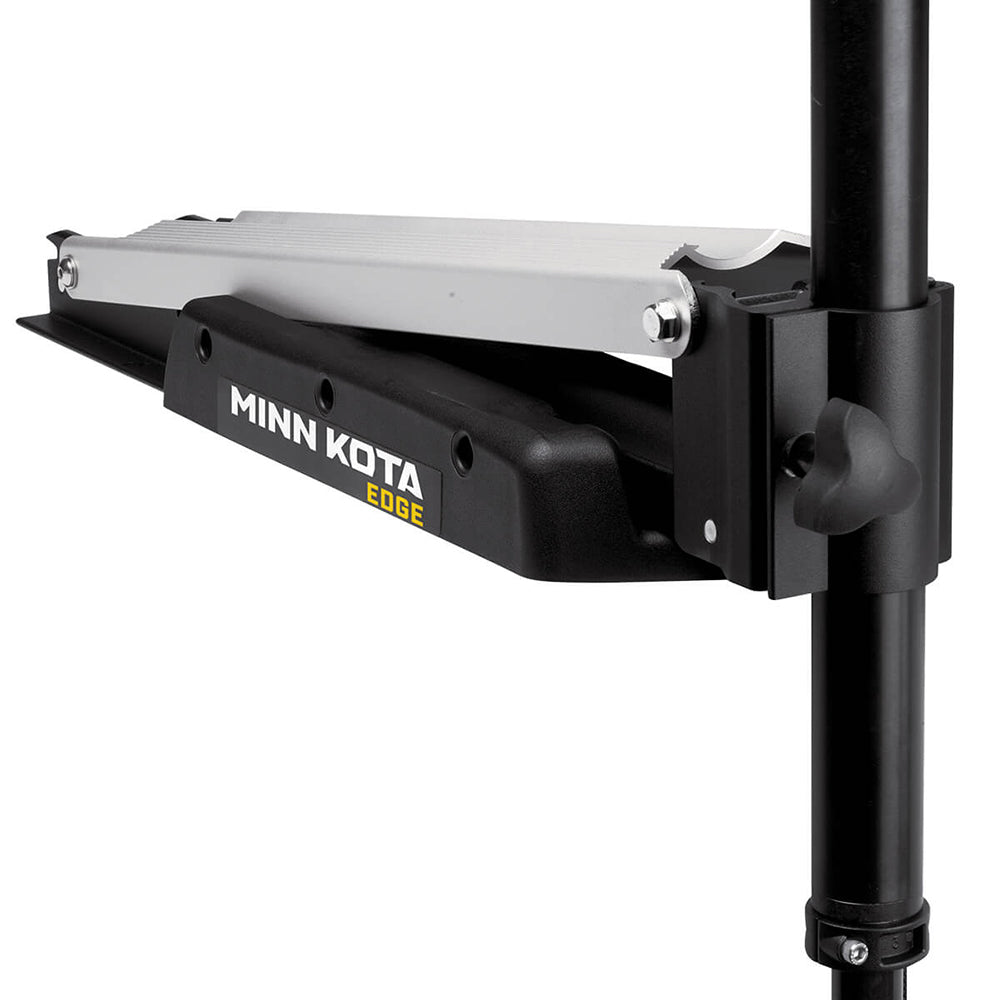

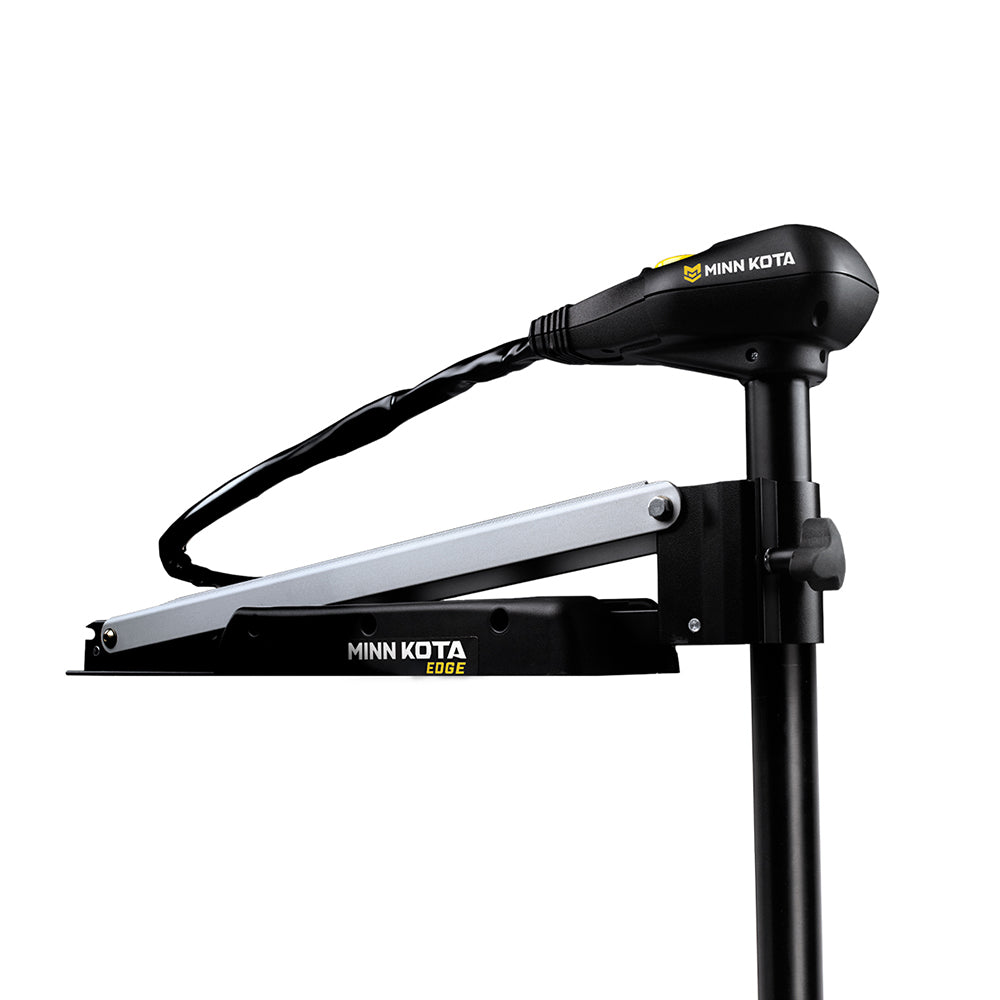

Edge Mount

Features an extruded, anodized aluminum arm that's built with uncompromising strength. It also features rock-solid stowing and a Latch & Door design for easy removal.

Latch & Door Design

Edge's innovative Latch & Door Design makes it easy to remove the motor from the mount. It's perfect for safe and secure storage, and features a soft grip knob.

Directional Indicator - Edge

The easy-to-read directional indicator leaves no doubt about where you're headed. Available on foot control models only.

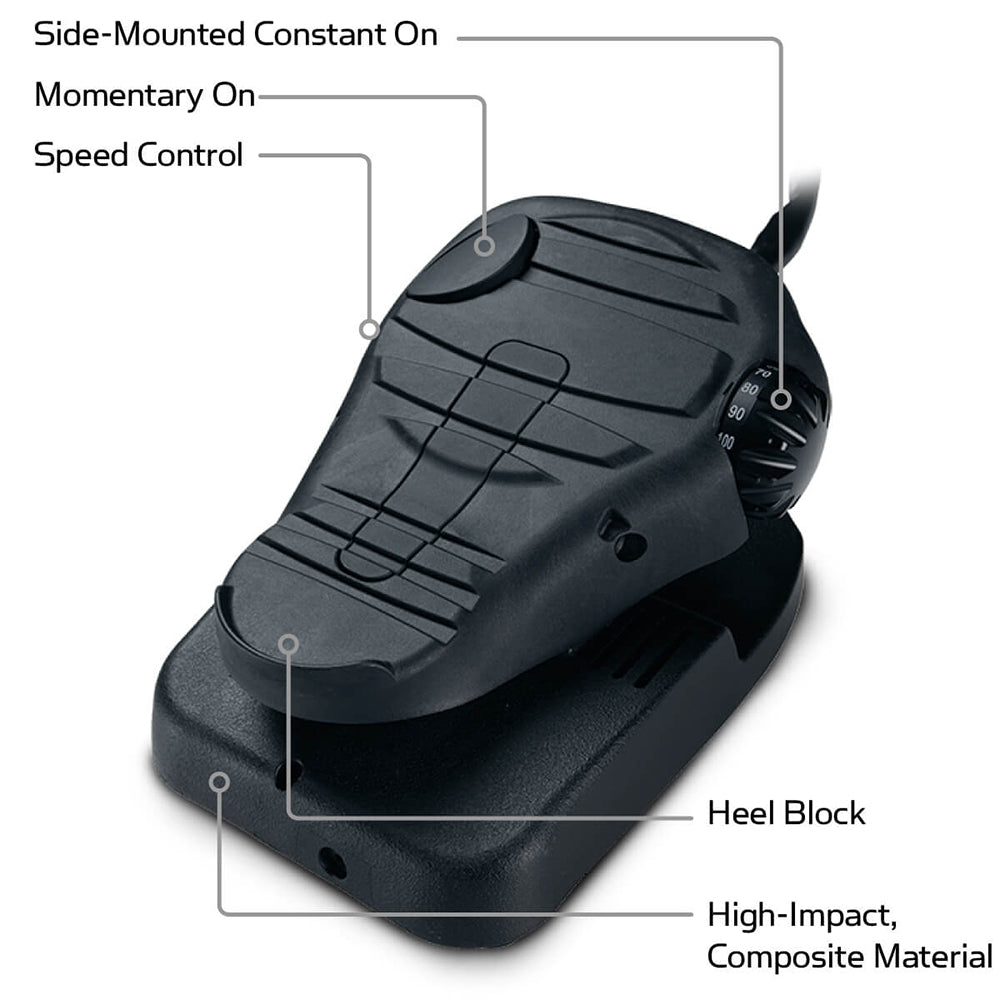

Foot Pedal

Get wired to the water with our ultra-responsive foot pedal. Its new design is easier to operate, with more room for your foot and more exact speed control. Included on select models.

5 Speed

provides five speed settings to easily choose the speed you need for simple, intuitive control that puts you in command.

Cool, Quiet Power

Nothing runs cooler or more quietly than a Minn Kota. Our extra large winding's and commutators dissipate heat, resulting in cooler operation, extended battery power, and longer motor life. And our unique bearing system reduces friction to cut fish-spooking noise. So quiet, they'll never hear you coming.

Propeller

Power Prop: Delivers extra power to help you push through heavy vegetation to get you where the fish are.

Advantage Minn Kota

Indestructible Composite Shaft: Pound for pound, our composite shaft is stronger than steel. It flexes on impact and won’t break, kink or corrode. That’s why we’re confident enough to guarantee it for life.

Cool, Quiet, Power:Nothing runs cooler or quieter than a Minn Kota. Our extra large winding's and commutators dissipate heat, resulting in cooler operation, extended battery power, and longer motor life. And our unique bearing system reduces friction to cut fish-spooking noise.

2-Year Warranty

This motor is backed up with Minn Kota’s two-year warranty.

Included

Edge 70 lb. 52" foot-control motor, MKP-32 Prop, Hold Down Strap and Mounting Hardware

Specifications:

• Control: Cable Steer Foot Pedal
• Volts: 24
• Max Thrust: 70 lbs.
• Shaft Length: 52"
• Speed Control: 5-Speed
• Max. Amp Draw: 42
• Prop: Power Prop (MKP-32)

Specifications:

• Included Propeller: MKP-32
• Autopilot: No
• Control Type: Foot Control
• Mounting Style: Bow
• Salt Water/Fresh Water: Fresh
• Shaft Length (Inches): 52"
• Thrust (Pounds): 70 lbs
• Built-In Transducer: No
• Voltage - Input Range (Volts): 24v
• Series: Edge
• Box Dimensions: 10"H x 21"W x 66"L WT: 58 lbs
• UPC: 029402036356
